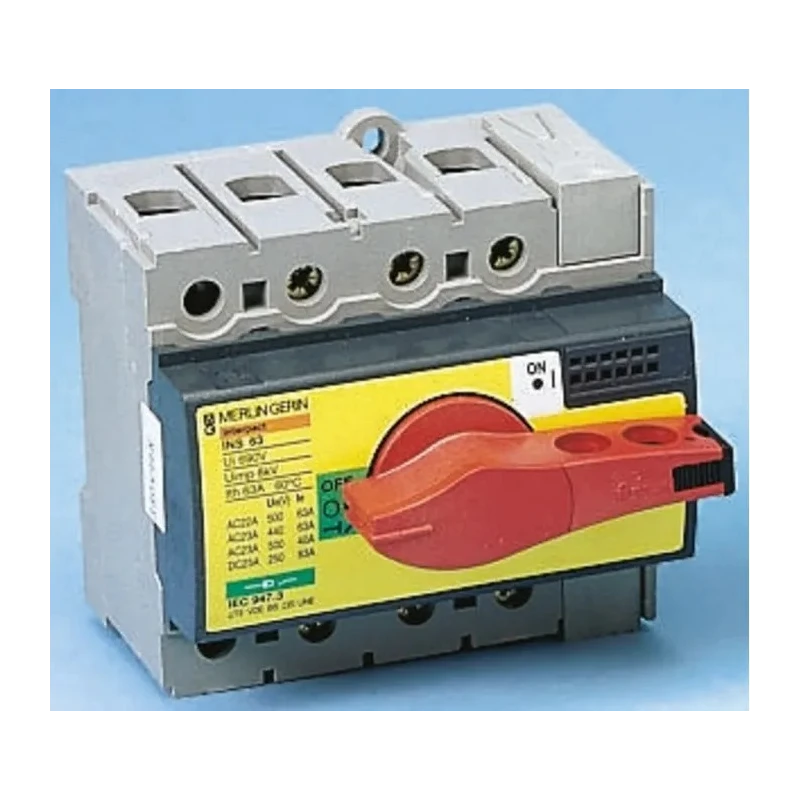

Schneider Electric 4-Pole Surface Isolator Switch ComPacT INS, IP40, 100A, 22 kW, 3-Phase, Surface Mount 28929
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Schneider Electric |
| Length | 135mm |
| Model | 28929 |
| Depth | 62.5mm |
| IP Rating | IP40 |
| Width | 100mm |
| Mount Type | Surface |
| Series | ComPacT INS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Red, Yellow |
| Number of Poles | 4 |
| Standards/Approvals | EU, RoHS |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Better World Claim | Designed for Disassembly |
| Switching Power | 22kW |
| Schneider Electric 4-Pole Surface Isolator Switch -, IP40, 160A, 22 kWBrand | Schneider Electric |
Key Features
- IP40 rating provides protection against solid objects larger than 1 mm and safe operation in dry environments.
- 4 poles support 3-phase electrical installations for industrial and commercial use.
- Surface mount type facilitates easy installation on panels and modular distribution boards.
- Red and yellow handle allows clear visual indication of switch position for safety and operation.
- Rated for a switching current of 100A and power capacity of 22 kW with compliance to IEC and EN standards.
- Supports lockout with 3 padlocks in the off position and locking in the on position to ensure maintenance safety.
- Suitable for motor circuits, machine tools, PLC boxes, and local control on distribution boards.
- Durable screw terminal type provides secure electrical connections with reliable mechanical fastening.
Product Description
Schneider Electric 28929 4-Pole Surface Isolator Switch ComPacT INS model is engineered for safe and efficient isolation of 3-phase electrical circuits up to 100A current and 22 kW power. It features a robust surface mounting design with IP40 ingress protection rating, allowing use in dry commercial and industrial environments.
This isolator switch is equipped with a red and yellow handle for easy visual operation and positive contact indication. It is ideal for installation on modular distribution boards, motor control circuits, machine tools, and PLC enclosures, providing reliable circuit disconnection and isolation for maintenance and safety purposes.
The device has screw type terminals, supporting secure and easy wiring. It operates effectively between temperatures of -25°C to 70°C ensuring versatility across a wide range of ambient conditions. Locking provisions allow up to three padlocks in the off position and locking in the on position for enhanced safety compliance.
Certified to international standards including IEC 947-1 and IEC 947-3 and compliant with EU and RoHS directives, it is designed to support sustainable practices and reliable operation. The ComPacT INS series switches are designed for easy disassembly to facilitate maintenance and recycling.
IP40 enclosure suitable for indoor dry locations. Four poles for comprehensive 3-phase circuit control. Rated switching current of 100A with 22 kW power capacity. Surface mount type for straightforward panel installation.
Lockable handle enhances operational safety. Wide operating temperature range from -25°C to 70°C. Conforms to EU, RoHS standards for quality and environmental compliance. Designed for disassembly to support sustainability initiatives.
This Isolator Switch is well suited for applications in industrial automation, electrical distribution, machine control, and manufacturing environments. Its reliable switching and safety features make it a valuable component in electrical installations requiring strict compliance and robust performance.
Browse our selection of Schneider Electric switch disconnectors and components for more options suited to your technical needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this isolator switch is 100A.
It has a power capacity of 22 kW.
This model has an IP40 rating, providing protection against solid objects larger than 1 mm in dry environments.
The dimensions are 135mm in length, 100mm in width, and 62.5mm in depth.
It uses screw type terminals for secure electrical connections.
The operating temperature range is from -25°C to 70°C.
This isolator switch has 4 poles, supporting 3-phase electrical installations.
It includes locking provisions for up to three padlocks in the off position and can be locked in the on position for safety compliance.
No, this switch is designed for indoor use only, suitable for dry environments due to its IP40 rating.
It complies with IEC 947-1 and IEC 947-3 standards, as well as EU and RoHS directives.
It is suitable for motor circuits, machine tools, PLC boxes, and local control on distribution boards.
The handle color of this model is red and yellow, providing clear visual indication for operation.
