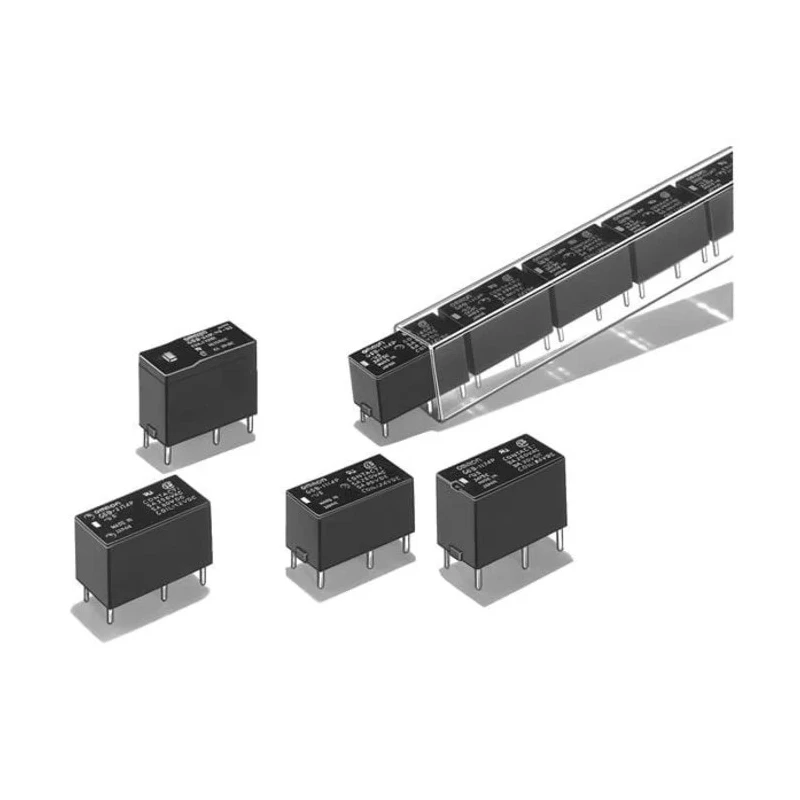

Omron PCB Power Relay, DPST Contact Configuration, 5V DC Coil Voltage, 5A Switching Current, Silver Alloy G6B-2214P-US DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 20mm |
| Model | G6B-2214P-US DC5 |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 83.3Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
Key Features
- The relay features high insulation and fully sealed construction for durability.
- Silver alloy contacts provide cadmium-free, reliable switching.
- Suitable for PCB mounting with solder type terminals.
- Operates within temperature range of -25°C to 70°C.
- Compact dimensions of 20mm length, 11mm width, and 11mm height.
- Coil resistance of 83.3 ohms with a coil power of 200mW.
- Can switch AC voltage up to 380V and DC voltage up to 125V.
- Contact resistance is low at 30mΩ ensuring efficient conduction.
Product Description
Omron G6B-2214P-US DC5 is a PCB power relay featuring DPST contact configuration with a coil voltage of 5V DC and a switching current capacity of 5A. This miniature relay is designed with fully sealed construction and high insulation with dielectric strength of 3000VAC between coil and contacts, ensuring reliable performance in industrial and automation applications.
The relay contacts are made from silver alloy, providing cadmium-free durability and low contact resistance of 30mΩ. It has solder terminal type suitable for PCB mounting and operates between -25°C to 70°C, making it adaptable across various environments.
Its compact size with dimensions 20mm (length) x 11mm (width) x 11mm (height) facilitates easy integration within electronic circuits. It supports switching AC voltages up to 380V and DC voltages up to 125V, providing versatility for power relay uses in electrical, laboratory, manufacturing, and automation systems.
The coil features a resistance of 83.3Ω and power consumption of 200mW resulting in efficient coil operation at 5V DC. This relay complies with RoHS environmental standards and is manufactured in China with a focus on quality and reliability.
The relay features high insulation and fully sealed construction for durability. Silver alloy contacts provide cadmium-free, reliable switching. Suitable for PCB mounting with solder type terminals. Operates within temperature range of -25°C to 70°C.
Compact dimensions of 20mm length, 11mm width, and 11mm height. Coil resistance of 83.3 ohms with a coil power of 200mW. Can switch AC voltage up to 380V and DC voltage up to 125V. Contact resistance is low at 30mΩ ensuring efficient conduction.
Complies with RoHS standards for environmental safety. Designed for efficient power relay applications in electrical and automation systems.
This Omron G6B-2214P-US DC5 power relay is ideal for industrial automation systems, power control circuits, manufacturing, electrical devices, and laboratory setups, enhancing performance and system reliability.
Explore more Power Relays and electrical components at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 5A.
This model operates with a coil voltage of 5V DC.
The relay has compact dimensions of 20mm in length, 11mm in width, and 11mm in height.
It features a DPST (Double Pole Single Throw) contact configuration.
It can switch AC voltage up to 380V and DC voltage up to 125V.
This model uses solder type terminals suitable for PCB mounting.
The contact resistance is low at 30mΩ, ensuring efficient conduction.
The coil resistance is 83.3Ω, and it has a coil power consumption of 200mW.
It operates within a temperature range of -25°C to 70°C.
The contacts are made from silver alloy, providing cadmium-free durability.
Yes, it complies with RoHS environmental standards.
It is manufactured in China.
