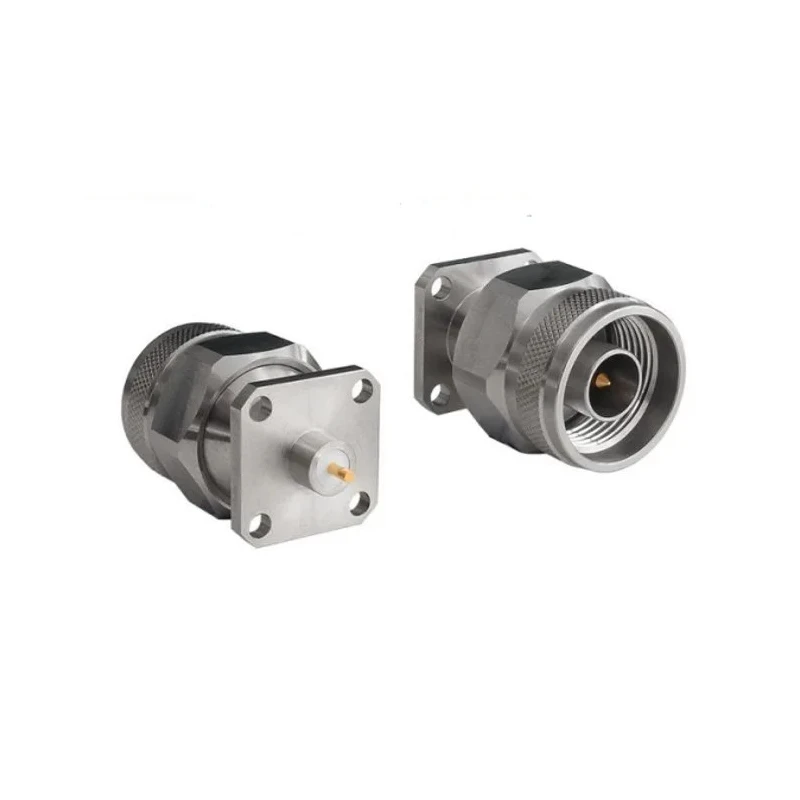

Bulgin N Type Series Coaxial Connector Flange Male Circular Coaxial, 500 Ω, Straight Body Jack Screw RFNA4JGILGIE

Free Delivery in India | Lowest Global Shipping Charges

Bulgin N Type Series Coaxial Connector Flange Male Circular Coaxial, 500 Ω, Straight Body Jack Screw RFNA4JGILGIE

Name: Bulgin N Type Series Coaxial Connector Flange Male Circular Coaxial, 500 Ω, Straight Body Jack Screw RFNA4JGILGIE
Brand: Bulgin
SKU: 405753
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Bulgin Condition New

Specifications

Country of Origin	China
Brand	Bulgin
Orientation	Straight
Model	RFNA4JGILGIE
Mount Type	Flange
Operating Frequency	18GHz
Contact Material	Beryllium Copper Alloy
Series	N Type
Termination Type	Jack Screw
Maximum Operating Temperature	155°C
Cable Type	Coaxial
Minimum Operating Temperature	-55°C
Polarity	Reverse
Impedance	500Ω
Standards/Approvals	RoHS
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	Circular Coaxial
Body Plating	Stainless Steel

Key Features

Features flange mount type for secure installation.
Supports operating frequency up to 18 GHz for high-frequency applications.
Constructed with stainless steel body plating for enhanced durability.
Contact material made from beryllium copper alloy ensuring excellent conductivity.
Operates reliably within temperature range -55°C to 155°C.
Reverse polarity and jack screw termination for reliable signal connection.
Series N Type connector fully compatible for interchangeability.
Complies with RoHS standards ensuring environmental safety.

Product Description

Bulgin RFNA4JGILGIE N Type Series Coaxial Connector Flange Male is a high-performance circular coaxial connector designed for applications requiring excellent radio frequency connections and mechanical reliability. The connector features a flange mount and jack screw termination that provide a secure and robust mechanical interface in RF systems.

Constructed with a stainless steel body plating and a beryllium copper alloy contact, it ensures high durability and excellent electrical conductivity suitable for demanding environments. It supports an impedance of 500 Ω and operates effectively up to frequencies of 18 GHz, making it suitable for high-frequency RF and microwave communication systems.

This connector operates reliably within a wide temperature range from -55°C to 155°C, suitable for harsh industrial and laboratory conditions. The straight body orientation and reverse polarity design enhance its compatibility in various coaxial cable assemblies.

Fully compliant with RoHS standards, this Bulgin N Type connector supports environmental and safety regulations, suitable for global applications. The series is known for its threaded coupling mechanism and full interchangeability among similar type connectors, making it versatile for numerous RF system configurations.

Industry applications include electronic manufacturing, telecommunications, aerospace, military communication equipment, and test and measurement systems where reliable coaxial connectivity is critical.

Features flange mount type for secure installation. Supports operating frequency up to 18 GHz for high-frequency applications. Constructed with stainless steel body plating for enhanced durability. Contact material made from beryllium copper alloy ensuring excellent conductivity.

Operates reliably within temperature range -55°C to 155°C. Reverse polarity and jack screw termination for reliable signal connection. Series N Type connector fully compatible for interchangeability. Complies with RoHS standards ensuring environmental safety.

Explore the full range of Bulgin coaxial connectors and adaptors in EnvMart for your electronic component needs.

Explore more products in our Electronic Components, Power & Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating frequency of this coaxial connector is 18 GHz, making it suitable for high-frequency applications.

This model features a flange mount type for secure installation in various applications.

The connector is constructed with a stainless steel body plating and features contacts made from beryllium copper alloy, ensuring excellent conductivity.

This N Type connector has an impedance rating of 500 Ω, suitable for RF applications.

The jack screw termination type provides a reliable signal connection, enhancing the mechanical stability of the connector in RF systems.

Yes, this connector complies with RoHS standards, ensuring it meets environmental safety regulations.

This connector is compatible with coaxial cables, suitable for various RF applications.

The design orientation of this connector is straight, facilitating easy integration into existing systems.

This coaxial connector is suitable for applications in electronic manufacturing, telecommunications, aerospace, military communication equipment, and test and measurement systems.

The contact gender of this connector is male, which is typical for coaxial connections.
