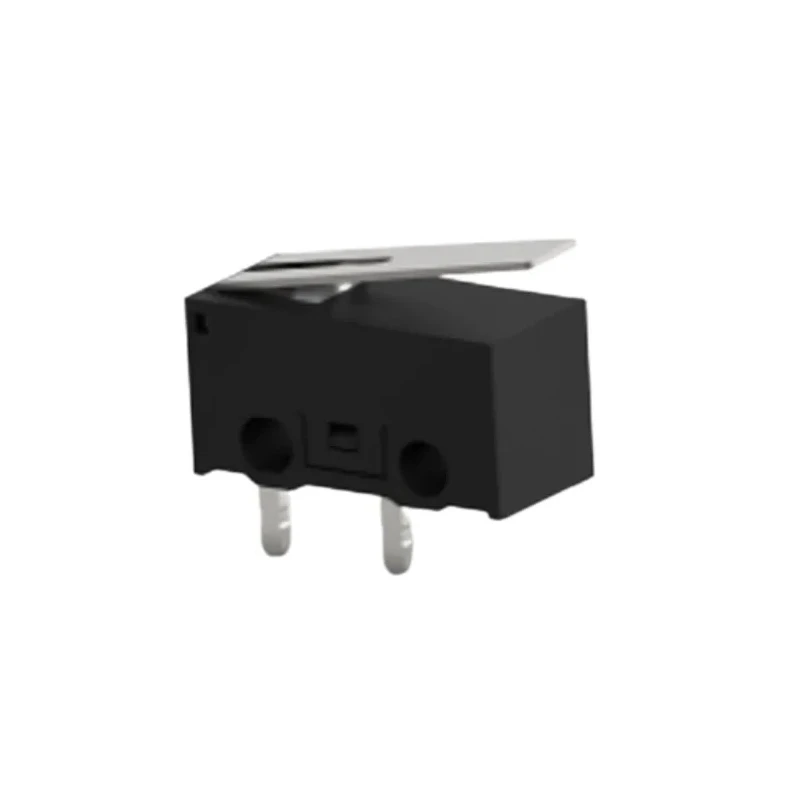

TE Connectivity Lever Snap Action Miniature Micro Switch, PCB Terminal, 0.1A, SPST, Model SAJ101XHL0N74SNOPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XHL0N74SNOPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Rated switch contact current of 0.1A ensuring low power switching capability.
- Lever actuator type enables precise mechanical triggering.
- PCB terminal design allows for easy mounting on printed circuit boards.
- SPST contact configuration provides single-pole single-throw switching.
- Wide operating temperature range from -25°C to 75°C for versatile environments.
- Mechanical life rated at 1,000,000 cycles for high reliability.
- Miniature size conforms dimensionally with popular industry standards.
- RoHS compliant ensuring environmental safety standards.
Product Description
TE Connectivity SAJ101XHL0N74SNOPTQ is a lever snap action miniature micro switch designed for converting mechanical actuation into electrical signals with precision. Featuring a PCB terminal type and SPST contact configuration rated at 0.1A, this micro switch is ideal for applications in home appliances, consumer electronics, factory automation, and other domestic as well as industrial uses.
Its lever actuator provides easy and accurate mechanical triggering, and the miniature dimensions align with standard industry sizes, ensuring compatibility with existing designs. The PCB terminal model is resistant to flux, enhancing long-term reliability on circuit boards.
The micro switch operates efficiently within a temperature range of -25°C up to 75°C, making it suitable for diverse environmental conditions. It boasts a mechanical life of one million cycles, which underscores its durability for high-cycle applications. The product meets RoHS standards, guaranteeing compliance with hazardous substances regulations.
Applications span a wide range of industries including industrial automation, manufacturing, electrical controls, HVAC systems, and consumer electronic devices. Its compact size and performance capabilities make it a reliable choice for critical switching needs.
Rated switch contact current of 0.1A ensuring low power switching capability. Lever actuator type enables precise mechanical triggering. PCB terminal design allows for easy mounting on printed circuit boards. SPST contact configuration provides single-pole single-throw switching.
Wide operating temperature range from -25°C to 75°C for versatile environments. Mechanical life rated at 1,000,000 cycles for high reliability. Miniature size conforms dimensionally with popular industry standards. RoHS compliant ensuring environmental safety standards.
Choose TE Connectivity Micro Switches from EnvMart for high-quality, dependable switching components essential for your electronic and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single-Pole Single-Throw) contact configuration, allowing for basic on/off switching functionality.
It has a rated switch contact current of 0.1A, which ensures low power switching capability.
The operating temperature range is from -25°C to 75°C, making it suitable for various environmental conditions.
The mechanical life of this switch is rated at 1,000,000 cycles, indicating its reliability for high-cycle applications.
It uses a lever actuator type, which enables precise mechanical triggering for accurate operation.
This model features a PCB terminal design, allowing for easy mounting on printed circuit boards.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards regarding hazardous substances.
The operating force for this model is 0.75N, which is necessary for actuation.
This model is classified as a miniature micro switch, conforming to popular industry dimensions.
It is suitable for applications in home appliances, consumer electronics, factory automation, and various industrial uses.
The country of origin for this micro switch is China.
This model belongs to the SAJ1 series of micro switches from TE Connectivity.
