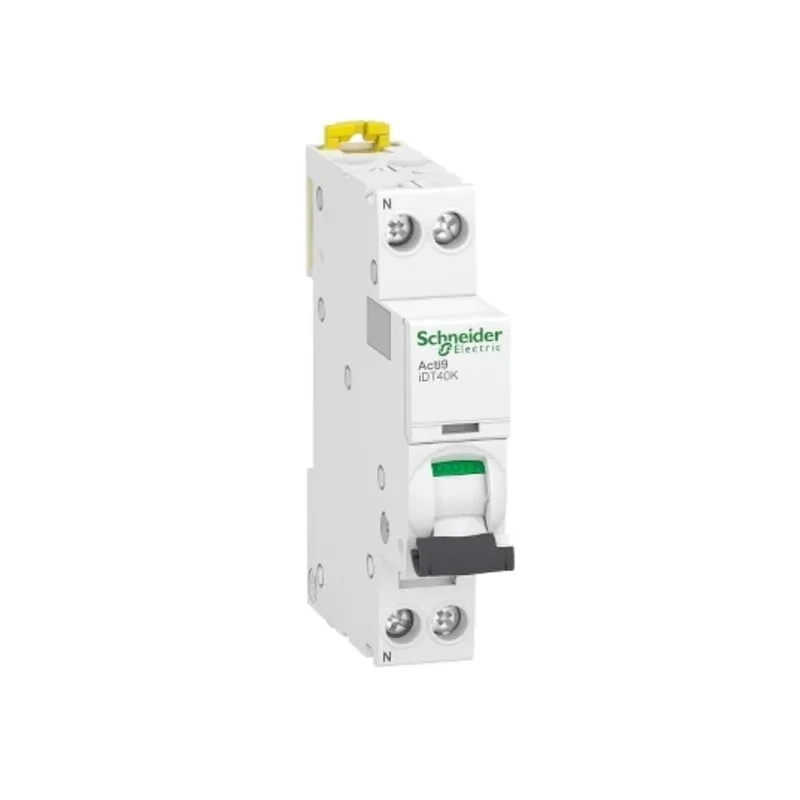

Schneider Electric Acti9 iDT40K Miniature Circuit Breaker, 1-Pole, 20A, Type C, 230V AC, 4500A Breaking Capacity A9P71620

Schneider Electric A9P71620 Miniature Circuit Breaker from the Acti9 iDT40K series is designed for effective protection of electrical circuits in residential, commercial, and industrial environments. This 1-pole breaker has a current rating of 20A and operates at 230V AC voltage, offering a breaking capacity of 4500A to guard against short circuits and overloads.

Equipped with a thermal magnetic tripping mechanism, this device ensures quick and reliable intervention during fault conditions. Its compact footprint with dimensions of 85 mm in height, 18 mm width, and 74 mm depth allows for easy installation on standard DIN rails in electrical panels.

The toggle switch actuator provides visual ON/OFF status and trip indication, enhancing operational safety and convenience. The breaker features Type C tripping characteristics, making it suitable for general-purpose applications where moderate inrush currents occur.

Manufactured in France, this miniature circuit breaker complies with rigorous international safety standards including EN/IEC 60898-1 and EN/IEC 60947-2. Its robust construction includes tunnel-type terminals ensuring secure and reliable wiring connections.

The device boasts an electrical durability of 20,000 mechanical and electrical cycles, ensuring reliability and longevity in demanding environments. With an impulse withstand voltage of 4 kV, it is resilient against transient overvoltages in electrical networks.

The operational ambient range from -25 to 70 °C allows deployment in a wide variety of climatic conditions. Additionally, this MCB is padlockable, offering enhanced safety by preventing unauthorized switching.

Features thermal magnetic tripping mechanism for overload and short circuit protection. Compact DIN rail mounting with dimensions 85mm height, 18mm width, and 74mm depth. Toggle switch actuator with ON/OFF and trip indicators.

Type C tripping characteristic suitable for general applications. Compliant with EN/IEC 60898-1 and EN/IEC 60947-2 standards. Constructed with tunnel terminal types ensuring secure connections. Electrical durability rated at 20,000 cycles for long-lasting performance.

Impulse withstand voltage of 4 kV supports industrial robustness. Operational ambient temperature range from -25 to 70 °C. Padlockable design for enhanced safety in electrical installations.

This Miniature Circuit Breaker is widely used in industrial, commercial, and residential electrical installations for circuit protection and safety compliance. Explore more Schneider Electric products and comprehensive electronics components at EnvMart for all your electrical system needs.
