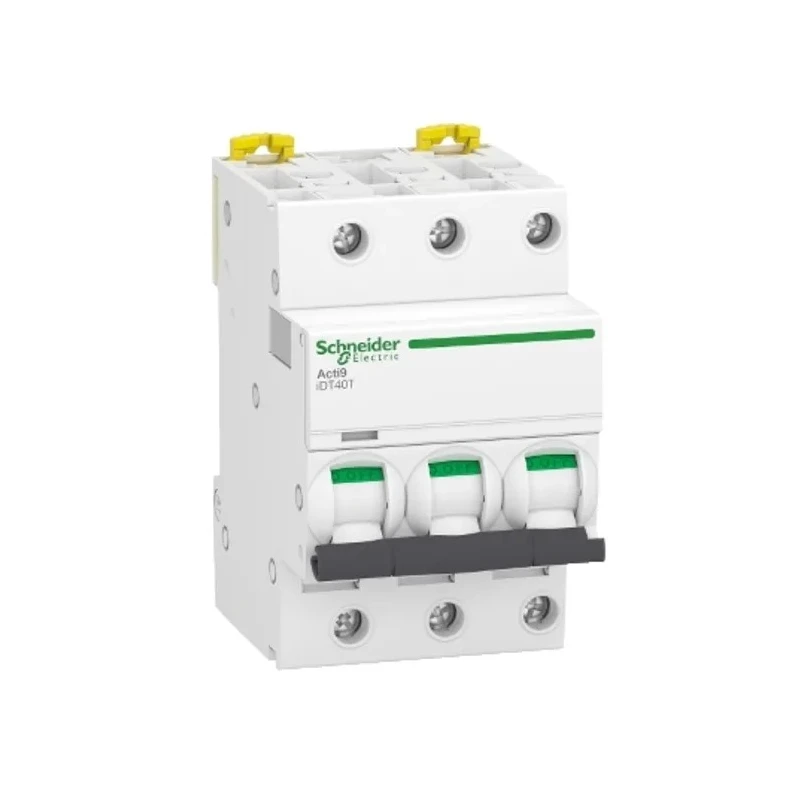

Schneider Electric Acti9 Acti9 iDT40 Miniature Circuit Breaker 3-Pole 10A Type C 400V AC 4500A Breaking Capacity A9P22310

Schneider Electric A9P22310 Acti9 iDT40 Miniature Circuit Breaker is a high-performance circuit protective device rated for 10A current and 400V AC voltage operation. Featuring a robust 3-pole construction, this breaker offers enhanced multi-phase circuit protection suitable for industrial and commercial electrical installations.

The thermal magnetic trip unit technology enables precise disengagement under overload or short circuit conditions, ensuring safety against electrical faults. With a breaking capacity of 4500 A, this breaker can safely interrupt substantial fault currents without damage.

Mounting is simplified by the clip-on mechanism, facilitating quick panel integration. The toggle switch reset actuator provides intuitive ON/OFF control and trip indication, supporting easy maintenance and monitoring.

This product meets rigorous international standards EN/IEC 60898-1 and EN/IEC 60947-2, guaranteeing compliance for global electrical systems. Its compact size (85mm height, 54mm width, 74mm depth) allows efficient use of enclosure space while maintaining clear labeling interfaces.

Built to withstand electrical stresses with an impulse voltage rating of 4 kV and featuring an IP20 ingress protection rating, this breaker is well-suited for indoor environments requiring dependable protection.

Designed to operate reliably in a wide ambient temperature range from -25°C to 70°C, it is suitable for diverse industrial and commercial applications. The padlockable feature enhances safety by allowing secure circuit isolation during maintenance or emergencies.

Features thermal magnetic trip mechanism for protection against overload and short circuits. Rated current of 10 amperes suitable for moderate electrical loads. 3-pole design supports multi-phase electrical systems. Mounts easily via clip-on mounting type ensuring quick installation.

Conforms to EN/IEC 60898-1 and EN/IEC 60947-2 standards for safety and reliability. Compact dimensions of 85mm height, 54mm width, and 74mm depth save panel space. Provides IP20 ingress protection rating for safe indoor applications.

Toggle switch reset actuator with clear ON/OFF and trip indication status. Impulse withstand voltage rating of 4 kV for electrical stress endurance. Designed for ambient operating temperatures from -25°C to 70°C. Padlockable feature offers added safety and control.

This Miniature Circuit Breaker is ideal for applications in industrial, commercial, and electrical control panels requiring reliable circuit protection. It is part of the Schneider Electric Acti9 series known for quality and durability.
