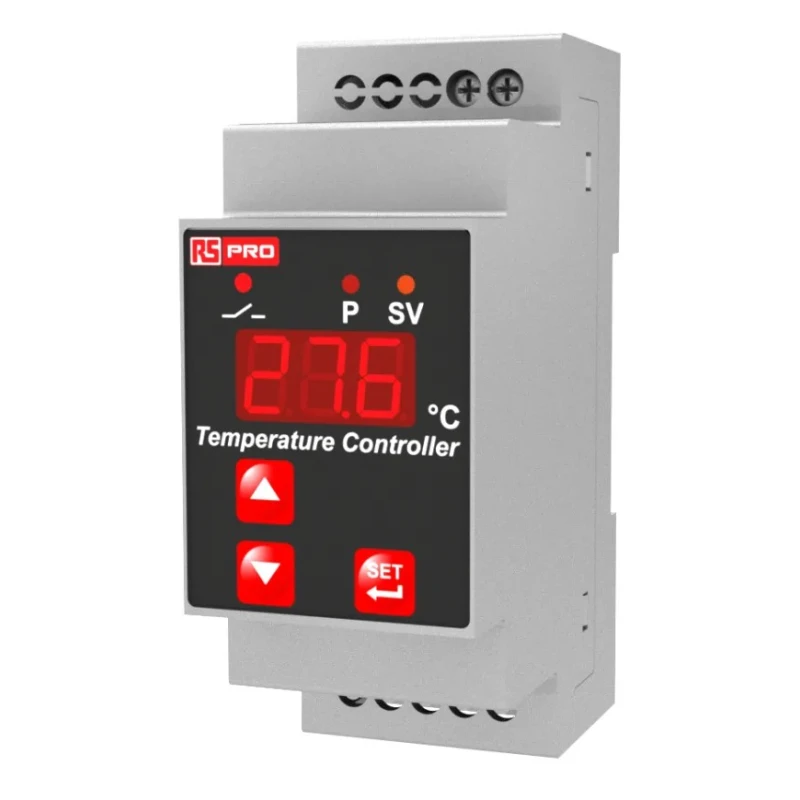

RS PRO DIN Rail On-Off Temperature Controller Relay Output 1 Input 1 Output K Type Thermocouple 24V 5A 86mm x 35mm 222-8119
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Dimensions | 86 mm x 35 mm |
| Length | 86mm |
| Model | 222-8119 |
| IP Rating | IP65 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Number of inputs | 1 |
| Output type | Relay |
| Series | RS PRO |
| Input Type | K Type Thermocouple |
| Maximum Operating Temperature | 50°C |
| Control Type | On-Off |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 5A |
| Number of outputs | 1 |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 24V |
| K type thermocouple, 24 V (- 15%, + 10%) 50/60 Hz RS stock no | 222-8119 |
| K type thermocouple, 230V (- 15%, + 10%) 50/60 Hz RS stock no | 222-8121 |
| 2-Wire PT100, 24V (- 15%, + 10%) 50/60 Hz RS stock no | 222-8120 |
Key Features
- Equipped with a K Type Thermocouple input for accurate temperature sensing.
- Supports a maximum supply voltage of 24V with a current rating of 5A.
- Compact dimensions of 86mm length and 35mm width with IP65 protection rating.
- Offers selectable heating or cooling control modes with an adjustable temperature offset.
- Features LED display, password protection, and compressor operation modes for enhanced usability.
- Designed for DIN Rail mounting, ensuring easy installation in industrial panels.
- Operates reliably between 0°C to 50°C ambient temperature range.
- Complies with CE standards assuring quality and safety.
Product Description
RS PRO 222-8119 DIN Rail On-Off Temperature Controller is a digital temperature control device featuring 1 input and 1 relay output designed for precise temperature regulation in industrial and commercial applications. Operating at 24V supply voltage and capable of switching currents up to 5A, it is optimized for use with K Type Thermocouple sensors to provide accurate temperature measurement within an operating range of 0°C to 50°C. The controller includes an LED display and supports selectable heating and cooling functions making it highly versatile.
The compact form factor with dimensions 86mm x 35mm and IP65 rating ensures protection against dust and water ingress, permitting installation in diverse environments. The device mounts easily on standard DIN rails commonly found in control panels, streamlining integration. Advanced features include adjustable temperature offset, password protection for programming modes, and compressor protection delays, enhancing operational reliability.
This temperature controller conforms to CE standards, reflecting adherence to international quality and safety norms. It is a trusted solution for temperature management in HVAC systems, ovens, incubators, automotive setups, and storage facilities, providing robust on/off temperature control. Its built-in hysteresis function prevents rapid cycling, thereby prolonging equipment life.
Equipped with a K Type Thermocouple input for precise temperature sensing. Supports single relay output for robust on/off control. Adjustable temperature offset enhances control accuracy. Selectable heating or cooling modes provide operational flexibility.
LED display for clear parameter indication. Password protected programming secures settings. Compressor protection ensures device longevity. Compact design suitable for DIN Rail mounting. IP65 rated enclosure for dust and water resistance.
Certified to CE standards for quality assurance.
Set your temperature control needs with confidence using the RS PRO 222-8119, designed to deliver consistent and reliable performance in demanding industrial and commercial environments. Browse more Temperature Controllers and RS PRO series products on EnvMart to find the perfect solution for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 24V.
It is equipped with a K Type Thermocouple input for accurate temperature sensing.
This temperature controller has a current rating of 5A for the relay output.
The dimensions of this unit are 86mm in length and 35mm in width.
It operates reliably between 0°C to 50°C ambient temperature range.
It is designed for DIN Rail mounting, ensuring easy installation in industrial panels.
This model features an LED display for clear parameter indication.
Yes, it supports selectable heating or cooling control modes.
The unit has an IP65 rating, providing protection against dust and water ingress.
It complies with CE standards, assuring quality and safety.
It includes features such as adjustable temperature offset, password protection, and compressor protection delays.
