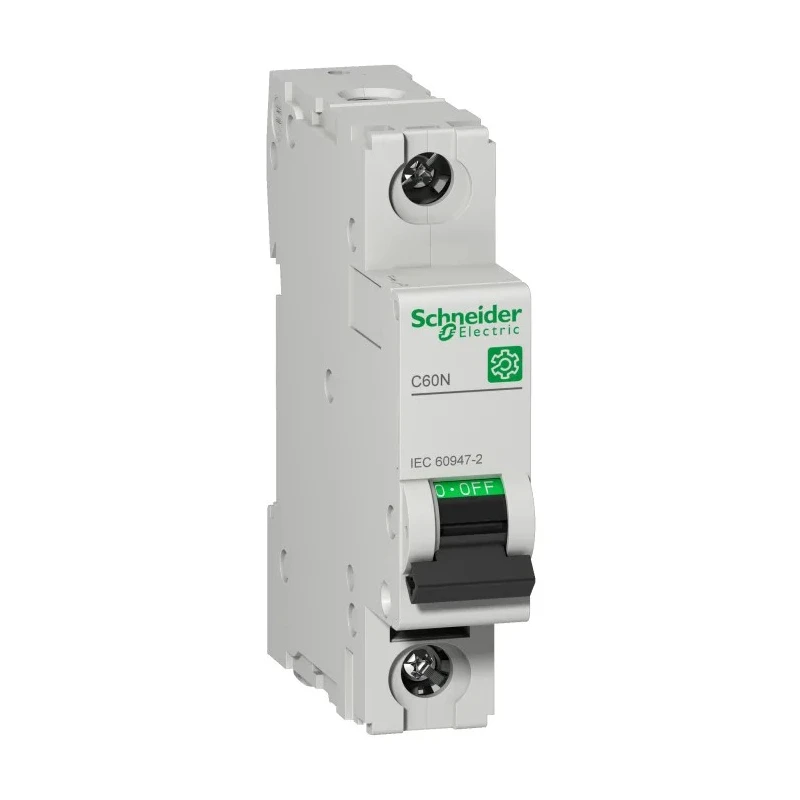

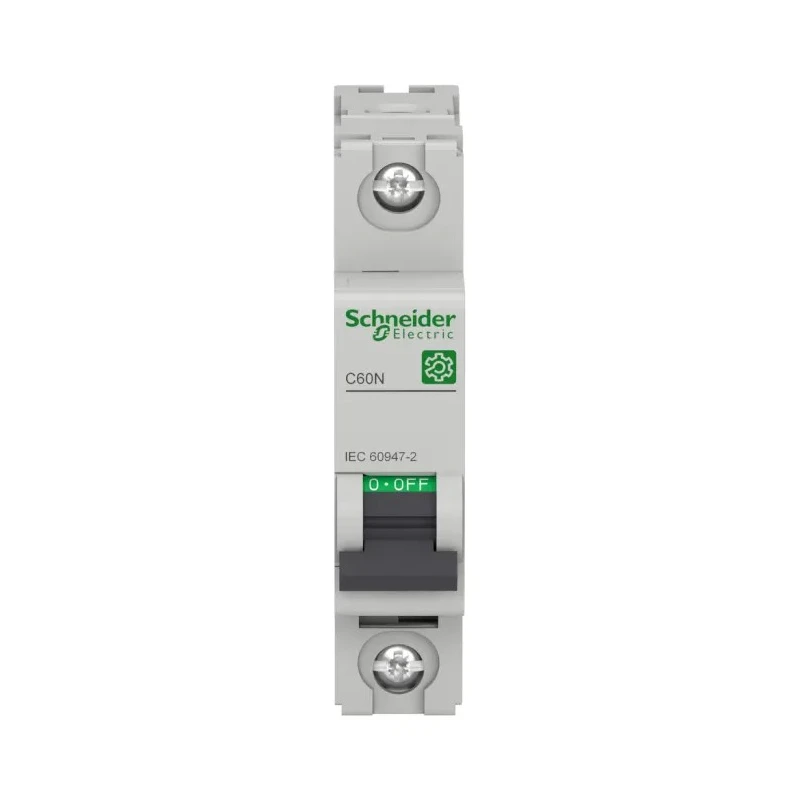

Schneider Electric Multi9 C60N Miniature Circuit Breaker, 1-Pole, 6A, Type C, 240V AC, 72V DC, 10kA Breaking M9F11106

Schneider Electric M9F11106 Multi9 C60N Miniature Circuit Breaker is a state-of-the-art 1-pole circuit breaker designed for low voltage applications requiring high safety and reliability. This model features a 6A rated current and Type C tripping characteristics, suitable for protecting electrical circuits in residential, commercial, and industrial installations.

The device operates at both alternating current (240V AC) and direct current (72V DC) voltages, making it highly versatile. It offers a breaking capacity of 10kA, ensuring protection against severe short circuit conditions. Its thermal magnetic tripping mechanism improves operational accuracy and responsive overload protection, contributing to enhanced system security.

This Miniature Circuit Breaker complies with both EN/IEC 60898-1 (residential) and EN/IEC 60947-2 (industrial) standards, confirming its rigorous quality and safety benchmarks. Its compact dimensions (18mm width, 81mm height, 72mm depth) and clip-on mount type enable easy integration on standard DIN rails, optimizing space in distribution boards.

With an IP20 rating on terminals, the device is protected against solid foreign objects, further ensuring operator safety and equipment reliability. Designed for OEMs and control panel builders, it offers an electrical endurance of up to 10,000 cycles and mechanical endurance up to 20,000 cycles, ensuring long service life under demanding conditions.

Rated current of 6A providing reliable overload protection. Type C tripping curve for effective fault response. Supports both 240V AC and 72V DC voltages enhancing application versatility. Breaking capacity of 10kA ensures safety during short circuits.

Compact clip-on mount design suitable for DIN rail installations. Thermal magnetic tripping mechanism delivers accurate performance. Dimensions of 18mm width, 81mm height, and 72mm depth for space-saving integration. IP20 protection on terminals for safe operation.

Complies with EN/IEC 60898-1 and EN/IEC 60947-2 standards. Manufactured in Bulgaria with high mechanical and electrical endurance.

This circuit breaker is ideal for electrical networks requiring dependable protection such as distribution boards, automation equipment, residential homes, commercial buildings, and industrial machinery. Its high breaking capacity and dual AC/DC capability make it a versatile and safe choice for various electrical applications.
