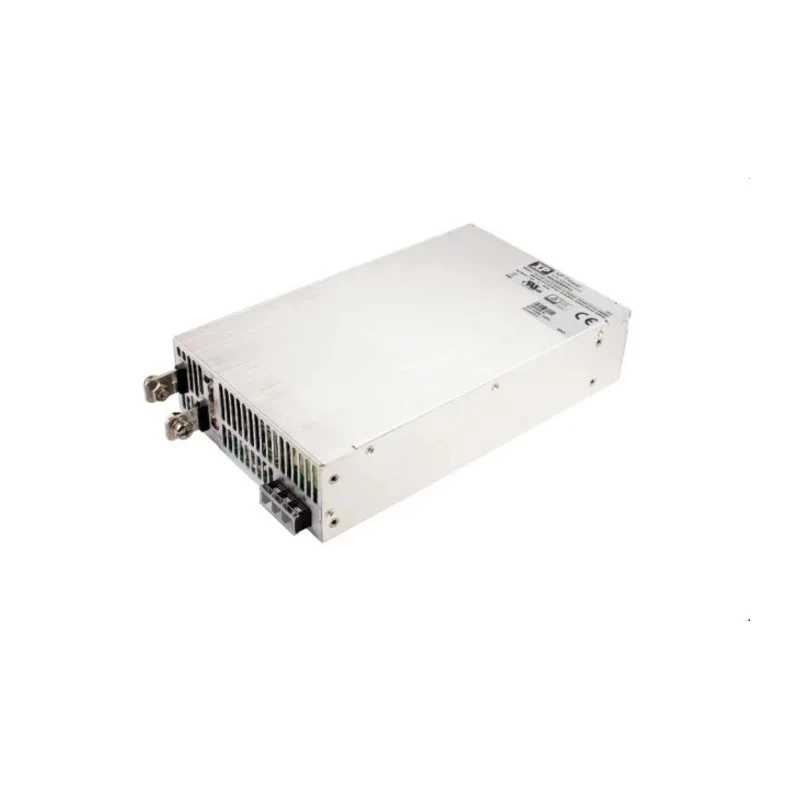

XP Power High Efficiency 2.4kW Chassis Mount Switching Power Supply 60V Output HDL3000PS15

XP Power HDL3000PS15 is a high power density switching power supply designed for industrial and electronic applications requiring precise voltage and current control. Delivering a continuous output power of 2.4kW at a maximum output voltage of 60V, it features a chassis mount form factor measuring 170mm in length, 12.48mm depth, and 2.52mm width. Its compact size and high efficiency of 89% make it suitable for demanding power electronics systems requiring reliable, efficient power delivery.

This power supply supports programmable output voltage and current settings ranging from 0 to 105%, configurable via resistance, voltage input or I2C bus, affording excellent control flexibility. Additional functionalities include active current sharing enabling parallel operation to scale power output, remote on/off control for efficient power management, remote sense to compensate for voltage drops, and a power OK signal for system monitoring.

Standby power options are selectable between 5 V at 0.5 A or 9 V at 0.3 A to supply auxiliary circuits when main power is present. It is rated for operation from -20°C up to 60°C ambient temperature, ensuring robust performance in varied industrial environments.

The HDL3000PS15 complies with safety and quality certifications including CAN/CSA C22.2 No.62368-1-14, EN 62368-1: 2014/A11: 2017, IEC 62368-1: 2014, and UL 62368-1, demonstrating adherence to international standards for electronic power supplies.

With a single output channel delivering a maximum of 160 A, and input voltage ranging from 90 V AC to 264 V AC, this switching power supply is ideal for laboratory, industrial, manufacturing, and electronic assembly applications requiring stable and programmable power solutions.

The chassis mount design allows easy integration in electronic systems. Operates efficiently with 89% energy efficiency for optimal performance. Equipped with programmable output voltage and current from 0 to 105%. Supports active current sharing and parallel operation for scalability.

Features remote on/off, remote sense, and power OK signal for control and monitoring. Standby output selectable at 5V/0.5A or 9V/0.3A ensures continuous auxiliary power. Wide operating temperature range from -20°C to 60°C for tough environments.

Meets multiple international safety standards including UL, IEC, and CAN/CSA. Explore the Electronics & Electrical category on EnvMart for more high-quality power supplies by XP Power and other trusted brands.
