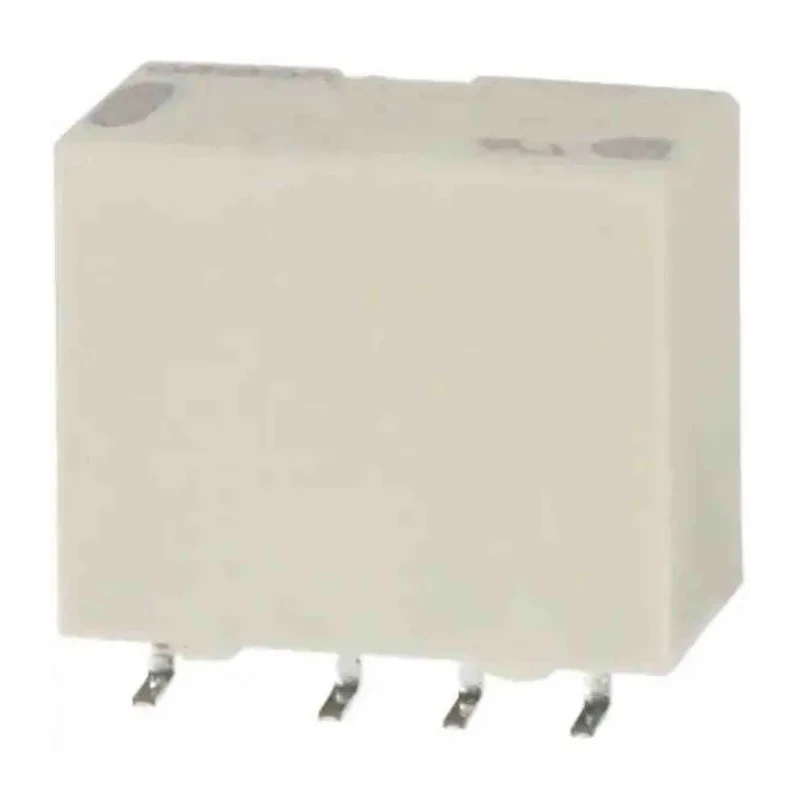

Omron Surface Signal Relay 5V DC Coil 1A DPDT G6J-2FS-Y-TR DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9mm |
| Length | 10.6mm |
| Model | G6J-2FS-Y-TR DC5 |
| Width | 5.7mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 173Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
Key Features
- Surface mount type relay with gold plated contacts for enhanced conductivity.
- Suitable for switching AC voltage up to 125V and DC voltage up to 110V.
- Designed for operation within -40°C to 85°C ambient temperature range.
- Low contact resistance of 100mΩ ensures efficient signal transmission.
- Coil power of 140mW offers energy saving with single winding latching functionality.
- Compact dimensions of 10.6mm length, 5.7mm width, and 9mm height allow use in space-constrained applications.
- Built compliant with RoHS standards ensuring environmental safety.
- Coil resistance measured at 173Ω provides reliable coil performance.
Product Description
Omron G6J-2FS-Y-TR DC5 surface signal relay is designed for precise, reliable switching in electronic and electrical circuits. Featuring a coil voltage of 5V DC and a switching current of 1A with Double Pole Double Throw (DPDT) contact configuration, this relay supports switching AC voltage up to 125V and DC voltage up to 110V. It is surface mount type with a compact size of 10.6mm length, 5.7mm width, and 9mm height, suitable for high density mounting on printed circuit boards.
This relay utilizes gold plated contacts, ensuring low contact resistance of 100mΩ for superior electrical performance and longer service life. The coil resistance of 173Ω and coil power consumption of 140mW contribute to energy-efficient operation, coupled with a single winding latching mechanism that conserves power further.
Operating reliably under a wide ambient temperature range from -40°C to 85°C, it meets RoHS compliance standards emphasizing environmental friendliness and industry acceptance. The relay withstands high dielectric strength of 1500 VAC and impulse withstand voltage of 2500 V, providing robust insulation and reliability in industrial environments.
This signal relay is ideal for use in automation systems, electrical control circuits, industrial signal conditioning, and other applications demanding compact size and reliable switching performance.
The product is manufactured in China and aligns with quality and safety certifications relevant to electronic components. Surface mount relay with compact dimensions for space-saving PCB design. Energy-efficient single winding latching type coil.
Gold plated bifurcated crossbar contacts for durability and low resistance. Wide operating temperature range suitable for harsh environments. Complies with RoHS standards ensuring environmentally safe manufacturing. Explore a wide range of Signal Relays and electrical components at EnvMart for your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It can switch AC voltage up to 125V and DC voltage up to 110V.
The contact configuration is Double Pole Double Throw (DPDT).
The dimensions are 10.6mm in length, 5.7mm in width, and 9mm in height.
The contact resistance is 100mΩ, which ensures efficient signal transmission.
It operates reliably within a temperature range of -40°C to 85°C.
The coil power consumption is 140mW.
Yes, it complies with RoHS standards, emphasizing environmental safety.
The coil resistance is measured at 173Ω.
This relay uses surface mount technology.
The contacts are made of gold plated material for enhanced conductivity.
It is suitable for automation systems, electrical control circuits, and industrial signal conditioning.
