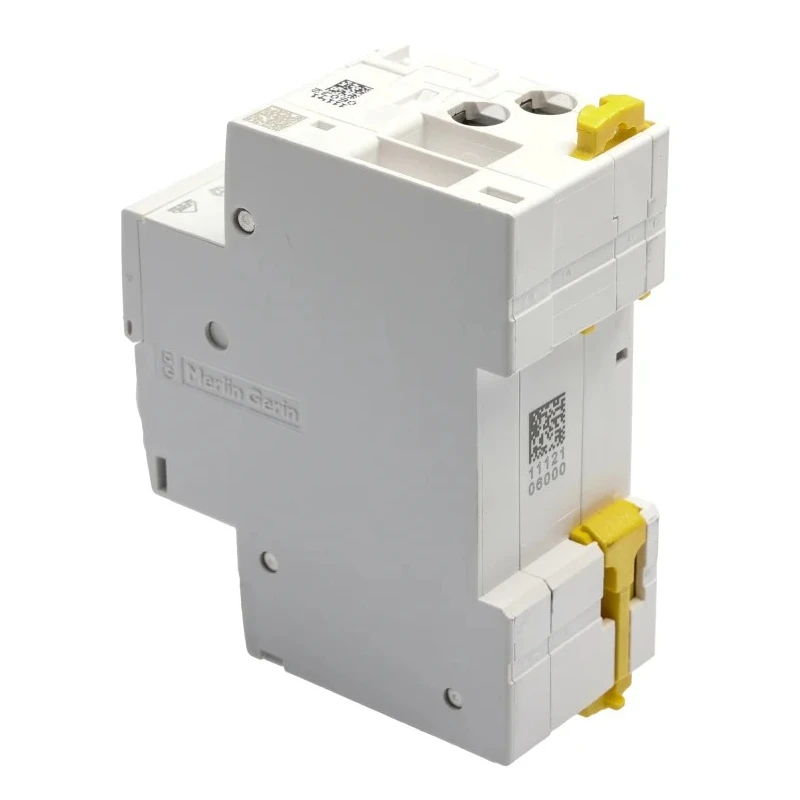

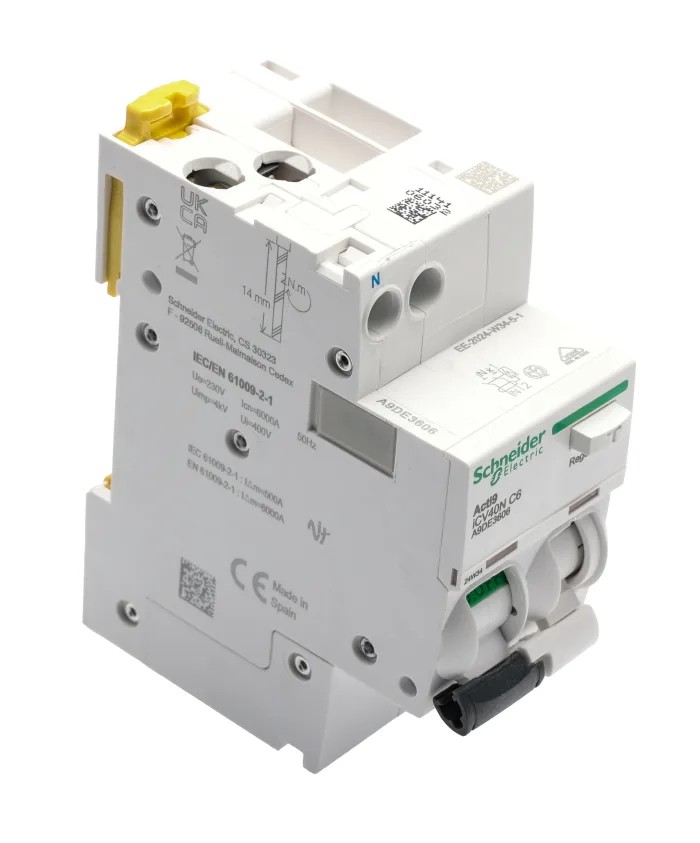

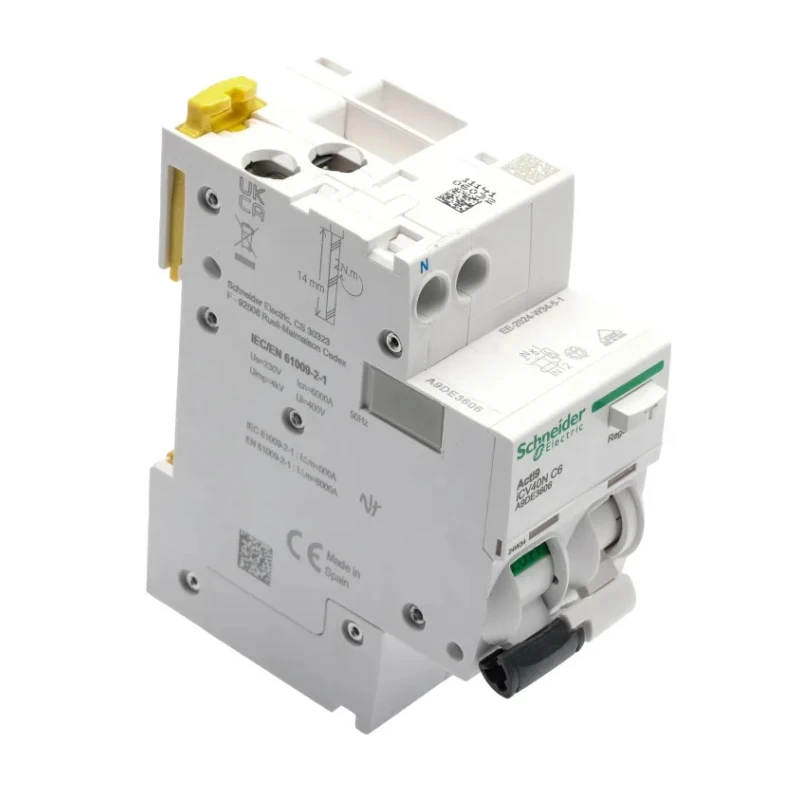

Schneider Electric Residual Current Circuit Breaker with Overload Protection 6A Current Rating 1-Pole 30mA Trip A9DE3606

Schneider Electric A9DE3606 Residual Current Circuit Breaker with Overload Protection delivers effective electrical safety by integrating residual current and overcurrent protection technologies. It supports a current rating of 6A and a trip sensitivity of 30mA, ideal for reliable circuit protection in domestic and commercial electrical installations.

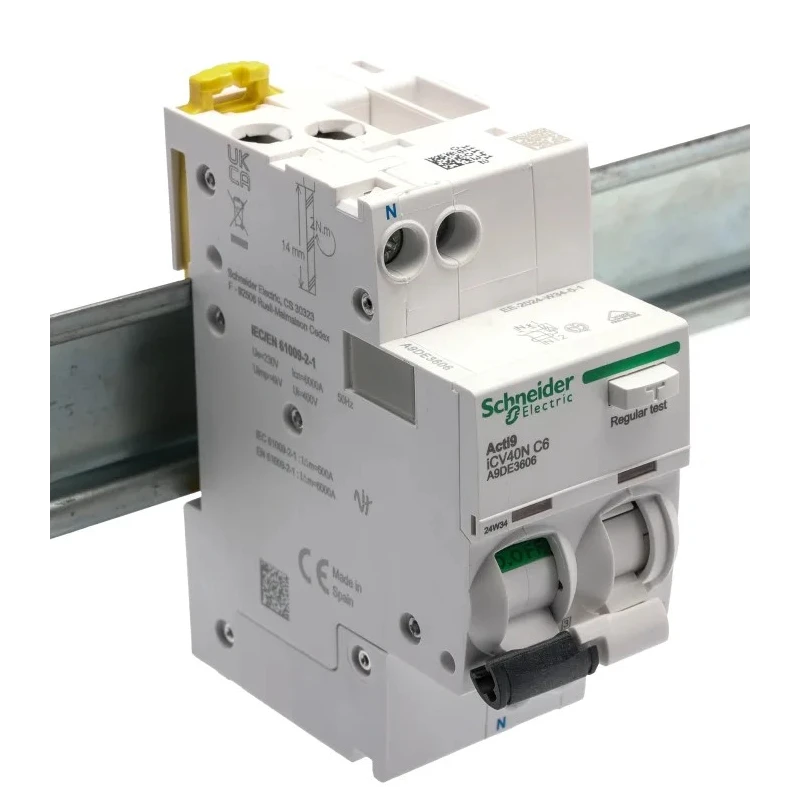

Its thermomagnetic tripping characteristics enable fast response to overcurrents and earth leakage faults. Designed for DIN rail mounting, this compact device (85mm height, 73mm depth, 36mm width) ensures easy integration into electrical panels while maintaining minimal space usage.

The circuit breaker features a breaking capacity of 6kA, which is essential for safely interrupting high fault currents, thereby preventing damages to electrical systems and enhancing overall protection.

With compliance to international standards including EN/IEC 60947-2, EN/IEC 61009-2-1, and certifications like EAC, IMQ, and VDE, the A9DE3606 assures quality and safety conformity. Its toggle reset actuator and tunnel type terminals offer user convenience and secure electrical connections.

Suitable for single-phase circuits operating at 230V AC, it operates reliably in environments with relative humidity up to 95% at 55°C. The device is well-suited for residential, commercial, and light industrial applications requiring instantaneous earth leakage protection and safe circuit isolation.

Combines residual current and overcurrent protection for safety. Provides a breaking capacity of 6kA to handle fault conditions. Thermomagnetic technology ensures fast tripping response. DIN rail mounting facilitates easy and secure installation.

Conforms to EN/IEC 60947-2, EN/IEC 61009-2-1, EAC, IMQ, and VDE standards. Rated for 230V AC with tunnel terminal type connections. Compact dimensions optimize panel space usage. Suitable for domestic and commercial single-phase circuit protection.

Toggle reset actuator type for convenient operation. Operates effectively in high humidity environments up to 95% at 55°C.
