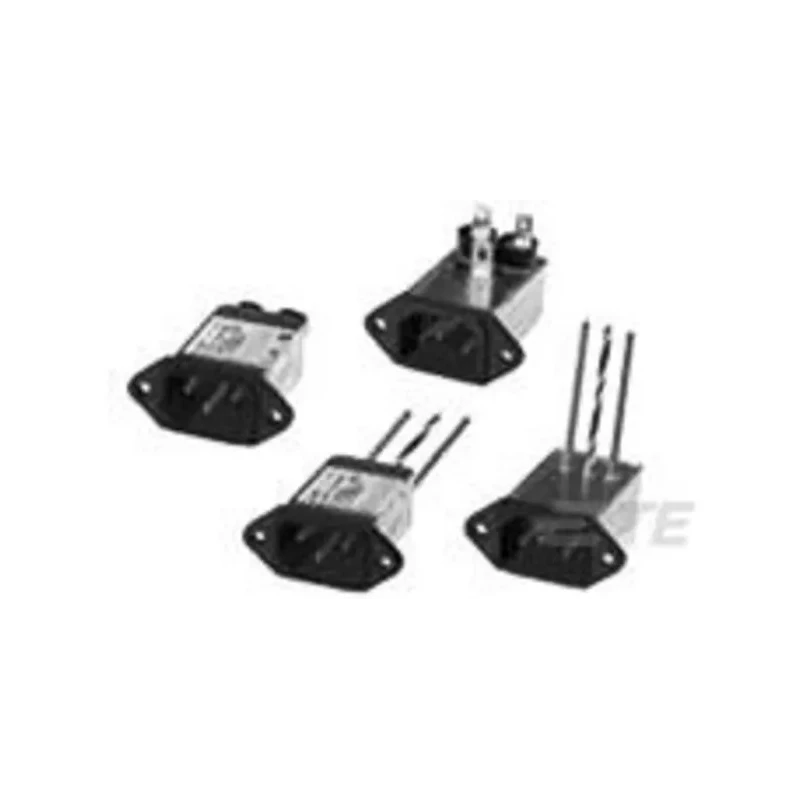

TE Connectivity Medium Performance Compact EMI Power Inlet IEC Filter 250V AC 3A Flange Mount Male Faston Termination 3ED1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Current | 3A |
| Height | 56mm |
| Model | 3ED1 |
| Filter Type | Power Line |
| Depth | 20.6mm |
| Width | 20.6mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | Corcom ED |
| Termination Type | Faston |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| Contact Gender | Male |
| Connector Gender | Male |
| IEC Connector Type | C14 |
Key Features
- Medium performance compact EMI power inlet filter suitable for industrial applications.
- Two element circuit delivers medium attenuation for power line noise reduction.
- Flange mounting ensures stable installation in equipment chassis.
- Male IEC C14 connector with faston termination simplifies wiring connections.
- Operates reliably between -10°C and 40°C ambient temperature.
- Designed to operate at 50 and 60 Hz frequencies for global compatibility.
Product Description
TE Connectivity 3ED1 is a medium performance IEC power line EMI filter designed for industrial, electronic, and electrical equipment applications. It features a compact two element circuit to provide medium attenuation of electrical noise on power lines, enhancing device resilience and operational stability.
This filter is equipped with a male IEC C14 flange mount connector, supporting a current rating of 3A and operating voltage of 250V AC. The flange mounting style provides secure fitting into equipment, while faston termination allows for convenient and reliable wiring connections.
Operational frequency compatibility includes both 50 Hz and 60 Hz, making it adaptable for global electrical standards. The 3ED1 model functions effectively within an ambient temperature range of -10°C to 40°C, ensuring dependable performance in various environments. Physical dimensions are compact, measuring 56mm height, 20.6mm width, and 20.6mm depth, suitable for space-constrained installations.
This product is manufactured in China by TE Connectivity, a trusted global brand known for high-quality electronic components and power connectors. The 3ED1 IEC filter is ideal for reducing EMI in electronic and industrial systems, offering protection against power line disturbances.
Medium performance compact EMI power inlet filter suitable for industrial applications. Two element circuit delivers medium attenuation for power line noise reduction. Flange mounting ensures stable installation in equipment chassis.
Male IEC C14 connector with faston termination simplifies wiring connections. Operates reliably between -10°C and 40°C ambient temperature. Designed to operate at 50 and 60 Hz frequencies for global compatibility. Compact dimensions support integration in limited space environments.
For advanced EMI filtering needs in electronics manufacturing, HVAC equipment, power supplies, and industrial control systems, the TE Connectivity 3ED1 IEC filter provides an efficient and reliable solution. Explore other high-performance filters and power connectors in the Electronics & Electricals category at EnvMart.
Explore more products in our IEC Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage of this filter is 250V AC.
This model has a current rating of 3A.
It uses a male IEC C14 connector with faston termination.
The dimensions are 56mm in height, 20.6mm in width, and 20.6mm in depth.
It operates reliably within an ambient temperature range of -10°C to 40°C.
This filter is designed to operate at both 50 Hz and 60 Hz frequencies.
It features a flange mount for stable installation in equipment chassis.
It is a power line EMI filter designed for medium performance applications.
This filter is manufactured in China.
The EMI filter provides medium attenuation for power line noise reduction, enhancing device resilience and operational stability.
The 3ED1 model belongs to the Corcom ED series.
The termination type is faston, which simplifies wiring connections.
