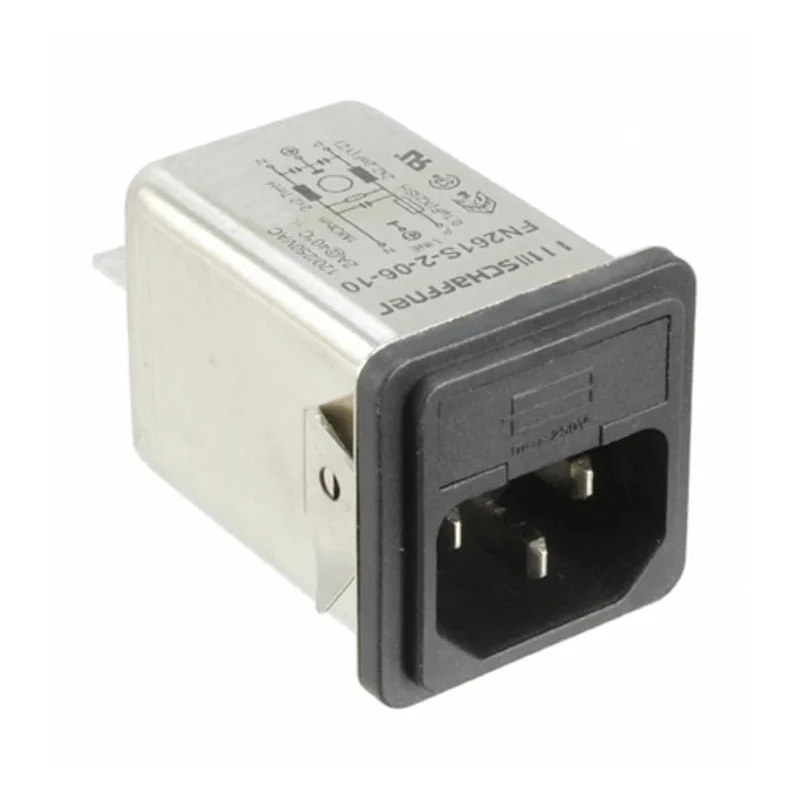

Schaffner 250V AC 2A Snap-in IEC Filter Male 1 Fuse Faston FN261S-2-06-10

Free Delivery in India | Lowest Global Shipping Charges

Schaffner 250V AC 2A Snap-in IEC Filter Male 1 Fuse Faston FN261S-2-06-10

Name: Schaffner 250V AC 2A Snap-in IEC Filter Male 1 Fuse Faston FN261S-2-06-10
Brand: Schaffner
SKU: 332923
Price: 24.9 USD
Availability: InStock



Category IEC Filters Brand Schaffner Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Schaffner
Current	2A
Height	34mm
Model	FN261S-2-06-10
Depth	60.3mm
Width	35mm
Mount Type	Snap-in
Operating Frequency	400Hz
Termination Type	Faston
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Contact Gender	Male
Connector Gender	Male
Fuse Size	5 x 20 mm
Number of Fuses	1
IEC Connector Type	IEC/EN 60939
Schaffner, 250V ac 6A Snap-in IEC Filter Male 1 Fuse, FastonBrand	Schaffner

Key Features

Operates at a voltage of 250V AC with a continuous current rating of 2A.
Features a single 5 x 20 mm fuse for circuit protection.
Male connector with Faston termination ensures secure and reliable connections.
Mount type is snap-in, facilitating easy installation into equipment.
Suitable for operation at frequencies up to 400Hz.
Wide operating temperature range from -25°C to 85°C supports various industrial environments.
Complies with IEC/EN 60939 connector standards and recognized by UL, CSA, VDE, and SEMKO certifications.
Ideal for portable equipment applications requiring transient voltage protection.

Product Description

Schaffner FN261S-2-06-10 Snap-in IEC Filter is a compact, lightweight mains inlet plug designed to provide effective transient voltage protection by filtering mains borne interference. Constructed to IEC/EN 60939 standards, this filter features a single 5 x 20 mm fuse with Faston termination and a male snap-in connector, making it suitable for portable and industrial equipment applications.

Operating at maximum voltage of 250V AC and current rating of 2A, the filter supports frequencies up to 400Hz and functions reliably in operating temperatures ranging from -25°C to 85°C, ensuring versatility in harsh and variable industrial environments.

The filter plugs facilitate connection using 250 (1/4 in) receptacles, improving the filtering effectiveness where capacitor-based filtering is inadequate. The snap-in mounting type enables easy installation, while the compact dimensions (34mm height, 35mm width, 60.3mm depth) contribute to minimal space usage.

Approved and recognized by leading safety standards including UL, CSA, VDE, and SEMKO, this Schaffner IEC filter is engineered for high performance in electronic components and power connector applications.

Operates at 250V AC with a 2A continuous current rating. Includes one 5 x 20 mm fuse with Faston termination. Snap-in mount type for easy installation. Compatible with IEC/EN 60939 connector standards. Compact size and lightweight construction.

Suitable for frequencies up to 400Hz. Wide operating temperature range from -25°C to 85°C. Approved to UL, CSA, VDE, and SEMKO standards. Designed for transient voltage protection in portable equipment.

This product is ideal for industrial, electronic component manufacturing, power connector applications, and equipment requiring effective EMI/RFI filtering. Browse more IEC Filters and connectors on EnvMart for additional compatible components and related products.
