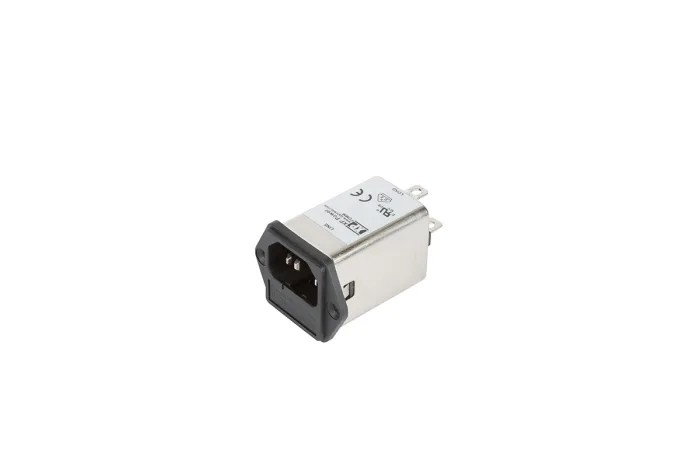

XP Power IEC Filter 264V AC 10A Screw Mount with 1 Fuse Faston Termination FDMM10SFR

XP Power FDMM10SFR is a compact IEC Filter designed for medical and class I appliances with mains power supply. Operating at 264V AC with a current rating of 10A, this filter features a screw mount and a male connector. Its termination is via faston terminals compatible with size 5 x 20 mm fuses, offering effective electromagnetic interference attenuation.

The filter integrates a front accessible dual fuse holder with 1 fuse and a shielded metal body combined with a bleed resistor to safely discharge capacitors when power is disconnected. Its wide operating temperature range from -40°C to 40°C enables stable performance under diverse industrial conditions.

Meeting ANSI/UL1283 and EN60939-2 standards, it supports operating frequencies up to 400Hz and is suitable for mains powered medical equipment that require low earth leakage current and dual fusing.

Dimensions of 44mm width, 34mm height, and 62mm depth provide a compact footprint ideal for space-constrained installations. The robust screw mount ensures secure attachment in demanding environments.

Designed for mains-powered medical and class I appliances requiring low leakage current and dual fusing. Front accessible dual fuse holder with 1 fuse (5 x 20 mm). Shielded metal body construction with bleed resistor for safety.

Wide operating temperature range from -40°C to 40°C. Faston termination and male connector for easy installation. Complies with ANSI/UL1283, EN60939-2 standards for IEC Filters. Compact size of 44mm width, 34mm height, and 62mm depth.

This filter is ideal for industrial, medical equipment manufacturing, and electrical distribution applications requiring reliable EMI filtering and secure fuse protection. Explore additional electronic components and IEC filter products on EnvMart for comprehensive power connector solutions.
