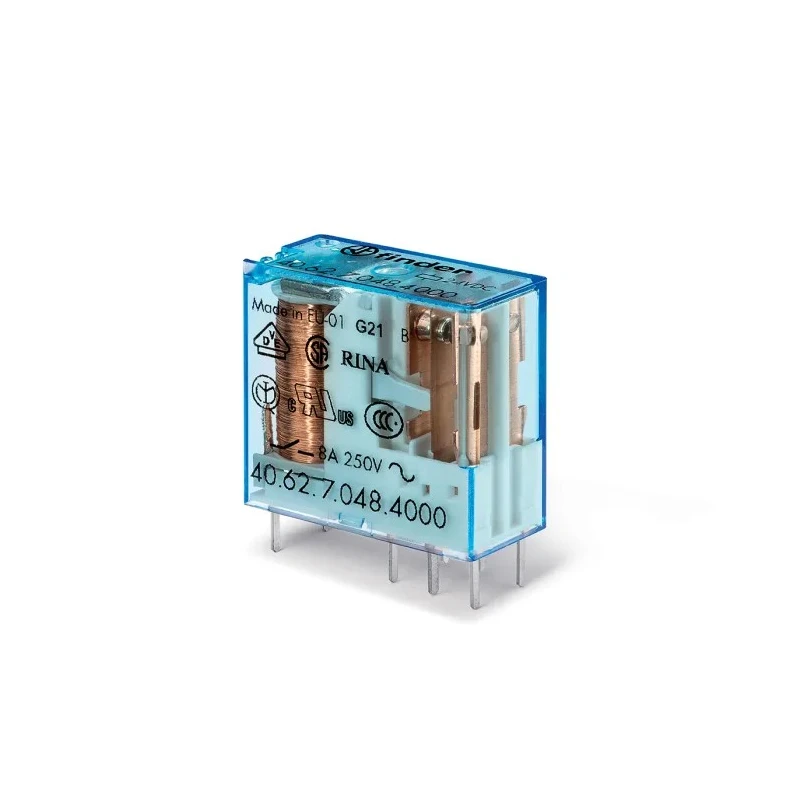

Finder Power Relay, PCB Mount, DPDT Contact Configuration, 48V DC Coil Voltage, 10A Switching Current 40.62.7.048.4000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 25mm |
| Length | 29mm |
| Width | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 40 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Resistance | 3.5kΩ |
| Coil Voltage | 48V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 650mW |
| Switching Power | 300mW |
Key Features
- Equipped with silver alloy contacts to ensure durability and low contact resistance.
- Supports a maximum switching voltage of 400V AC and 30V DC for versatile use.
- Compact dimensions of 29mm length, 12.4mm width, and 25mm height for space-constrained PCB assemblies.
- Operates reliably between -40°C and +85°C for extreme environment suitability.
- High insulation resistance of 6kV between coil and contacts enhances operational safety.
- Coil power consumption of 650mW with coil resistance of 3.5 kΩ.
- Designed for plug-in terminal type to facilitate easy installation and maintenance.
- Complies with RoHS environmental standards.
Product Description
Finder 40.62.7.048.4000 Power Relay is a compact DPDT power relay designed for PCB mounting with a coil voltage of 48V DC and a switching current rating of 10A. It offers reliable switching performance with silver alloy contacts, ensuring durability and low contact resistance suitable for industrial and electronic applications.
This relay features a maximum switching voltage of 400V AC and 30V DC, making it suitable for diverse high-voltage switching tasks in compact electronic assemblies. Measuring 29mm in length, 12.4mm in width, and 25mm in height, it is ideal for space-restricted circuit board designs requiring robust relay capabilities.
Operating effectively across a temperature range of -40°C to +85°C, it ensures stable functionality even in harsh environments. The device consumes 650mW coil power with 3.5kΩ coil resistance and incorporates plug-in type terminals for ease of installation and replacement. High insulation resistance of 6kV between coil and contact enhances safety during high voltage switching.
The relay complies with RoHS environmental regulations, guaranteeing environmentally responsible manufacturing standards. Designed to provide a life expectancy of 10 million switching cycles, this relay supports long-term reliability in automation and control systems.
Key applications include automation of blinds, grilles, shutters, control panels for electrical distribution, medical and dental equipment control circuits, door and gate opening mechanisms, and vending machine operations.
Equipped with silver alloy contacts for enhanced conductivity and durability. High insulation resistance of 6kV enhances electrical safety. Designed for PCB mounting with plug-in terminal type to simplify installation. Operates reliably in extreme temperatures from -40°C to +85°C.
Supports up to 10A switching current and 400V AC switching voltage. Compact size fits space-limited electronic applications. Compliant with RoHS environmental standards. Durable with a rated life of 10 million cycles. Ideal for automation, control panels, and industrial electronics.
Explore more in our Electronics & Electricals category for Power Relays and related automation components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 48V DC.
This model supports a maximum switching current of 10A.
The dimensions of the relay are 29mm in length, 12.4mm in width, and 25mm in height.
The contact configuration of this relay is DPDT (Double Pole Double Throw).
The maximum switching voltage is 400V AC and 30V DC.
This relay is designed with plug-in type terminals for easy installation and maintenance.
It operates reliably between -40°C and +85°C.
The insulation resistance between the coil and contacts is rated at 6kV.
The coil resistance is 3.5 kΩ.
The coil power consumption is 650mW.
This relay complies with RoHS environmental standards.
It is suitable for applications such as automation of blinds, control panels, and medical equipment control circuits.
