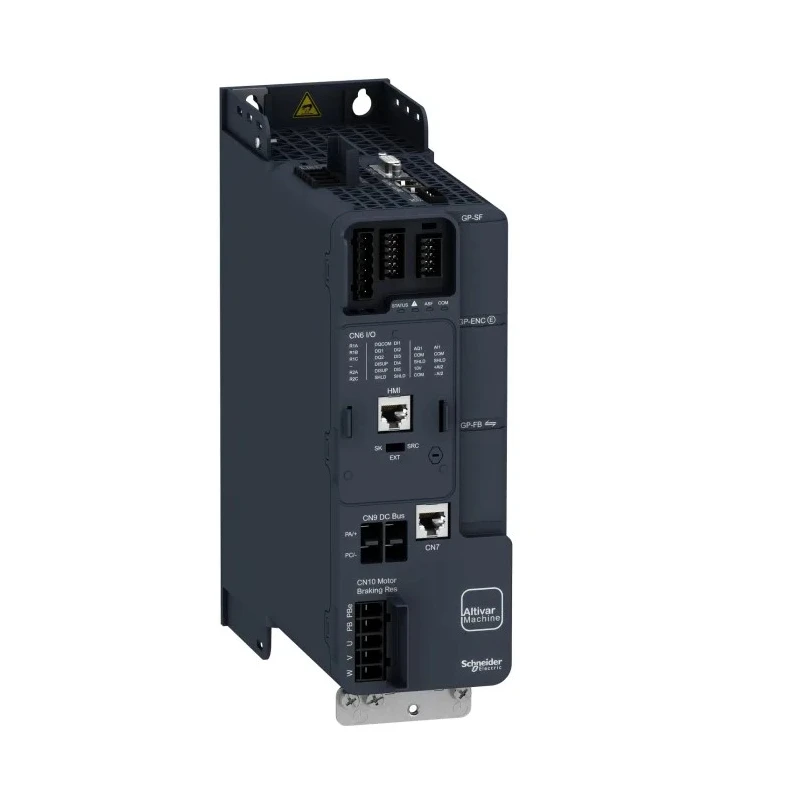

Schneider Electric Inverter Drive Altivar Series 1.5 kW 3 Phase Variable Speed Cabinet Mount ATV340U15N4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340U15N4 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 85mm |
| Series | Altivar |
| Overall Width | 232.5mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 6A |
| Standards/Approvals | IEC, REACH, RoHS, EAC, TUV, CE, C-Tick, UL, CSA, EAN |
| Maximum Supply Voltage | 480V |
| Overall Depth | 270mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Permanent Magnet Motor, Reluctance Motor |
Key Features
- High performance speed and torque control for synchronous and asynchronous motors.
- Rated power of 1.5kW and voltage range from 380V to 480V AC.
- Compact cabinet mount design with IP20 protection and durable housing.
- Supports multiple communication protocols including Modbus and Ethernet option.
- Wide operating temperature range from 0°C to 50°C for harsh environments.
- Integrated functional safety with embedded STO and master/slave functionality.
- Includes expansion slots for encoder, fieldbus, and I/O modules for customization.
- Conforms to international standards IEC, REACH, RoHS, UL, CSA, and TÜV certifications.
Product Description
Schneider Electric ATV340U15N4 is a high-performance inverter drive from the Altivar series designed for precise speed and torque control of 3-phase synchronous and asynchronous motors. Delivering a rated power of 1.5 kW and compatible with voltage supply from 380V to 480V AC, this variable speed drive is ideal for industrial applications requiring robust and energy-efficient motor control.
The compact cabinet mount unit measures 85mm in length, 232.5mm in width, and 270mm in depth, weighing approximately 1.7 kg. It features IP20 protection suitable for non-conductive dust environments, vibrations, and shocks, and operates reliably within temperatures from 0°C to 50°C, with extended tolerance up to 60°C.
ATV340U15N4 incorporates embedded Ethernet communication protocols such as Modbus for seamless integration into automation systems. Its modular design supports expansion with encoder interface modules, I/O expansion, communication modules, braking resistors, line chokes, and EMC filters, enhancing customization based on application needs.
This drive is suitable for uses in packaging, material handling, manufacturing, and hoisting industries where precise motor control and high reliability are critical. It complies with major international standards including IEC/EN 61800-5-1 and IEC/EN 61800-3 for electromagnetic compatibility, as well as IEC 61508 and IEC 13849-1 functional safety standards. Certifications from CE, UL, CSA, and TÜV ensure compliance and safety.
High performance speed and torque control for synchronous and asynchronous motors. Rated power of 1.5kW and voltage range 380V-480V AC. Compact cabinet mount design with IP20 rating. Supports Modbus and Ethernet communication protocols.
Wide operating temperature range from 0°C to 50°C. Integrated Safety Torque Off (STO) function. Expansion slots for encoder, I/O, and fieldbus modules. Complies with IEC, RoHS, UL, CSA, and TÜV standards.
Schneider Electric's ATV340U15N4 Inverter Drive increases machine productivity while saving energy, making it a reliable solution for industrial automation. Explore more automation and control gear products at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV340U15N4 inverter drive has a power rating of 1.5 kW.
This model supports a voltage range from 380V to 480V AC.
The maximum operating temperature for the ATV340U15N4 is 50°C, with an extended tolerance up to 60°C.
It is compatible with 3-phase synchronous and asynchronous motors, including permanent magnet and reluctance motors.
This inverter drive supports multiple communication protocols, including Modbus and has an Ethernet option.
The dimensions are 85mm in length, 232.5mm in width, and 270mm in depth.
The ATV340U15N4 has an IP20 rating, suitable for non-conductive dust environments.
The output frequency range of the ATV340U15N4 is from 0.1 Hz to 599 Hz.
Yes, it includes an integrated Safety Torque Off (STO) function for enhanced safety.
It complies with international standards including IEC, REACH, RoHS, UL, CSA, and TÜV certifications.
The inverter drive weighs approximately 1.7 kg.
This model is designed for cabinet mounting.
