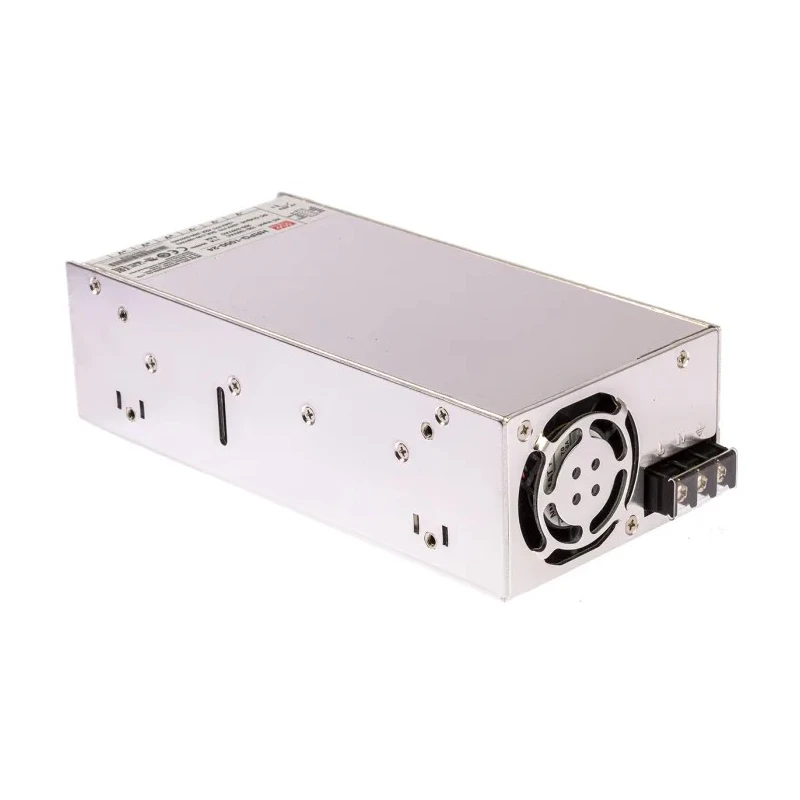

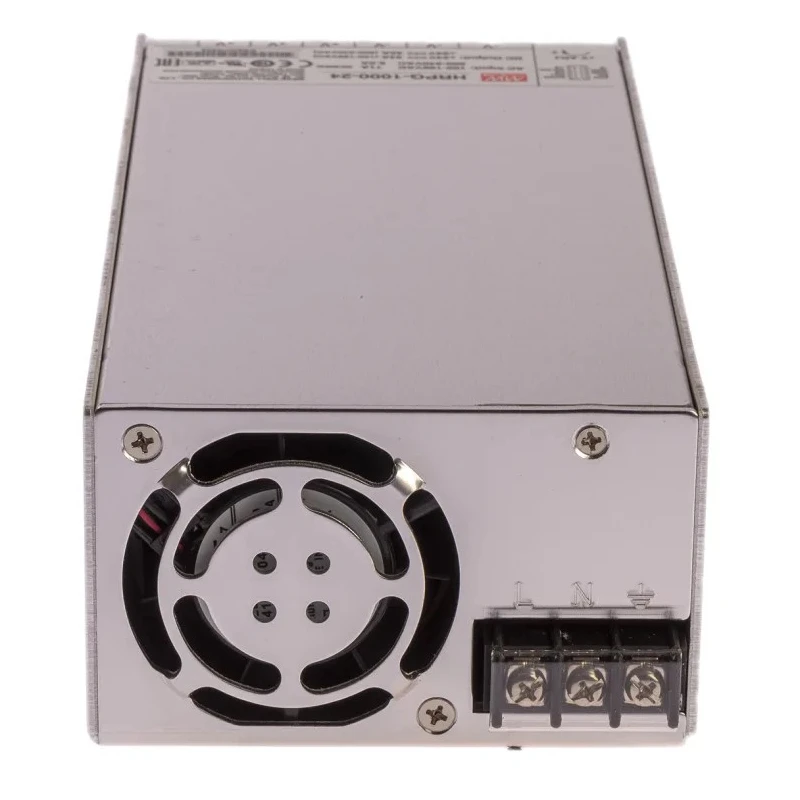

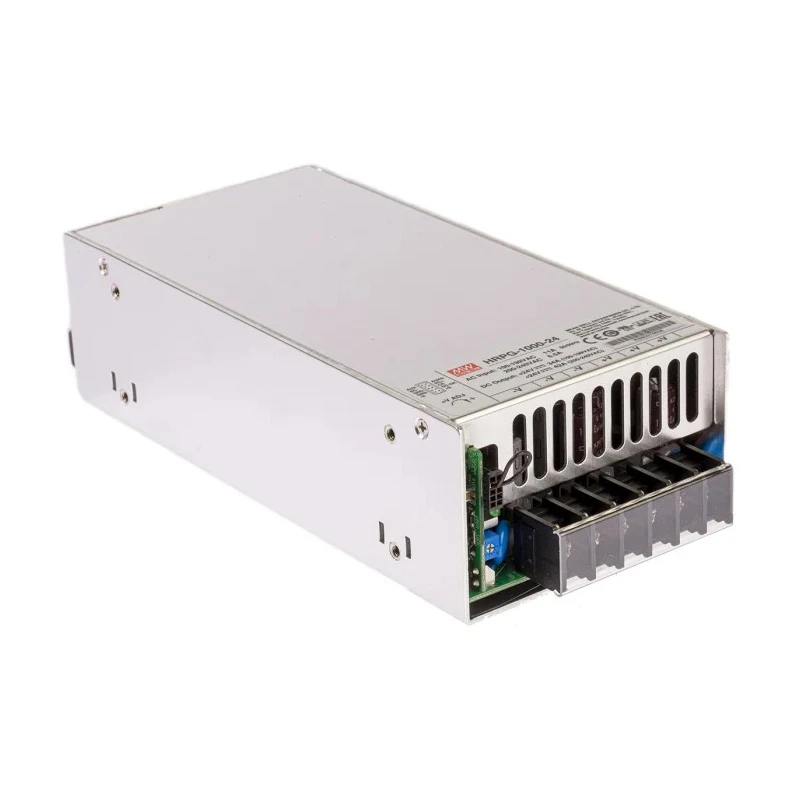

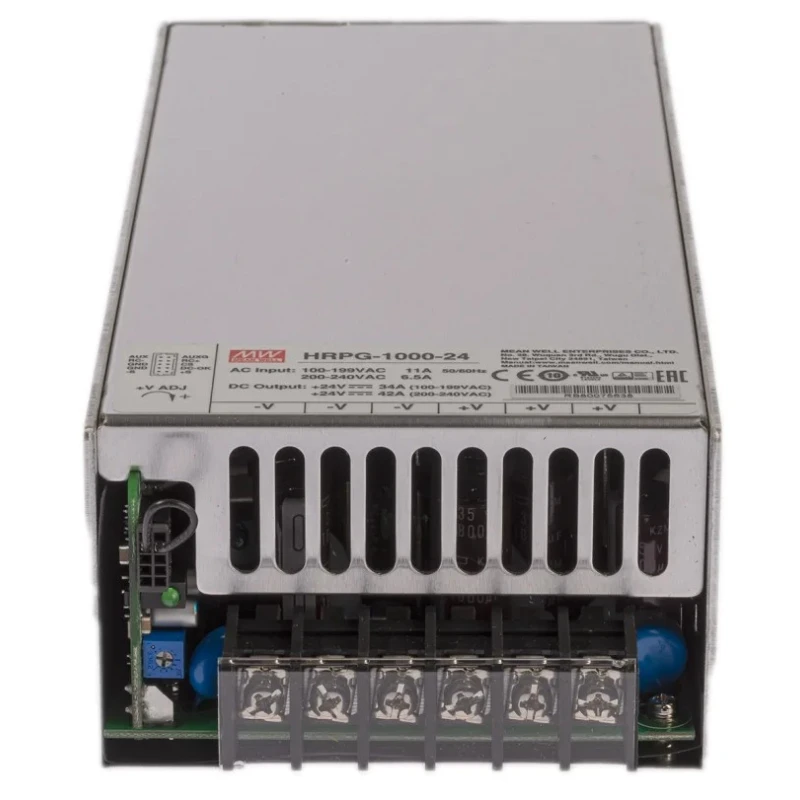

MEAN WELL HRPG-1000-24 Switching Power Supply 24V dc 1.008kW 42A Chassis Mount HRPG-1000-24
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 1.008kW |
| Efficiency | 93% |
| Length | 218mm |
| Model | HRPG-1000-24 |
| Depth | 63.5mm |
| Gross Weight | 1.5kg |
| Width | 105mm |
| Mount Type | Chassis |
| Series | HRPG-1000 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Standards/Approvals | EAC TP TC 004, TUV BS ENEN 6681, UL 6681, ASNZS 668.1 |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 42A |
| Minimum Input Voltage | 90V ac |
Key Features
- Compact chassis mount design suitable for space-constrained installations.
- Wide operating voltage range from 90V AC to 264V AC supports various input conditions.
- High efficiency up to 93% to reduce energy losses during operation.
- Operates reliably in extreme temperatures from -40°C to 70°C.
- Includes protective features against short circuit and high temperature.
- Suitable for factory automation, laser machines, and RF applications.
- Meets international standards including EAC TP TC 004, TUV BS ENEN 6681, UL 6681, and ASNZS 668.1.
- Surge withstand voltage up to 300VAC for 5 seconds enhances robustness.
Product Description
MEAN WELL HRPG-1000-24 is an embedded switching power supply providing a 24V DC output voltage with a maximum output power of 1.008 kW. This model features a high output current of 42A and supports a broad input voltage range of 90V AC to 264V AC, making it suitable for diverse power input environments. It is designed for chassis mounting, offering a compact form factor with dimensions of 218mm length, 105mm width, and 63.5mm depth.
The power supply maintains efficient operation with up to 93% efficiency, thereby optimizing power consumption. It functions effectively within a temperature range of -40°C to +70°C, enabling deployment in harsh industrial and commercial environments. Key protective measures incorporated include short circuit protection and temperature safeguarding to ensure reliable, long-lasting performance.
This unit adheres to multiple safety and performance standards, including EAC TP TC 004, TUV BS ENEN 6681, UL 6681, and ASNZS 668.1 certifications, ensuring compliance in various global markets. The device withstands surge voltages up to 300VAC for 5 seconds, protecting against power anomalies.
Typical applications involve factory control and automation apparatus, laser machinery, and radio frequency (RF) systems, highlighting its versatility across industrial domains. With a robust construction weighing approximately 1.5 kg, it facilitates straightforward installation and integration into power supply frameworks.
Compact chassis mount design suitable for space-constrained installations. Wide operating voltage range from 90V AC to 264V AC supports various input conditions. High efficiency up to 93% to reduce energy losses during operation.
Operates reliably in extreme temperatures from -40°C to 70°C. Includes protective features against short circuit and high temperature. Suitable for factory automation, laser machines, and RF applications. Meets international standards including EAC TP TC 004, TUV BS ENEN 6681, UL 6681, and ASNZS 668.1.
Surge withstand voltage up to 300VAC for 5 seconds enhances robustness. Weighs approximately 1.5 kg for easy handling and installation. Explore the MEAN WELL series of switching power supplies at EnvMart for reliable industrial and commercial power management solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 1.008 kW.
It has an efficiency rating of up to 93%, which helps reduce energy losses during operation.
This model supports a wide input voltage range from 90V AC to 264V AC.
The dimensions of this unit are 218mm in length, 105mm in width, and 63.5mm in depth.
The maximum output current is 42A.
It operates reliably in temperatures ranging from -40°C to +70°C.
It includes protective features against short circuits and high temperatures.
This unit meets several international standards including EAC TP TC 004, TUV BS ENEN 6681, UL 6681, and ASNZS 668.1.
The HRPG-1000-24 can withstand surge voltages up to 300VAC for 5 seconds.
This model is designed for chassis mounting, making it suitable for space-constrained installations.
It is suitable for factory automation, laser machines, and RF applications.
The gross weight of this unit is approximately 1.5 kg, facilitating easy handling and installation.
