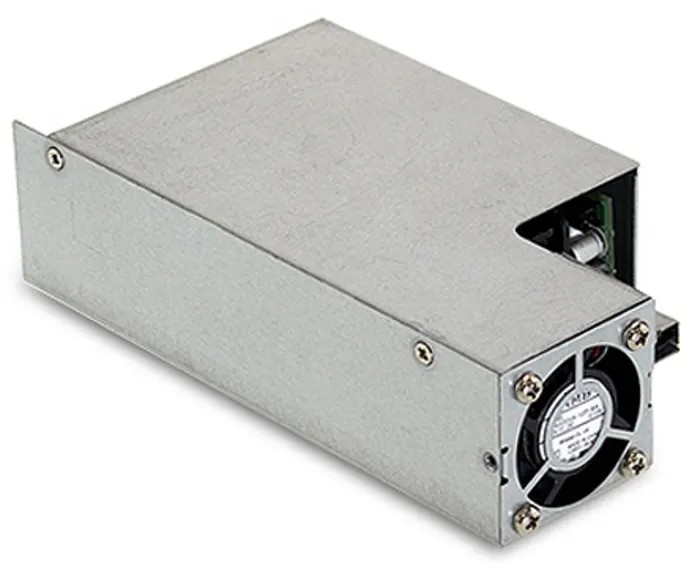

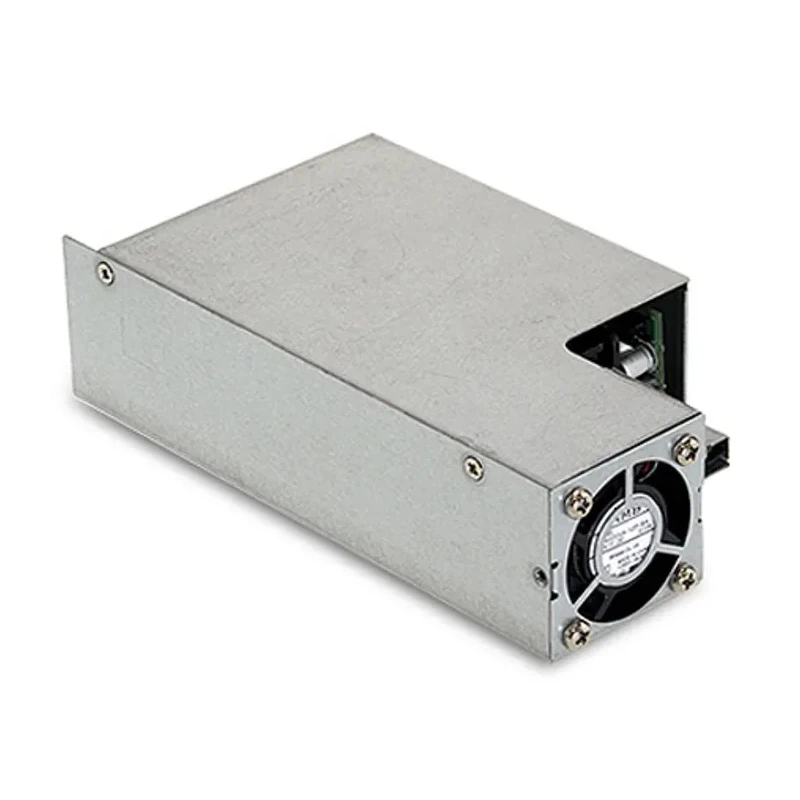

MEAN WELL Medical Grade Switching Power Supply 24V DC 252W 16.7A Chassis Mount RPS-400-24-SF
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 252W |
| Efficiency | 93% |
| Length | 151mm |
| Model | RPS-400-24-SF |
| Depth | 43mm |
| Gross Weight | 640g |
| Width | 43mm |
| Mount Type | Chassis |
| Series | RPS-400-24 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 16.7A |
| Minimum Input Voltage | 80V ac |
Key Features
- Supports universal AC input voltage with minimum 80V AC and maximum 370V DC.
- Provides 16.7A output current suitable for medical and industrial applications.
- Features high efficiency of up to 93% and low leakage current for safe operation.
- Includes multiple protections such as short circuit, overload, over voltage, and over temperature.
- Compact size with chassis mount and dimensions 151mm length, 43mm width and depth.
- Complies with multiple international medical and safety standards including ANSI/AAMI ES60601-1.
- Operating temperature range from -30°C to 70°C for reliability in various environments.
- Equipped with built-in PFC and remote sense function along with fan supply output.
Product Description
MEAN WELL RPS-400-24-SF is a highly reliable medical grade switching power supply delivering 24V DC output at maximum power of 252W and output current of 16.7A. Designed with chassis mount form factor, it measures 151mm in length and 43mm in both width and depth, weighing 640g. This power supply supports a wide universal AC input ranging from 80V AC to 370V DC, ensuring flexibility across different power sources.
The unit boasts an impressive efficiency of 93% while maintaining low leakage current, meeting strict medical safety standards with 2 x MOPP isolation between primary and secondary circuits. It conforms to international certifications such as UL 62368-1, TUV EN62368-1, IEC 60601-1, ANSI/AAMI ES60601-1, and others, making it ideal for medical applications including hemodialysis machines, oral irrigators, medical monitors, sleep apnea devices, and electric beds.
Key engineering features include built-in Power Factor Correction (PFC), short circuit, overload, over voltage, and over temperature protections ensuring operational safety and reliability. It supports free air convection cooling for models operating up to 250W and offers forced air cooling options for higher loads with integral fan supplies providing 12V/0.5A output along with standby 5V output.
The RPS-400-24-SF is well suited to Class I and Class II medical equipment designs, providing low no load power consumption and built-in remote sense functions to maintain voltage stability. Operating temperature range is from -30°C to 70°C, suitable for diverse industrial and medical environments.
Supports universal AC input voltage of 80V AC minimum to 370V DC maximum. Maximum output voltage of 24V DC with output current of 16.7A. Compact chassis mount design with dimensions 151mm x 43mm x 43mm. Complies with strict medical safety approvals including 2 x MOPP isolation.
High efficiency rating of 93% with low leakage current. Includes comprehensive protection features for safe and stable operation. Suitable for medical and industrial applications such as hemodialysis and monitoring equipment.
Operates reliably between temperature range of -30°C to 70°C. Equipped with built-in PFC, fan power supply, and remote sense capability. This switching power supply is a versatile, safe, and efficient choice for medical and industrial power needs. Browse more power supplies and components at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 252W.
It has an efficiency rating of 93%.
The dimensions of this chassis mount power supply are 151mm in length, 43mm in width, and 43mm in depth.
The maximum output current is 16.7A.
It operates reliably within a temperature range of -30°C to 70°C.
It includes protections against short circuit, overload, over voltage, and over temperature.
This unit is designed for chassis mounting.
It complies with multiple international medical and safety standards including ANSI/AAMI ES60601-1 and IEC 60601-1.
The gross weight of the RPS-400-24-SF is 640g.
Yes, it supports free air convection cooling for models operating up to 250W and includes forced air cooling options with an integral fan supply.
