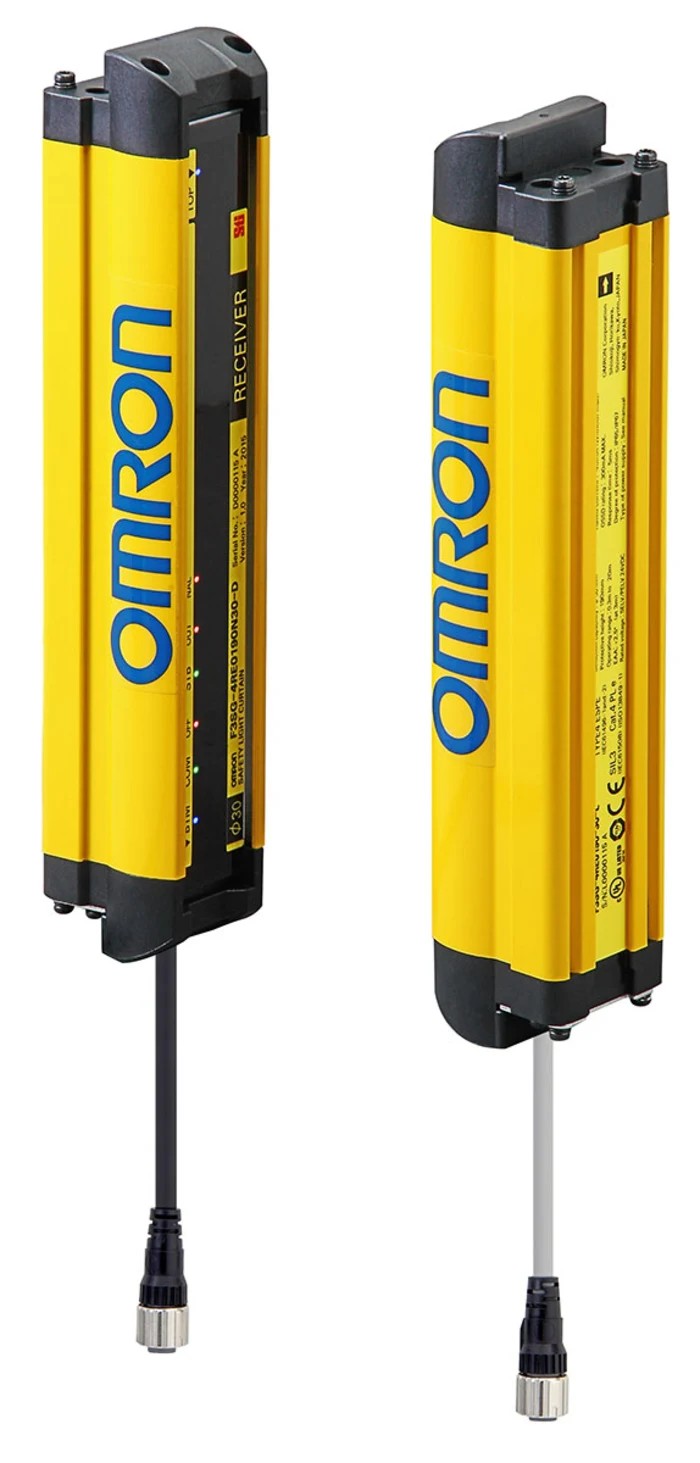

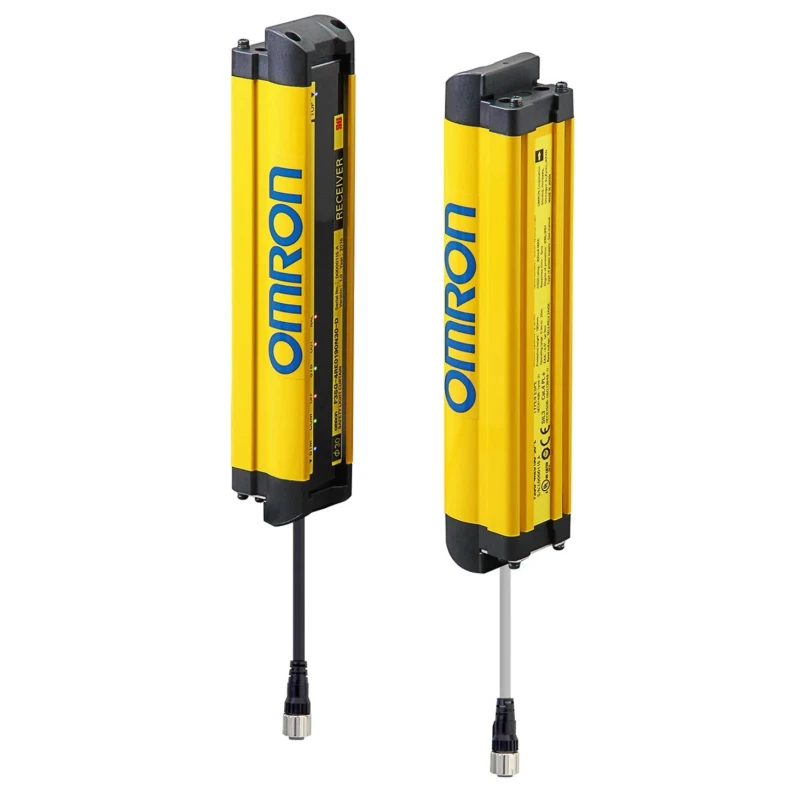

Omron Light Curtain Sender and Receiver Safety Sensor Type 2, 71 Beams, 14 mm Resolution, 720 mm Protective Height F3SG-RE

Omron F3SG-RE Light Curtain Sender and Receiver Safety Sensor Type 2 with 71 beams and 14 mm beam resolution is designed to safeguard hazardous industrial areas by detecting intrusions and stopping machinery safely. It operates on a 24V DC supply and is intended for machine guarding applications requiring compact, robust, and reliable presence detection.

The sensor array protects a height of 720 mm and supports a scanning distance range from 0.3 m to 10 m, making it suitable for short- to medium-range safety installations. Its 14 mm beam resolution reduces the risk of missed detections of fingers or small parts, increasing operational safety.

The devices connect via a 4-Pin M12 connector, simplifying wiring and providing sturdy industrial-grade electrical connections. The Type 2 safety categorization complies with industrial safety norms, ensuring trustworthy performance in critical environments.

Designed for easy installation, the sensor features rugged connectors, alignment aids, and torsion-resistant housings to support maintenance. The maximum system response time of 145 milliseconds allows quick stoppage of equipment upon presence detection.

Typical applications include safeguarding press feed and pick-and-place zones, conveyor infeed and outfeed lines, automated assembly station access control, perimeter protection around robotic workcells, and integration with safety controllers for machine stop on entry detection.

The product is built to withstand industrial environments with protection against dust and water rated IP65 and IP67. Its compact form factor (35 mm width and length) facilitates flexible installation in a variety of safety setups.

The sensor covers a protective height of 720 mm with 71 beam arrays. 14 mm beam resolution minimizes missed finger or part detections. Operates with 24V DC supply using a 4-Pin M12 connector for ease of industrial wiring.

Detection range supports from 0.3 m minimum to 10 m maximum scanning distance. Features Type 2 safety classification according to safety standards. Maximum response time of 145 ms ensures rapid machine stoppage on intrusion detection.

Compact design with 35 mm width and length facilitates easy installation. Offers protection suitable for press feed zones, conveyor lines, robotic workcells, and access control points. Built for industrial environments with resistance to dust and water rated at IP65/67.

EnvMart offers this Omron F3SG-RE Series Safety Light Curtain sensor as a reliable solution for industrial automation safety. Browse EnvMart's collection of Safety Light Curtains and related automation equipment for comprehensive protection options.
