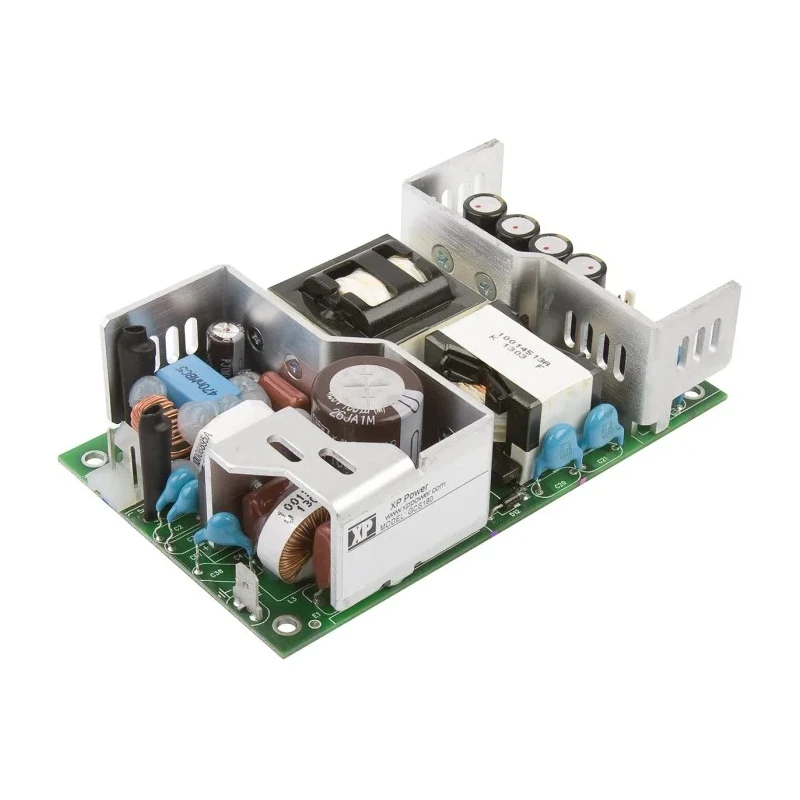

XP Power GCS180PS12 Switching Power Supply 12V DC, 180W, 85-264V AC Input, Chassis Mount GCS180PS12

XP Power GCS180PS12 switching power supply is a high-performance, 180 watt AC-DC converter designed for industrial and medical use. It features a single 12V DC output with a maximum current capability of 15A, suitable for powering sensitive electronics and IT equipment. The power supply accepts a wide universal input voltage range of 85 to 264 volts AC, ensuring compatibility with global mains supplies.

This chassis mount model has compact dimensions of 127mm length, 76.2mm width, and 36.3mm depth, and weighs only 290 grams. It offers high energy efficiency up to 93%, which results in reduced heat generation and energy savings during operation. The cooling is convection based, enabling reliable thermal management without the need for fans or moving parts.

Certified to multiple international safety and electromagnetic compatibility standards such as ANSI/AAMI ES 60601-1, CSA C22.2 No. 60950-1-1, EN 60601-1/A12, IEC 60601-1 Ed 3, IEC 60950-1:2005 Ed 2, LVD, RoHS, and UL 60950-1, this power supply ensures safe and reliable operation especially in critical medical environments.

The unit is engineered to operate in extreme conditions with an operating temperature range from -40°C to +70°C, making it suitable for demanding industrial settings. Its robust construction ensures longevity and dependable performance.

This model originates from China and is part of the XP Power GCS180 series, known for compact size and medical-grade certifications. Its features make it ideal for use in industrial machines, IT equipment, laboratory instruments, telecommunications, and healthcare devices requiring stable and efficient power delivery.

Operates with universal input voltage range from 85 to 264V AC. Has a single output delivering 15A current efficiently. Features up to 93% energy efficiency reducing power loss. Designed for industrial and medical electrical applications with multiple safety approvals.

Compact size with dimensions 127mm length, 76.2mm width, and 36.3mm depth. Supports wide operating temperature from -40°C to 70°C for harsh environments. Lightweight with gross weight of 290 grams for ease of installation.

Convection cooled chassis mount for reliable continuous operation. Constructed to meet standards including ANSI/AAMI ES 60601-1 and UL 60950-1. Made in China with compliance to RoHS and other international certifications.
