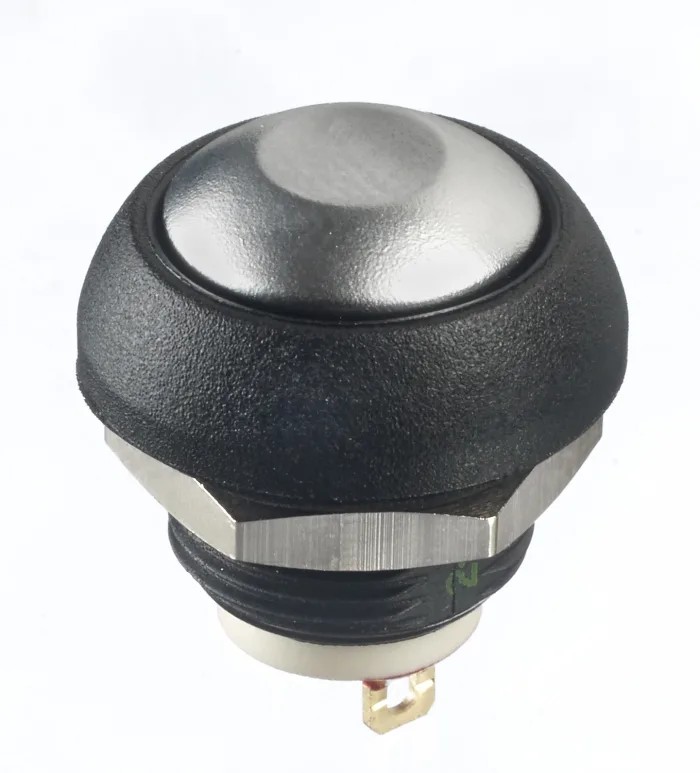

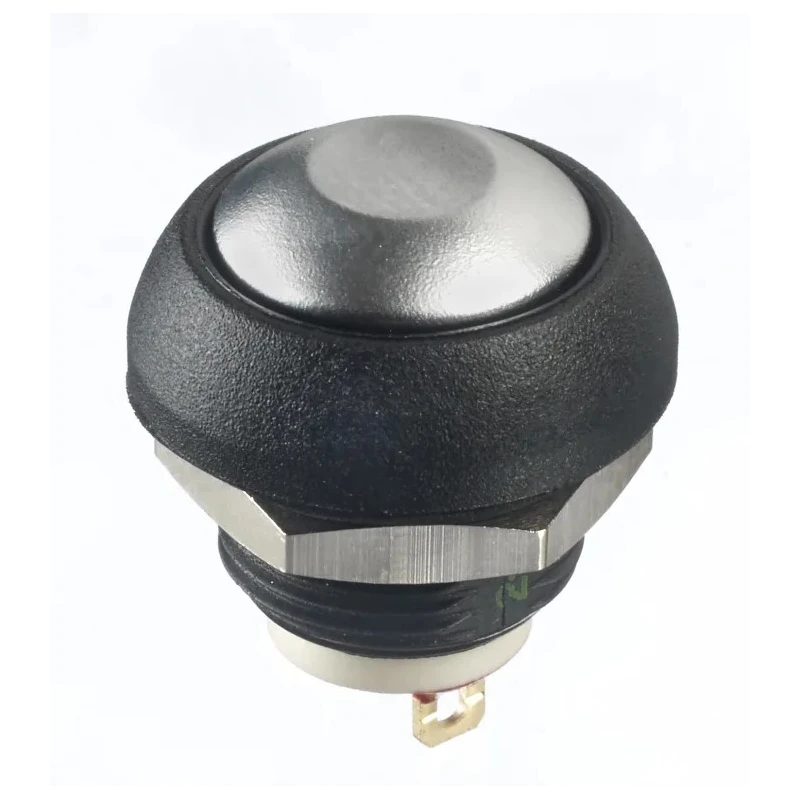

APEM IS Series Momentary Push Button Switch Panel Mount 13.6 mm Cutout SPST IP67 32 V ISR3SADA00
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | ISR3SADA00 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | IS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 32V |
| Actuator Style | Round |
| Switch Contact Current | 100mA |
| Contact AC Voltage | 32V ac |
| Legend | Actuator Marking Available (Symbol 10 mm max) |
Key Features
- Operates as a momentary switch with SPST contact configuration.
- Silver actuator color with round style for excellent tactile feedback.
- Rated IP67 for dust and water ingress protection.
- Suitable for contact voltages up to 32 V AC/DC and contact current up to 100 mA.
- Compact design includes a thin behind-panel depth and plastic button with lug terminals.
- Operates reliably between -40°C and 85°C.
- Compliant with IEC 512-4, IEC 512-6, IEC 60529, and UL standards.
- Includes actuator marking option with a maximum 10 mm symbol.
Product Description
The APEM ISR3SADA00 is a precision-engineered momentary push button switch from the IS Series, optimized for panel mounting requiring a 13.6 mm cutout diameter. This switch features a single-pole single-throw (SPST) configuration, providing straightforward on/off control in electrical and automation systems.
The switch actuator is silver and round in style, crafted from plastic with a compact and lightweight design that minimizes panel depth, making it suitable for tight installation spaces. It employs solder lug terminals, facilitating secure and durable connections.
Designed for demanding industrial environments, this switch is rated IP67, offering excellent protection against dust ingress and water immersion. It reliably operates within a wide temperature range from -40°C to 85°C, ensuring robust performance across diverse applications.
The device supports a maximum contact voltage of 32 V AC and DC, with a switch contact current rating of 100 mA. It delivers excellent tactile feedback for operator assurance during use. The actuator can be optionally marked with symbols up to 10 mm, aiding quick identification in control panels.
Manufactured according to international standards including IEC 512-4, IEC 512-6, IEC 60529, and recognized by UL (File E-83438), ensuring safety and quality compliance.
This Push Button Switch is ideal for industrial machinery control panels, automation equipment, laboratory instruments, and other electrical applications where reliable momentary input is required.
Operates as a momentary switch with SPST contact, silver round actuator, and panel mounting. IP67 rated for environmental protection with solder lug terminals for secure installation. Wide operating temperature range from -40°C to 85°C suitable for harsh conditions.
Supports 32 V AC/DC contact voltage and 100 mA contact current for low power control. Compact size with a 13.6 mm panel cutout and thin behind-panel depth. Complies with IEC and UL safety and performance standards. Actuator marking available for enhanced panel identification.
Explore more switches and electrical components within EnvMart's extensive product catalog for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole single-throw (SPST) contact configuration, providing straightforward on/off control.
It can operate reliably at a maximum temperature of 85°C.
The switch is rated IP67, offering protection against dust ingress and immersion in water.
It supports a maximum contact voltage of 32 V AC/DC and a contact current rating of 100 mA.
The required panel cutout size for this model is 13.6 mm.
It employs solder lug terminals for secure and durable connections.
The minimum operating temperature for this switch is -40°C.
Yes, the actuator can be marked with symbols up to 10 mm for quick identification.
The switch has a compact design, specifically optimized for panel mounting, but specific dimensions beyond the cutout size are not provided.
It complies with IEC 512-4, IEC 512-6, IEC 60529, and is recognized by UL standards.
It is suitable for industrial machinery control panels, automation equipment, and laboratory instruments.
The actuator is round in style and is colored silver, designed for excellent tactile feedback.
