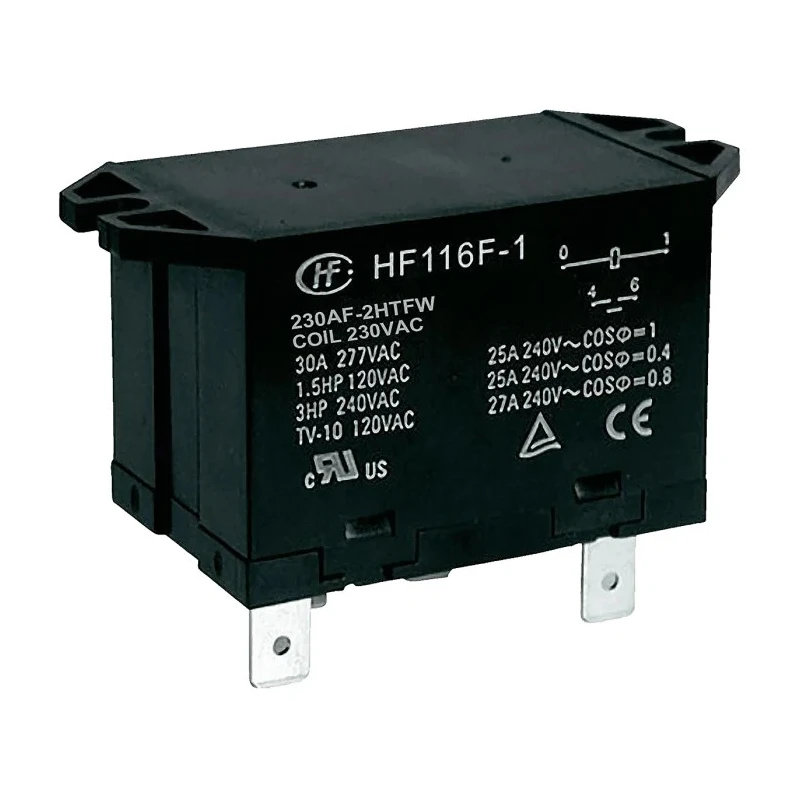

Hongfa Europe GMBH Flange Power Relay 230V AC Coil 25A Switching Current DPST HF116F-1/230AF-2HTFW

Hongfa Europe GMBH HF116F-1/230AF-2HTFW flange power relay is a miniature high-power relay designed for robust industrial and electrical automation applications. It features a 230V AC coil and supports a 25A switching current with a DPST (Double Pole Single Throw) contact configuration, providing reliable switching performance in demanding environments.

The relay's flange mounting allows for stable and secure installation in control panels or electronic devices. It operates efficiently within a temperature range of -55°C to 70°C, suitable for harsh environments. The coil resistance of 20.8kΩ ensures consistent coil performance, while the coil power consumption is rated at 2.7W.

Its silver alloy contacts provide excellent conductivity and durability, complemented by a low contact resistance of 100mΩ for minimal power loss. The relay supports switching of AC voltage up to 277V AC and switching power up to 6.9kVA, making it suitable for a wide range of industrial, manufacturing, HVAC, and automation control systems.

Compact in size, with dimensions of 68mm length, 32.9mm width, and 36.2mm height, and designed with screw terminals for secure electrical connections, this relay offers a versatile solution for engineers and technicians. It complies with RoHS requirements related to hazardous substances, supporting environmentally responsible manufacturing.

Applications include power relay switching in electrical distribution, automation control panels, and industrial machinery requiring high reliability and electrical performance. The flange mount design facilitates installation in limited space areas while maintaining stability.

Package contains a single unit of Hongfa Europe GMBH HF116F-1/230AF-2HTFW relay. The country of origin is China. The relay includes a flange mount type for secure installation. It supports switching AC voltage up to 277V AC with a coil resistance of 20.8kΩ.

Operates reliably in temperatures from -55°C to 70°C. Constructed with silver alloy contact material ensuring durability and low contact resistance at 100mΩ. Dimensions are compact with length 68mm, width 32.9mm, and height 36.2mm suitable for various electrical and automation applications.

Designed with screw type terminals for easy wiring and robust electrical connection. Coil power consumption is 2.7W for efficient operation. No specific industry standards or certifications mentioned. Explore more products in Power Relays on EnvMart for high performance and reliable electrical components.
