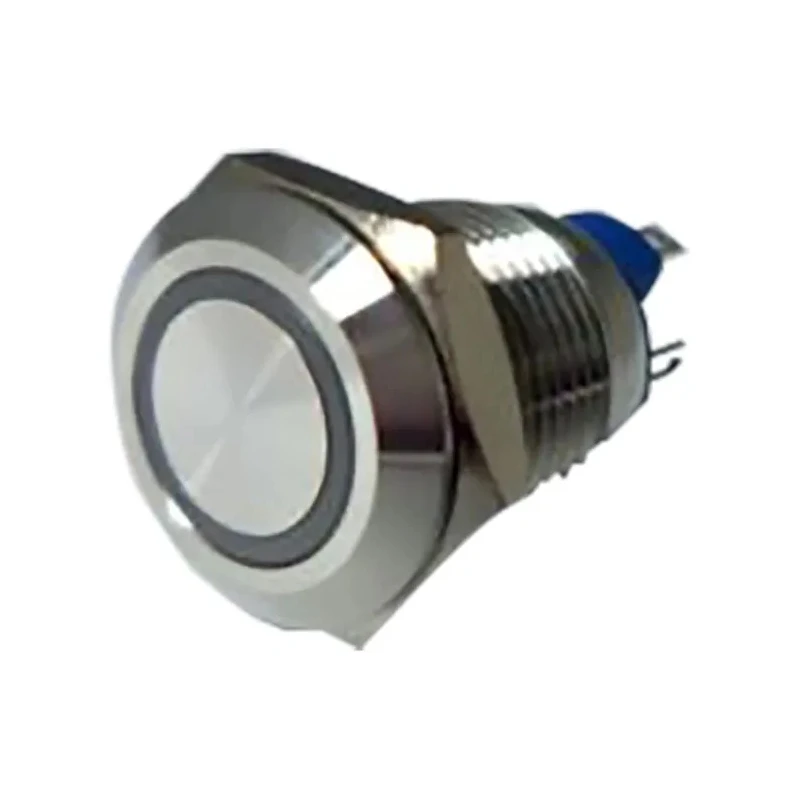

RS PRO Illuminated Momentary Push Button Switch Panel Mount 12 mm Cutout SPST Blue LED IP65 IP67 36 V dc 111-6527

RS PRO 111-6527 Illuminated Momentary Push Button Switch is a high-quality panel-mounted switch designed for industrial and commercial control panels. It features a 12 mm diameter cutout and a silver-coloured round actuator that offers smooth and reliable momentary operation with a single pole single throw (SPST) contact configuration. The switch is illuminated with a blue LED, providing an immediate indication of the switch's active state.

The switch is built to last with corrosion-resistant stainless steel materials and a polyoxymethylene (POM) plunger to enhance strength. It has an expected lifespan of 50,000 mechanical and electrical cycles, ensuring long-term durability even in demanding usage scenarios. Its IP65 and IP67 ingress protection ratings make it resistant to dust ingress, water sprays, and short-term immersion, suitable for harsh or outdoor environments.

The wide operating temperature range from -20°C to 55°C allows versatility across various climates and installations. It is rated for low contact DC voltages up to 36 V with a contact current of 15 mA, and it uses quick connect terminals to simplify mounting and electrical connections.

This momentary switch is ideally suited for installations on lift and security control panels, automatic doors, vending machines, and other automated equipment. Its IK08 impact resistance rating up to 5 joules provides vandal resistance, making it a robust solution in public and industrial areas.

The actuator colour is silver with a round style for ease of operation. This switch is momentary with a SPST contact configuration. It features an IP65 and IP67 rating for dust and water resistance. The switch operates reliably within a temperature range of -20°C to 55°C.

Designed for 36 V DC contact voltage and a contact current rating of 15 mA. Quick connect terminal type ensures fast installation. The illuminated blue LED provides clear status indication when activated. Constructed with corrosion-resistant materials for enhanced durability.

Complies with RoHS standards, suitable for industrial and commercial applications.

RS PRO products are known for their reliability and quality, making this illuminated Push Button Switch a trusted choice in electronic component applications across manufacturing, automation, building controls, and more. Explore the RS PRO range on EnvMart for complementary control components and related industrial-grade products.
