APEM TP Series Push Button Switch Momentary PCB SPST 20 V dc 20 V ac TP33P0080

The APEM TP33P0080 is a momentary push button switch from the TP series, featuring a single pole single throw (SPST) contact configuration optimized for printed circuit board (PCB) mounting. Designed for low level switching, this switch is equipped with gold-plated contacts that provide excellent conductivity and longevity.

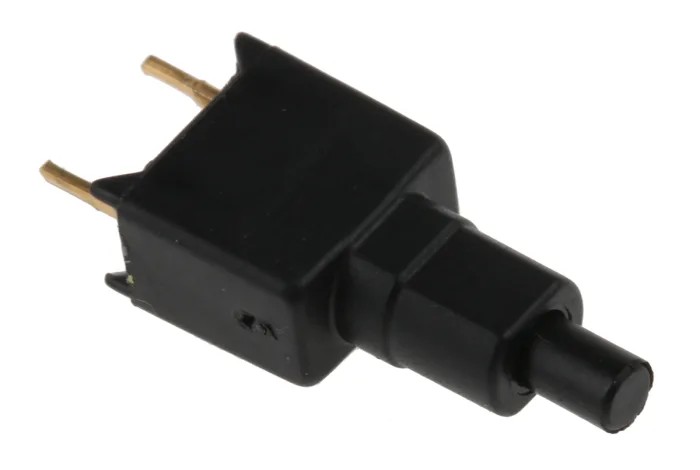

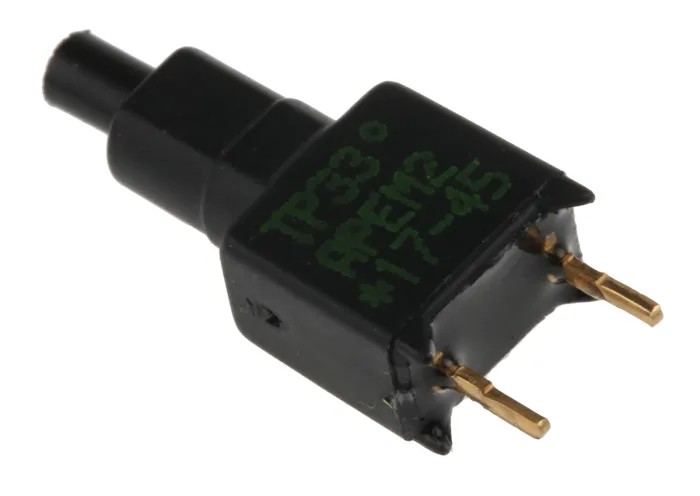

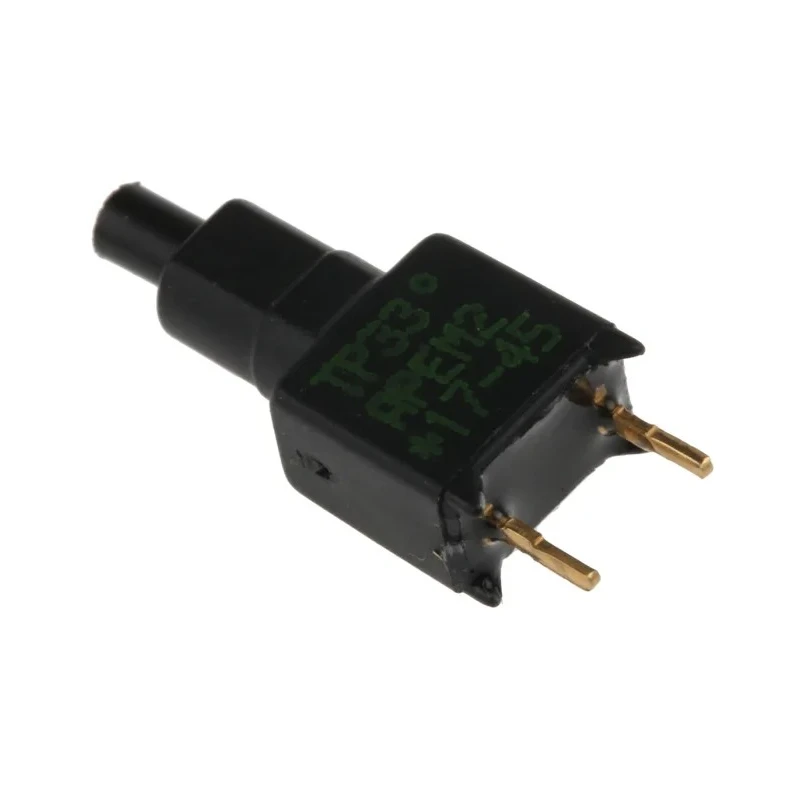

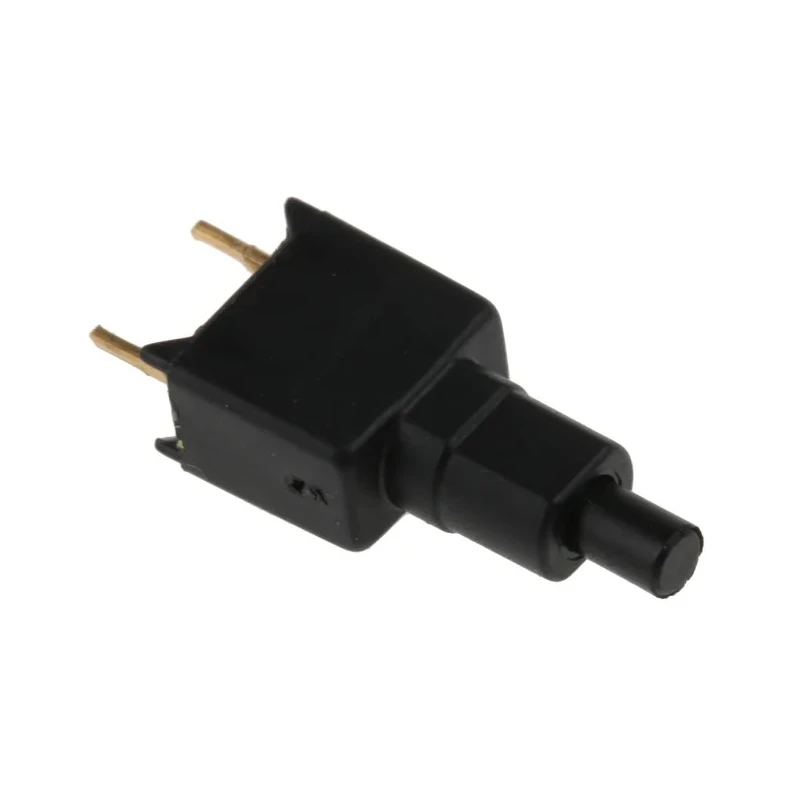

The actuator is black with a cylindrical style, allowing for precise user operation. The switch's construction is fully sealed, making it suitable for immersion cleaning processes and resistant to environmental contaminants. It can withstand wave soldering temperatures of 260°C for 5 seconds without damage, facilitating integration into modern assembly lines.

Operating temperature ranges from -30°C to 85°C, accommodating a variety of industrial and commercial environments. The switch supports a maximum contact current of 400mA, appropriate for sensitive electronic circuits and automation systems.

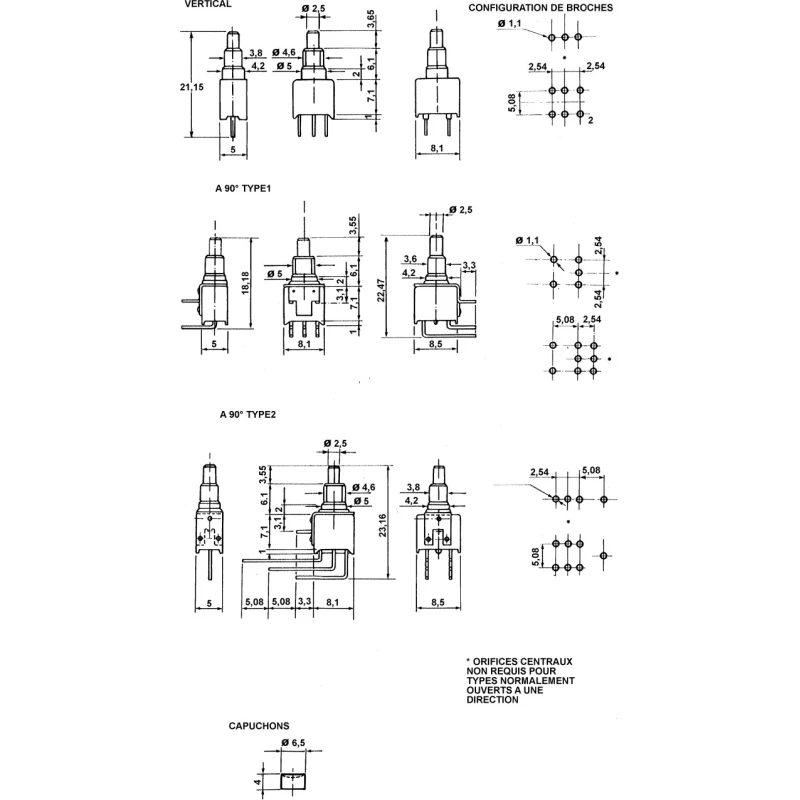

Three terminal types are available: vertical, horizontal right angled, and vertical right angled, enabling design flexibility and space-saving layouts on PCBs. This versatility makes it well-suited for applications in electrical equipment, industrial control panels, and automation devices.

Manufactured to comply with RoHS directives, the APEM TP33P0080 ensures environmentally conscious manufacturing standards. Originating from France, it exemplifies European quality and reliability.

Overall, the APEM TP33P0080 momentary push button switch is a compact, robust, and highly reliable solution suitable for diverse industrial, laboratory, manufacturing, HVAC, and commercial electrical uses where precise momentary actuation is required.

User can select from three terminal types: vertical, horizontal right angled, and vertical right angled for space-saving configurations. Switch features gold-plated contacts for enhanced conductivity and durability. The switch is totally sealed, suitable for immersion cleaning and wave soldering up to 260°C for 5 seconds.

Actuator color is black with a cylinder style for ergonomic operation. Operates within -30°C to 85°C temperature range for wide application tolerance. Supports a maximum contact current of 400mA. Complies with RoHS environmental standards.
