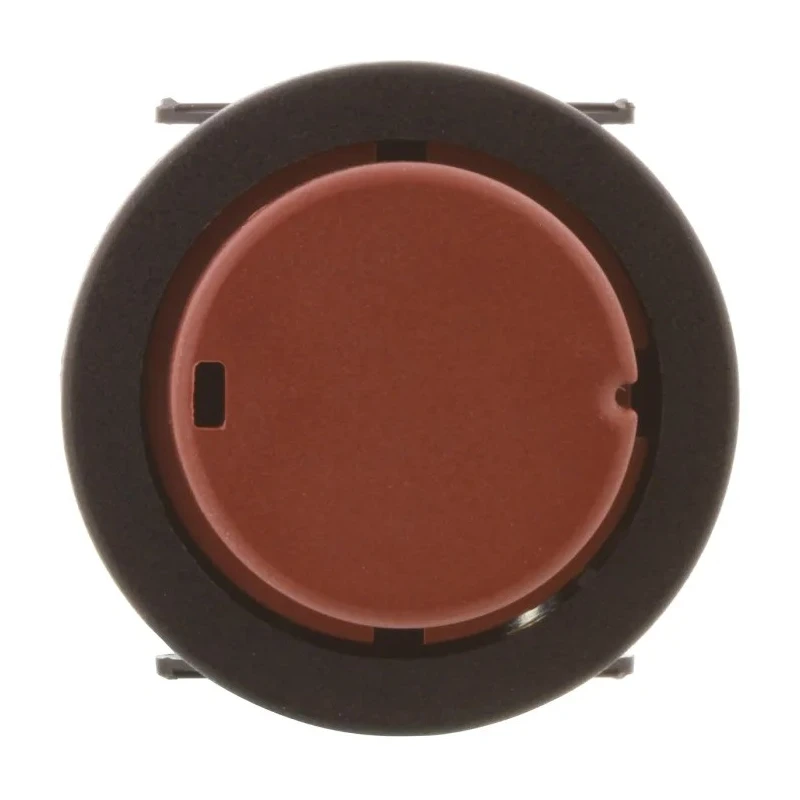

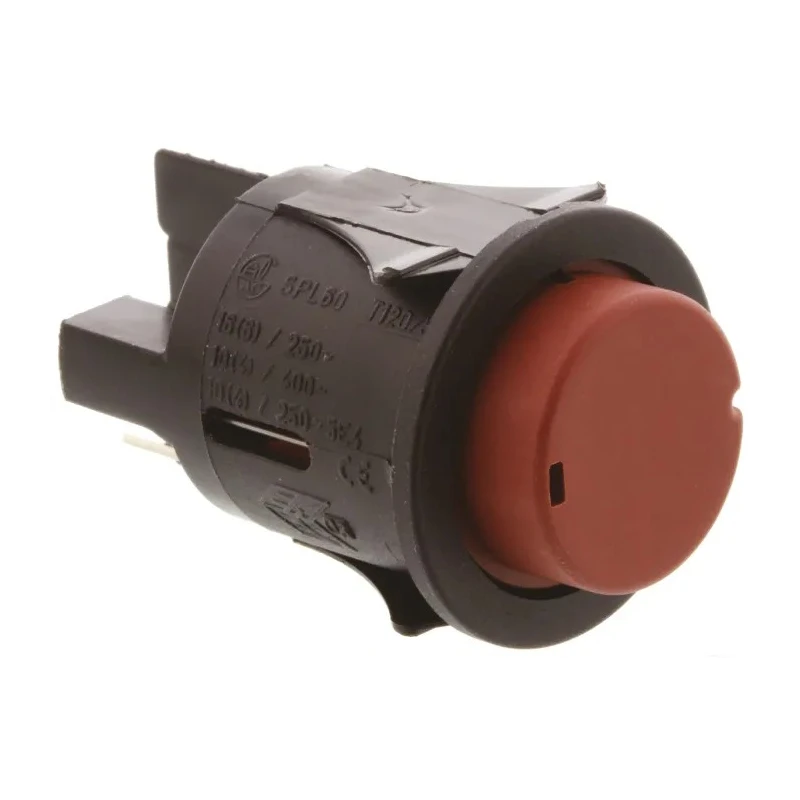

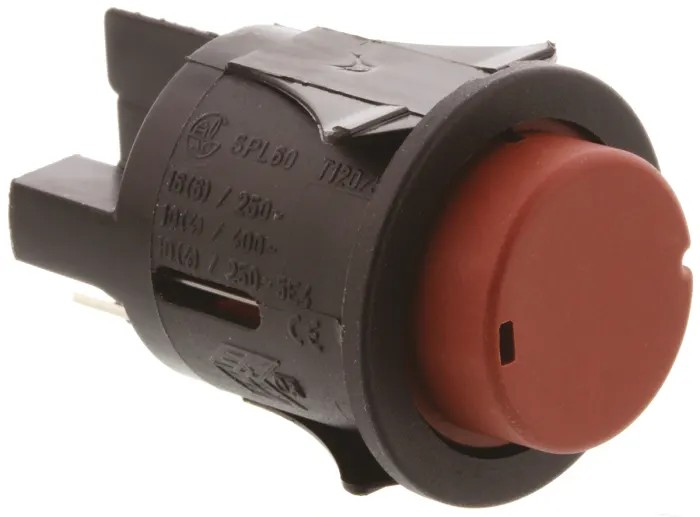

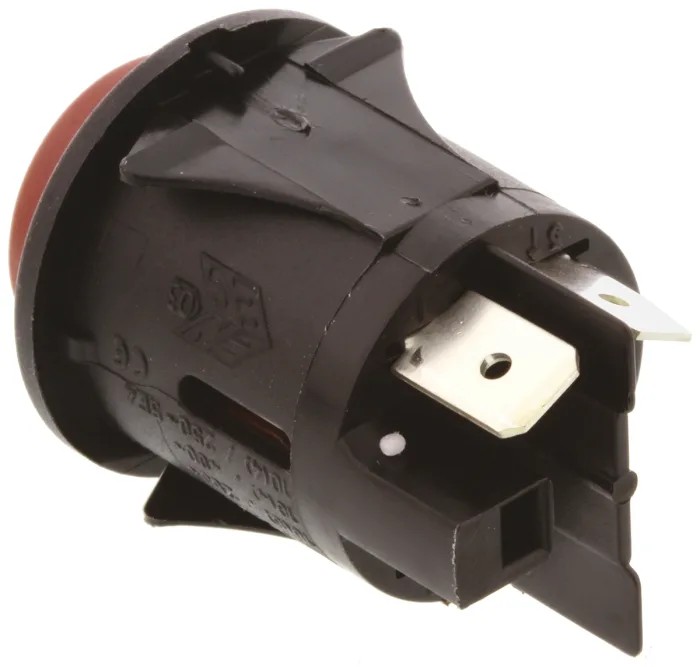

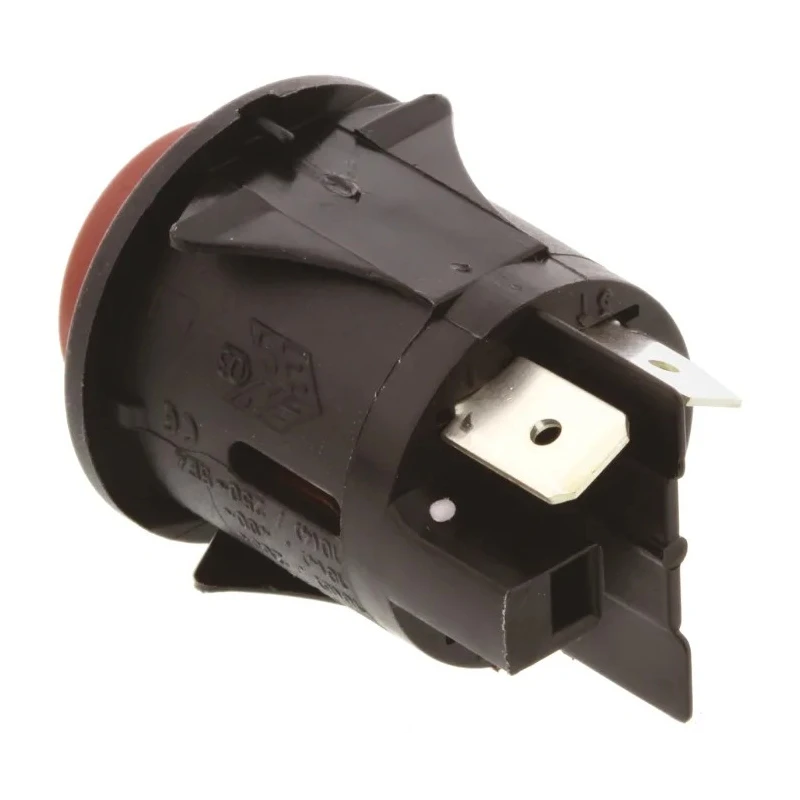

RS PRO Push Button Switch Latching Panel Mount SPST Red LED IP67 250 V AC 319-348
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Dimensions | Depth behind panel 34mm, max. panel thickness 2.5, panel cut-out 25mm |
| Model | 319-348 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Panel Cutout Size | 25 mm |
| Terminal type | Tab |
| Standards/Approvals | CSA, UL |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Red |
| Actuator Style | Button |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a red actuator button for clear identification.
- It operates on a latching mechanism providing on-off control.
- Rated for 250 V AC voltage with a contact current of 16A.
- Ingress protection rating of IP67 ensures dust-tight and water protection.
- Constructed with silver contacts and self-extinguishing UL94V-2 thermoplastic for safety.
- Mechanical life exceeds 105 operations for reliable performance.
- Compatible with panel cutouts of 25 mm diameter and maximum panel thickness of 2.5 mm.
- Approved to CSA and UL standards ensuring quality and compliance.
Product Description
RS PRO 319-348 is a premium push button switch designed for industrial, electrical, and automation panel applications. Featuring a latching SPST contact configuration, this panel-mounted switch offers reliable on-off control via its red actuator button with integrated LED illumination. Suitable for 25 mm panel cutouts, it accommodates panel thicknesses up to 2.5 mm and has a depth behind the panel of 34 mm.
The switch operates at 250 V AC with a contact rating of 16A and complies with CSA and UL approvals, supporting safe integration in demanding environments. Its IP67 ingress protection ensures complete dust-tight sealing and protection against temporary water immersion, making it ideal for harsh industrial and manufacturing settings.
Constructed from durable, self-extinguishing UL94V-2 thermoplastic housing and silver contacts, this switch withstands temperatures up to 120°C and delivers a mechanical life in excess of 105 operations, ensuring long-term reliability. The latching mechanism provides stable on/off states for process control and automation equipment.
The RS PRO 319-348 push button switch is well suited for applications within electrical control panels, machinery controls, HVAC systems, and other industrial automation installations. Its robust construction and compliance with international standards make it a dependable choice for engineers and technical professionals.
The switch features a red actuator button for clear identification. It operates on a latching mechanism providing on-off control. Rated for 250 V AC voltage with a contact current of 16A. Ingress protection rating of IP67 ensures dust-tight and water protection.
Constructed with silver contacts and self-extinguishing UL94V-2 thermoplastic for safety. Mechanical life exceeds 105 operations for reliable performance. Compatible with panel cutouts of 25 mm diameter and maximum panel thickness of 2.5 mm.
Approved to CSA and UL standards ensuring quality and compliance. Maximum operating temperature rated at 120°C for industrial environments. Explore RS PRO Push Button Switches to find suitable components for your panel control systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, allowing for on-off control.
The maximum operating temperature for this switch is rated at 120°C, suitable for industrial environments.
It has an ingress protection rating of IP67, ensuring it is dust-tight and protected against temporary water immersion.
This unit requires a panel cutout size of 25 mm for proper installation.
The contact current rating for this switch is 16A, suitable for various applications.
It features a red button actuator, which provides clear identification when in use.
The switch is approved to CSA and UL standards, ensuring quality and compliance for industrial applications.
The depth behind the panel for this model is 34 mm, which should be considered during installation.
It is constructed with silver contacts and self-extinguishing UL94V-2 thermoplastic for enhanced safety.
This unit operates on a latching mechanism, providing stable on-off states for control applications.
The voltage rating for this push button switch is 250 V AC, making it suitable for various electrical applications.
The mechanical life of this model exceeds 105 operations, ensuring reliable performance over time.
