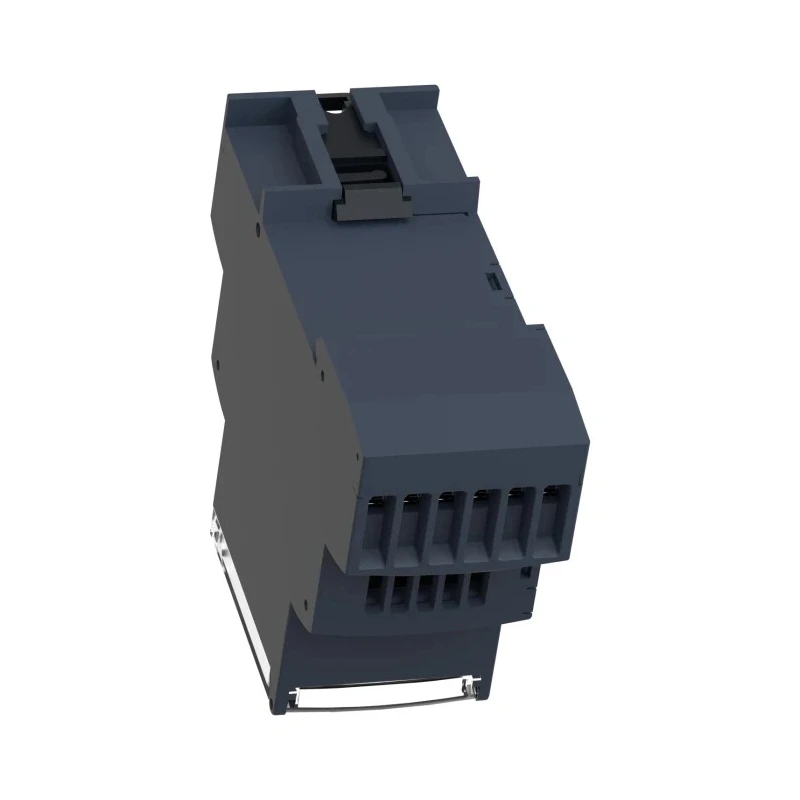

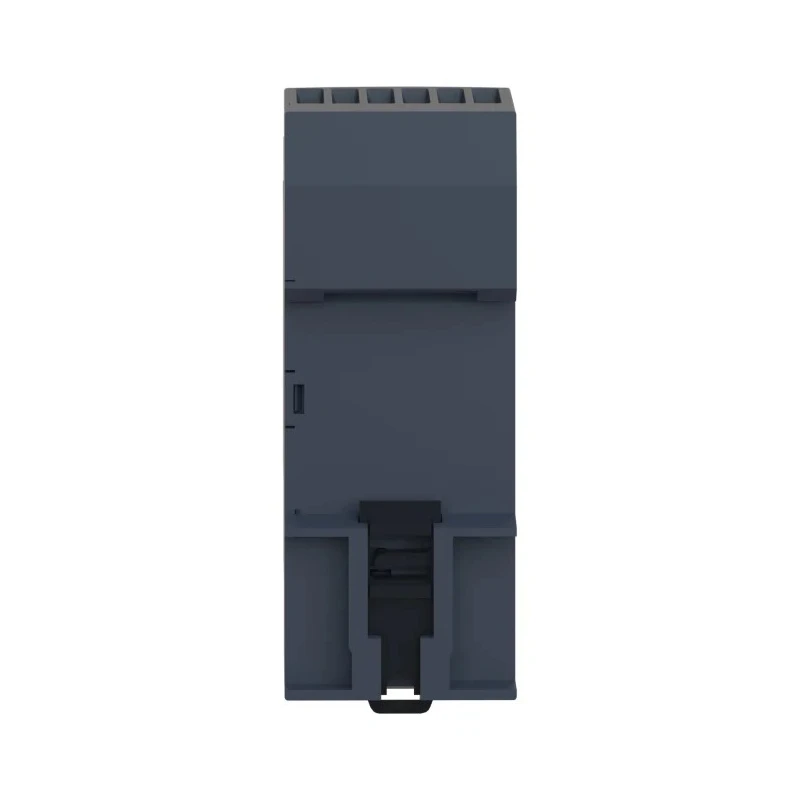

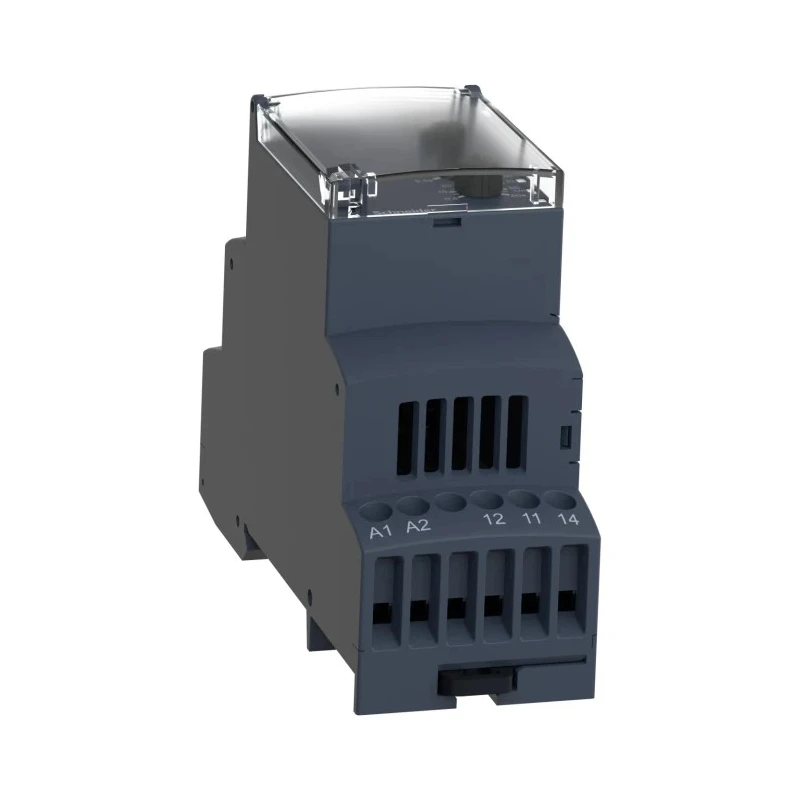

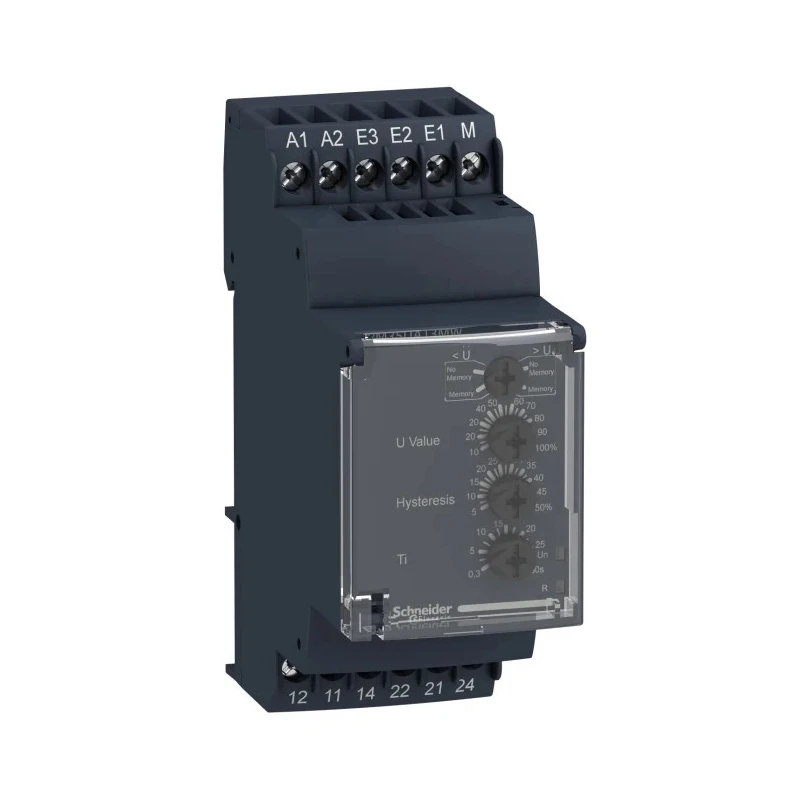

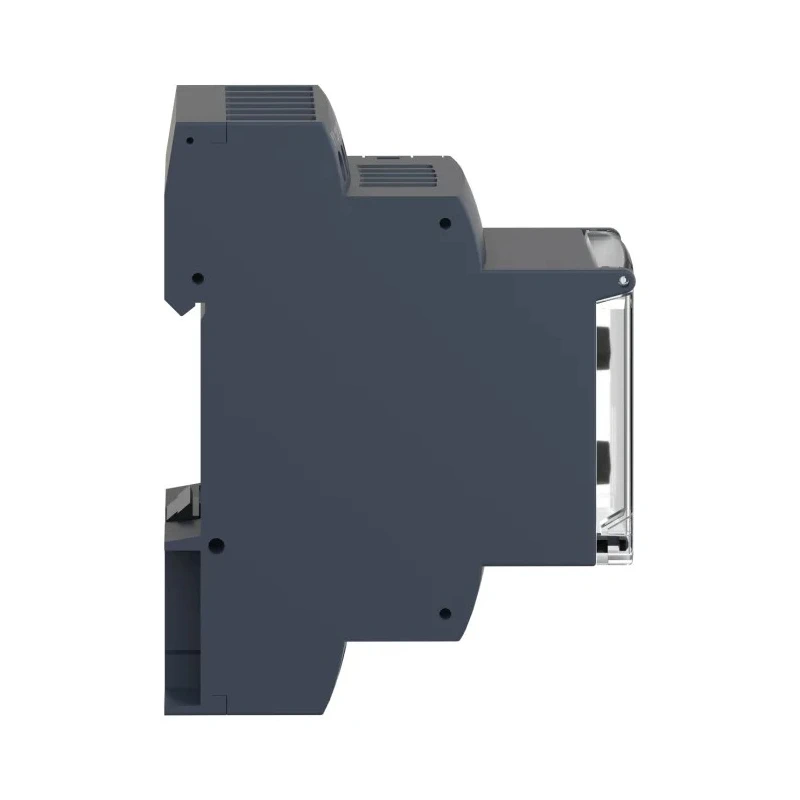

Schneider Electric Harmony Control Monitoring Relay DPDT, Voltage Monitoring, DIN Rail Mount RM35UA13MW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 90mm |
| Function | Phase Failure Detection, Phase Sequence |
| Length | 72mm |
| Model | RM35UA13MW |
| IP Rating | IP30, IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | Harmony Control |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +50°C |
| Terminal type | Screw |
| Standards/Approvals | CE, CSA, UL |
| Switching Voltage | 250V ac/dc |
| Contact Current | 5A |
| Supply DC Voltage | 240 V dc |
| Supply AC Voltage | 240V ac |
Key Features
- Equipped with dual-pole, double-throw contact configuration for versatile switching.
- Adjustable time delay from 0.3 to 30 seconds for tailored voltage response.
- Supports voltage sensing range from 15 to 600V across AC and DC supplies.
- Robust screw terminal connections ensure secure installation.
- Maximum switching capacity of 1250 VA suitable for demanding applications.
- Operates effectively within a -20°C to +50°C temperature range for industrial environments.
- IP rating of IP30 and IP20 providing basic protection in control panels.
- Suitable for industrial automation, energy distribution, and protection of sensitive electronics.
Product Description
Schneider Electric RM35UA13MW Harmony Control series monitoring relay with DPDT contact configuration offers precise voltage monitoring for industrial and automation systems. It is designed to detect phase failure, phase sequence errors, undervoltage, and overvoltage conditions, thereby safeguarding electrical equipment and ensuring effective voltage control.
This monitoring relay supports both 240V AC and 240V DC supply voltages and accommodates a wide voltage sensing range from 15 to 600 volts. It features adjustable time delay settings between 0.3 and 30 seconds, allowing customization based on application requirements.
The device uses screw terminals for secure wiring and mounts easily on a DIN rail for space-efficient installation. Its compact form factor (90mm height, 72mm length, 35mm width) fits well within industrial control panels. With a maximum switching capacity of 1250 VA and a contact current rating of 5 amperes, this relay is suitable for robust electrical control tasks.
The relay complies with standards including CE, CSA, and UL, making it fit for various global industrial applications. Its operating temperature range from -20°C to +50°C and IP30/IP20 ratings enable reliable performance in typical industrial ambient conditions.
Applications include voltage level monitoring in industrial machinery, protecting sensitive electronic devices, real-time monitoring in automation systems, managing voltage in control panels, and enhancing safety in energy distribution systems.
Dual-pole double-throw (DPDT) contact configuration simplifies switching operations. Time delay adjustable between 0.3 and 30 seconds for flexible response. Voltage sensing range of 15 to 600V AC/DC ensures broad compatibility.
Screw terminal connections for ease and security of installation. Maximum switching capacity of 1250 VA supports high-performance operations. DIN rail mounting enables compact, stable panel installation. Wide operating temperature range suited for industrial environments.
IP30 and IP20 protection ratings for safe use in electrical enclosures. Compliant with CE, CSA, and UL standards for quality assurance.
This Schneider Electric RM35UA13MW monitoring relay represents an ideal choice for industrial, laboratory, construction, manufacturing, HVAC, and energy distribution setups where accurate voltage monitoring and protection are critical. Its robust build and reliable operation enhance system safety and efficiency.
Explore more Monitoring Relays and industrial electrical components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage sensing range from 15 to 600V across both AC and DC supplies.
The maximum switching capacity is 1250 VA, making it suitable for demanding applications.
It has a height of 90mm, a length of 72mm, and a width of 35mm.
This model is designed for DIN rail mounting, allowing for compact and stable installation in control panels.
The time delay can be adjusted from 0.3 to 30 seconds, allowing for tailored voltage response.
It features a dual-pole, double-throw (DPDT) contact configuration for versatile switching operations.
It operates effectively within a temperature range of -20°C to +50°C.
It uses screw terminals for secure wiring connections.
It complies with CE, CSA, and UL standards, ensuring quality assurance for various industrial applications.
This monitoring relay is suitable for applications such as voltage level monitoring in industrial machinery and protecting sensitive electronic devices.
The contact current rating is 5 amperes, suitable for robust electrical control tasks.
It has IP30 and IP20 ratings, providing basic protection in control panels.
