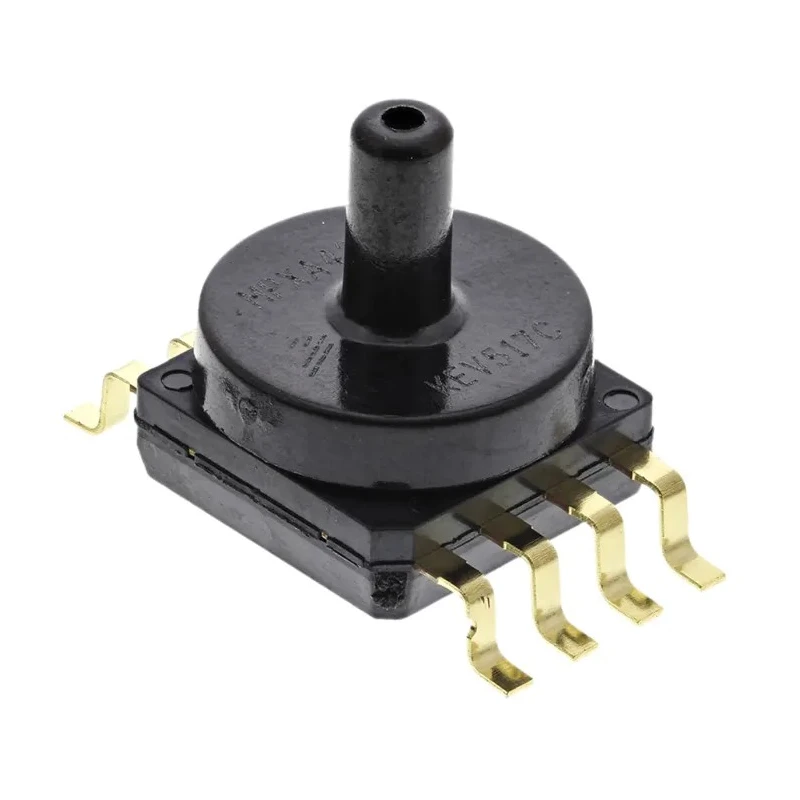

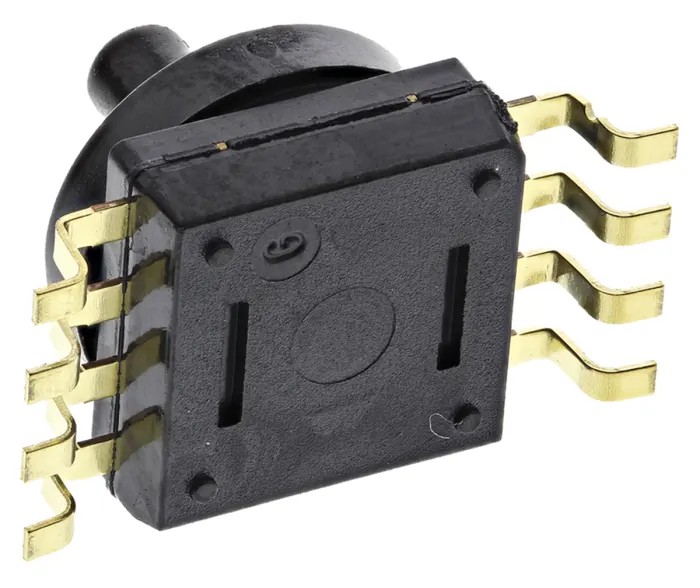

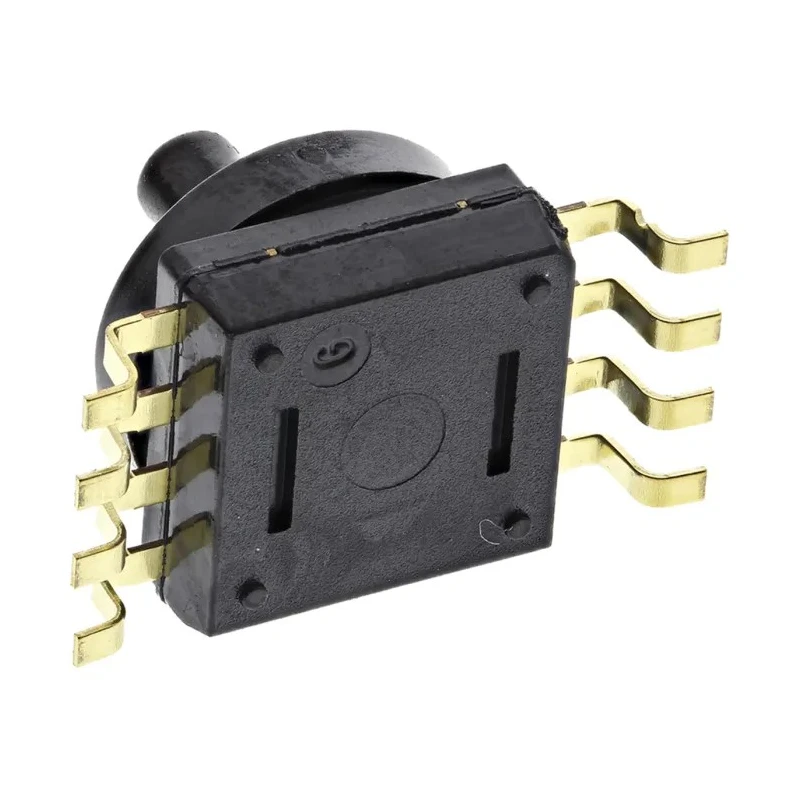

NXP Absolute Pressure Sensor Surface Mount SOIC 8-Pin 4.75-5.35V ±1.5% Accuracy MPXA4250AC6U
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1.5 % |
| Brand | NXP |
| Maximum Operating Pressure | 250 kPa |
| Height | 5.84mm |
| Length | 10.79mm |
| Model | MPXA4250AC6U |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | MPXA4250AC6U |
| Maximum Operating Temperature | 125°C |
| Port Type | Single Axial Barbless |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 20mV/kPa |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 4.9V |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.35V |
| Minimum Supply Voltage | 4.75V |
| Minimum Output Voltage | 200mV |
| Minimum Operating Pressure | 20kPa |
| Maximum Overload Pressure | 1000kPa |
Key Features
- This sensor measures absolute pressure accurately within a range up to 250 kPa.
- Typical sensitivity of 20mV/kPa ensures precise output voltage proportional to pressure.
- Maximum overload pressure capability of 1000 kPa provides robustness in demanding applications.
- Operates reliably within temperatures from -40°C up to 125°C, suitable for varied industrial environments.
- Compact dimensions with length 10.79mm and height 5.84mm enable easy PCB integration.
- The device features a single axial barbless port type and 8-pin SOIC surface mounting package for assembly compatibility.
- Maximum output voltage reaches 4.9V, with a minimum output voltage of 200mV ensuring measurable signal range.
- Bearing RoHS compliance, this sensor suits electronics requiring environmental standards.
Product Description
NXP MPXA4250AC6U Absolute Pressure Sensor is a high precision sensor in a surface mount SOIC 8-pin package, designed to measure absolute pressure reliably over a range up to 250 kPa. Operating at supply voltages between 4.75V and 5.35V, this sensor offers ±1.5% accuracy and a typical sensitivity of 20 mV/kPa, making it ideal for a variety of industrial and electronic applications requiring precise pressure measurement.
Its compact physical size with length of 10.79mm and height of 5.84mm ensures it can be easily integrated into densely packed electronic systems. The device supports a maximum overload pressure of 1000 kPa, providing durability against pressure spikes. It functions efficiently in temperature ranges from -40°C to 125°C, suitable for harsh industrial, environmental monitoring, HVAC, and laboratory instrumentation environments.
The sensor includes a single axial barbless port and features RoHS compliance, catering to electronics with stringent environmental requirements. Although not certified for automotive standards, it is widely applicable in electronic component systems, semiconductor assemblies, and sensor IC applications.
This sensor offers accurate absolute pressure sensing with ±1.5% tolerance. Compact SOIC 8-pin surface mount package enables convenient PCB assembly. Typical sensitivity of 20mV/kPa ensures responsive voltage output. Supports operating voltages from 4.75V to 5.35V for versatile power supply design.
Wide operating temperature from -40°C to 125°C suitable for industrial use. Maximum operating pressure of 250 kPa with overload up to 1000 kPa ensures robustness. RoHS compliant for environmental safety standards in electronics manufacturing.
Output voltage ranges between 200mV minimum and 4.9V maximum for precise measurement.
This product is ideal for electronics manufacturing, industrial instrumentation, laboratory equipment, HVAC systems, and water or gas flow measurement where absolute pressure sensing is critical.
Explore more sensor ICs and electronic components for your industrial and laboratory needs on EnvMart.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 250 kPa, with a maximum overload pressure capability of 1000 kPa.
This model has an accuracy of ±1.5%, ensuring precise pressure measurements.
The typical sensitivity of this sensor is 20 mV/kPa, providing a responsive voltage output proportional to pressure changes.
It operates reliably within a temperature range from -40°C to 125°C, making it suitable for various industrial environments.
This sensor has compact dimensions of 10.79mm in length and 5.84mm in height, facilitating easy PCB integration.
The output voltage ranges from a minimum of 200mV to a maximum of 4.9V, allowing for precise measurement signals.
This model features a surface mount design with an 8-pin SOIC package for compatibility with assembly processes.
It operates at supply voltages between 4.75V and 5.35V, allowing for versatile power supply design.
The sensor includes a single axial barbless port type, designed for effective pressure measurement.
Yes, this sensor is RoHS compliant, making it suitable for electronics that require adherence to environmental safety standards.
It is ideal for applications in industrial instrumentation, HVAC systems, laboratory equipment, and water or gas flow measurement.
The minimum operating pressure for this model is 20 kPa, allowing it to measure a wide range of pressures accurately.
