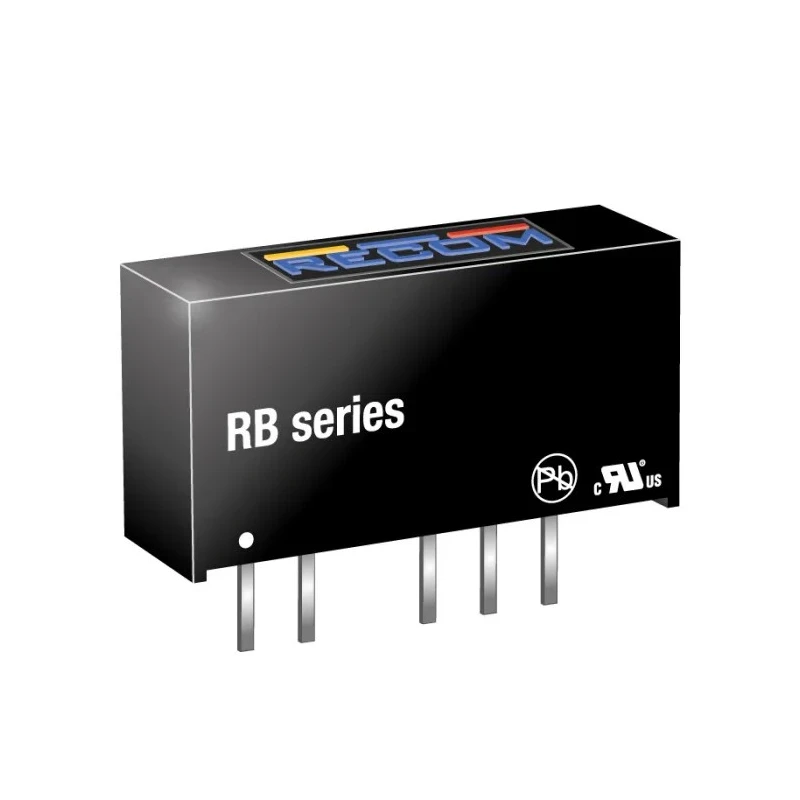

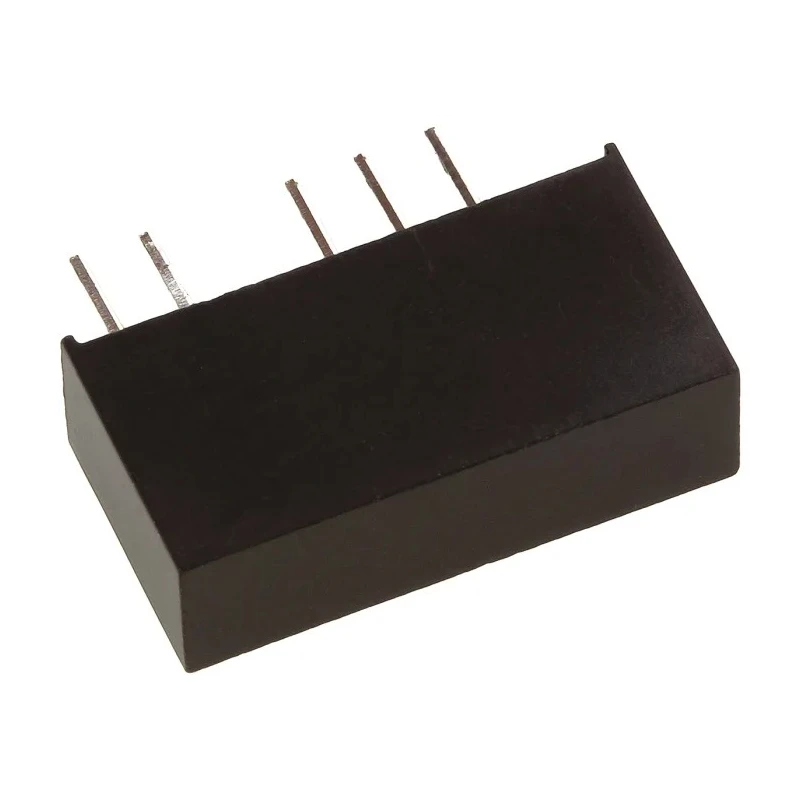

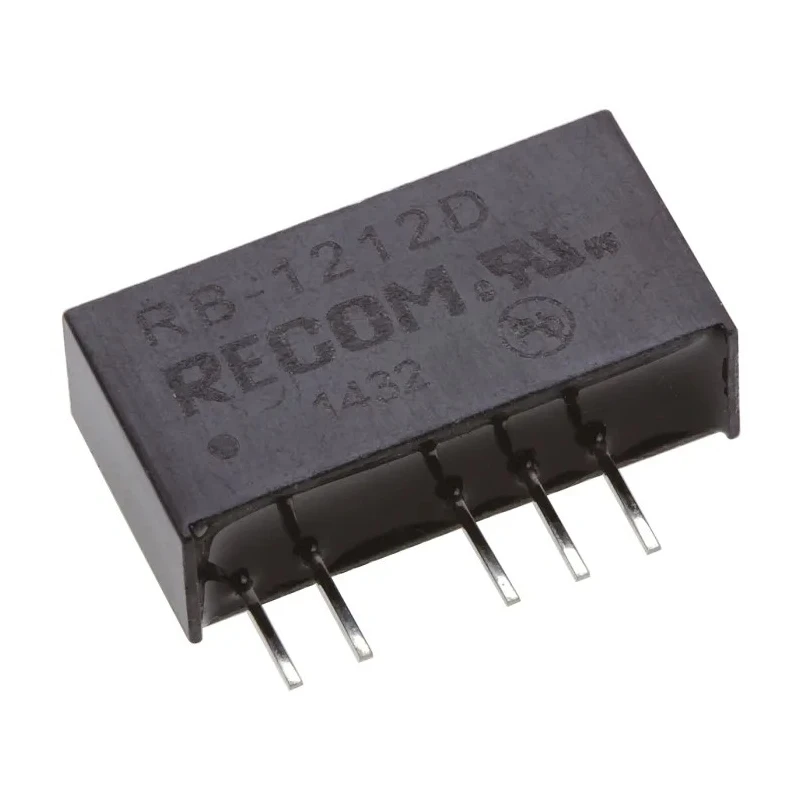

Recom DC/DC Converter Dual Output 12V DC -12V DC 42mA 12V DC Input 10.8V Minimum Input 1W Through Hole Mount RB-1212D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RB DC/DC Converter, 12V dc, -12 V dc/ 42 mA |
| Brand | Recom |
| Efficiency | 82% |
| Length | 19.6mm |
| Model | RB-1212D |
| Depth | 10.2mm |
| Gross Weight | 2.2g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | RB |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 151000h |
| Number of outputs | 2 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 12V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 12, -12V dc |
| Output Current 1 | 42mA |
| Output Voltage Adjustment Range | 3.3 to 24 V |
| Isolation Voltage | 500V ac |
Key Features
- Compact dimensions of 19.6 mm length, 10.2 mm width, and 10.2 mm depth enable space-efficient mounting.
- Wide operating temperature range from -40°C to 85°C supports use in extreme environments.
- High isolation voltage of 500V AC ensures safe electrical separation for sensitive electronics.
- Efficiency rating of 82% maximizes power utilization and minimizes heat generation.
- Standardized SIP7 package offers easy integration into circuit boards.
- Unregulated dual outputs suitable for applications tolerant to voltage fluctuations.
- Flame-retardant housing provides self-extinguishing protection to prevent fire spread.
- 7-pin configuration designed for through-hole mounting ensures secure physical and electrical connections.
Product Description
Recom RB-1212D is a dual output DC/DC converter designed for industrial and electronic applications requiring reliable isolated power conversion. The device outputs 12V DC and -12V DC at a current of 42mA, powered from a nominal 12V DC input voltage with a minimum input of 10.8V. It is rated at 1W maximum output power and operates efficiently at 82% efficiency.
The converter features a compact SIP7 through-hole package measuring 19.6 mm in length, 10.2 mm in both width and depth, making it suitable for limited space environments. With a wide operating temperature range from -40°C up to 85°C, it tolerates harsh environmental conditions, making it ideal for robust industrial, telecommunications, data center, and consumer electronics applications.
Electrical safety is ensured through 500V AC isolation voltage which protects sensitive circuits from surges and faults. The unregulated dual outputs provide flexibility while requiring application designs accommodating voltage fluctuations.
The housing of the RB-1212D is made of flame-retardant material that self-extinguishes within 10 seconds, improving safety in case of electrical faults. Installation is straightforward with a standardized SIP7 footprint and 7-pin configuration optimized for through-hole mounting, ensuring secure mechanical and electrical connections.
This DC/DC Converter is well suited for low power DC applications requiring isolated dual voltage rails, with reliability supported by a high MTBF of 151,000 hours. It complies with CAN, CSA C22.2 No. 60950-1, IEC60950-1, and UL 60950-1 approvals, emphasizing its quality and safety.
Compact design fits small PCBs and constrained mounts. Wide operating temperature range supports use in extreme conditions. High isolation voltage offers surge protection. Efficient power conversion minimizes heat dissipation.
Flame-retardant casing enhances safety. Industry approvals ensure compliance and reliability. Through-hole SIP7 mounting for ease of installation. Unregulated output suitable for tolerant applications. Long service life with high MTBF.
Explore the Recom range for dependable power conversion solutions in electronics, industrial control, telecommunications, and data center infrastructure at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 1W.
It operates with a nominal input voltage of 12V DC, with a minimum input voltage of 10.8V.
The converter provides dual outputs of 12V DC and -12V DC.
It has an efficiency rating of 82%, which maximizes power utilization.
The dimensions are 19.6 mm in length, 10.2 mm in width, and 10.2 mm in depth.
The isolation voltage is rated at 500V AC, ensuring safe electrical separation.
It operates within a wide temperature range from -40°C to 85°C.
This model features two outputs.
It utilizes a through-hole mounting type with a standardized SIP7 package.
The ripple and noise is specified at 100mV Pk-Pk.
The gross weight of this model is 2.2 grams.
It complies with CAN, CSA C22.2 No. 60950-1, IEC60950-1, and UL 60950-1 standards.
