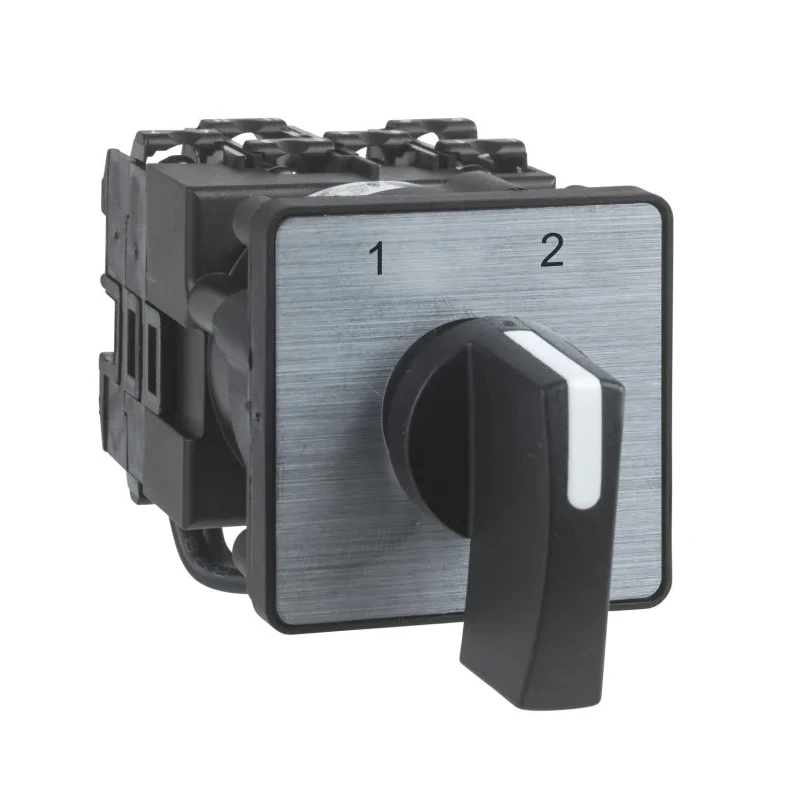

Schneider Electric Rotary Switch Cam Switch, 10A Maximum Current, Screw Terminal, IP65, IP20, 3 Phase, 6 Poles K10B011UCH

Schneider Electric K10B011UCH rotary switch cam switch handle actuator is a high-performance device designed to manage electrical flow in industrial, automation, and control panel applications. With a maximum current capacity of 10A and screw terminal connections, it ensures robust, reliable switching operations within automation systems.

This rotary switch is engineered for three-phase electrical setups and features six poles, enabling flexible changeover functionality suited for a variety of system configurations. The handle actuator provides two distinct positions to simplify operation and setting adjustments while the IP65 protection rating makes it suitable for challenging environments when housed appropriately.

Engineered to operate within a wide temperature range from -20°C to 55°C, this device offers consistent functionality under varied climatic conditions. Its front mounting design requires installation through a Ø16mm or Ø22mm hole, facilitating integration into panels or machinery housings.

The switch utilizes screw terminals that allow secure connections with captive screw clamps, accommodating conductors up to 1.5mm² in diameter, ensuring maintenance-friendly wiring. The mechanical operation durability is rated for one million cycles, highlighting its suitability for demanding industrial uses.

Compact in size (30mm x 30mm x 76mm), this actuator is space-efficient, enabling easy installation even where panel space is limited. Compliance with international standard EN/IEC 60947-5-1 guarantees adherence to electrical safety and performance requirements.

Applications include use in industrial machinery requiring consistent switch control, building management systems, and electrical control applications within automation setups. Its sturdy design and handle actuator ensure stable and secure switching, enhancing operational safety and reliability.

Manufactured in Austria by Schneider Electric, this component belongs to the reputed Harmony K Series, recognized for quality and durability in electrical switching solutions. Explore more products within Rotary Switches under Switches & Sockets category on EnvMart.

Designed for three-phase electrical systems with six poles for efficient current flow. Front mount type ensures easy installation using Ø16mm or Ø22mm holes. IP65 and IP20 ratings provide robust protection against dust and water ingress.

Operates reliably between -20°C and 55°C environment temperatures. Durable handle actuator allows straightforward control with two-position operation. Mechanical life rated at 1,000,000 operations for long-lasting performance.

Contact voltage rating of 690V supports various industrial electrical setups. Screw terminals allow for secure and easy wiring with a clamping capacity of 2 x 1.5mm² wires. Compact dimensions of 30mm length, 30mm width, and 76mm depth for space-efficient mounting.

Compliant with EN/IEC 60947-5-1 standards ensuring quality and safety.
