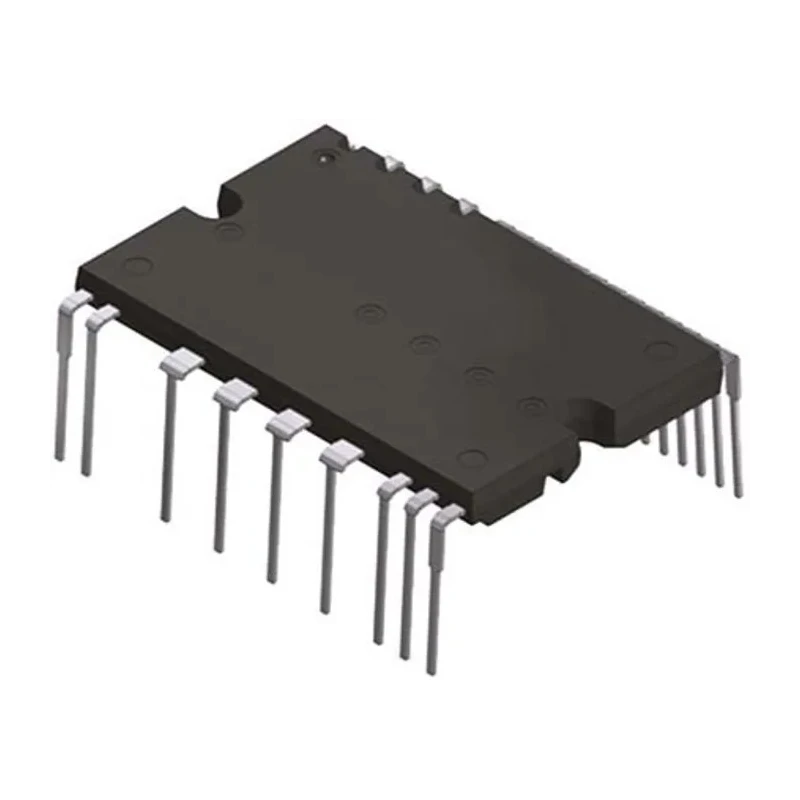

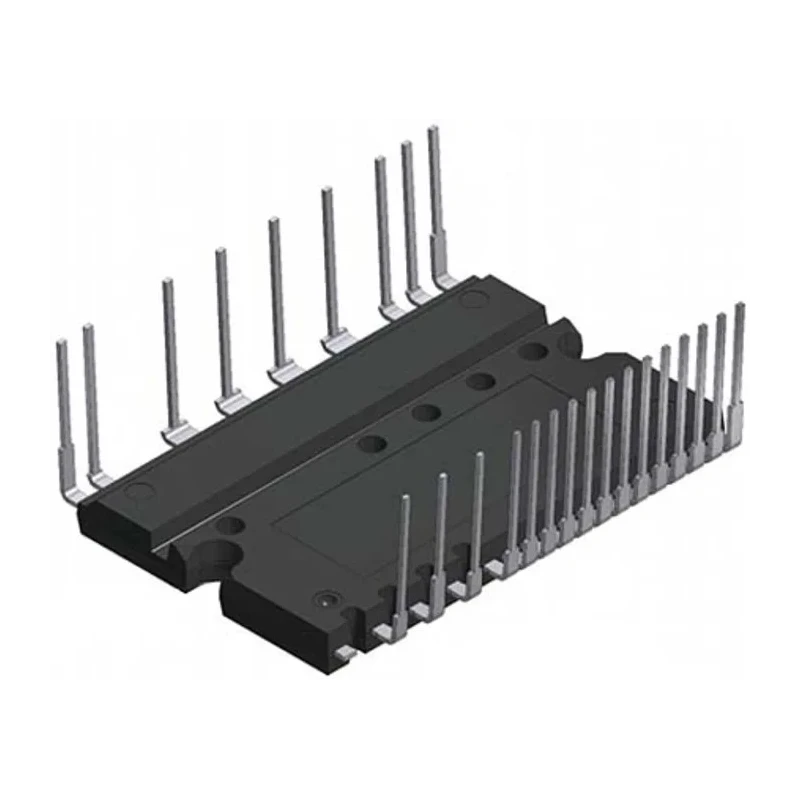

STMicroelectronics Microcontroller SLLIMM 2nd Series, 26-Pin SDIP2F, 20V Max Supply Voltage, 30W Power STGIF5CH60TS-L
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 38mm |
| Model | STGIF5CH60TS-L |
| Width | 24mm |
| Mount Type | Through Hole |
| Series | SLLIMM - 2nd |
| Maximum Operating Temperature | 125°C |
| Package Type | SDIP2F |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL 1434 CA 4 |
| Pin Count | 26 |
| Maximum Supply Voltage | 20V |
| Maximum Power Dissipation Pd | 30W |
| Minimum Supply Voltage | 300mV |
Key Features
- Offers maximum power dissipation of 30W for reliable performance.
- Operates across a temperature range from -40°C to 125°C for wide application suitability.
- Includes a 26-pin through-hole mount SDIP2F package for easy integration.
- Designed with advanced EMI behavior and outstanding robustness for motor control.
- Features undervoltage lockout and internal bootstrap diode for enhanced safety.
- Supports 3.3V, 5V, and 15V CMOS/TTL inputs with separate open emitter outputs.
- Smart shutdown and fault protection against over temperature and over current are integrated.
- Isolation rating up to 1500 Vrms/min ensuring safe operation.
Product Description
STMicroelectronics STGIF5CH60TS-L is a microcontroller from the SLLIMM™ 2nd Intelligent Power Modules series, designed for improving efficiency in motor drive applications operating up to 20 kHz. This 26-pin SDIP2F through-hole mount microcontroller supports a maximum supply voltage of 20V and can dissipate up to 30W power, making it robust and highly efficient for industrial use.
The module is optimized for low conduction and switching energy combined with excellent EMI behavior, which enhances overall system performance and reliability in applications such as industrial motor controllers, HVAC systems, and manufacturing automation.
Operating temperature ranges from -40°C up to 125°C, ensuring reliable function under harsh environmental conditions. The module is constructed with a full molded or DBC-based package delivering high collector currents, with a maximum operating junction temperature of 175°C, supporting 600V and DC ratings from 8A to 35A at 25°C.
Additional features include undervoltage lockout, internal bootstrap diode, interlocking function, smart shutdown, and comparator-based fault protection to guard against over temperature and over current, enhancing device safety and durability.
The STMicroelectronics STGIF5CH60TS-L microcontroller has a 1500 Vrms isolation rating and supports 3.3V, 5V, and 15V CMOS/TTL inputs, along with separate open emitter outputs, making it versatile and suitable for demanding industrial, laboratory, and automation environments.
Maximum power dissipation of 30W ensuring stable operation. Wide temperature operating range from -40°C to 125°C. Through-hole mount SDIP2F package with 26 pins for easy PCB integration. Optimized for low EMI and robust motor drive applications.
Integrated safety features including fault protection and undervoltage lockout. Isolation rating of 1500 Vrms/min for electrical safety. Supports multiple voltage input levels and smart shutdown functionality.
This microcontroller module is suitable for industrial automation, electric motor control, HVAC motor drives, and other high-reliability applications requiring efficient power management and protection. Explore the Electronics & Electricals Microcontrollers at EnvMart for comprehensive solutions from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum power dissipation is 30W, ensuring stable operation in various applications.
It operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
This model comes in a 26-pin SDIP2F package, designed for through-hole mounting.
The maximum supply voltage supported is 20V, allowing for versatile application in various systems.
It includes undervoltage lockout, smart shutdown, and fault protection against over temperature and over current.
It supports 3.3V, 5V, and 15V CMOS/TTL inputs, providing flexibility for different applications.
The isolation rating is up to 1500 Vrms/min, ensuring safe operation in electrical applications.
The dimensions are 38mm in length, 24mm in width, and 1.5mm in height.
This microcontroller is suitable for industrial automation, electric motor control, and HVAC motor drives.
It is compliant with UL 1434 CA 4 standards, ensuring it meets specific safety requirements.
The minimum supply voltage is 300mV, allowing for low-voltage operation.
It is optimized for low conduction and switching energy combined with excellent EMI behavior, improving overall system reliability.
