Siemens 3RF2 Series Solid State Relay, 30 A Load, DIN Rail Mount, 460 V Load, 24V DC Control 3RF2130-1AA04

Siemens 3RF2130-1AA04 is a 3RF2 Series Solid State Relay designed for industrial and automation applications requiring reliable switching of loads up to 30 amperes at voltages of up to 460 volts. This relay is built for mounting on DIN rails, enabling efficient use of space and ease of installation in control panels.

The relay is controlled by a 24V DC input with a minimum control voltage of 15V DC. Its zero-cross switching function minimizes electrical noise, making it suitable for sensitive industrial environments. Equipped with screw terminal connections, it allows for quick and secure wiring.

Rated for operation in temperatures ranging from -25°C to 60°C, the unit is rugged and suitable for various environmental conditions. It features an IP20 ingress protection rating which provides protection against fingers or similar objects but not against water ingress.

The device uses thyristor-based output for efficient power switching and has a minimal off-state leakage current of 10mA, reducing energy waste during non-operational phases.

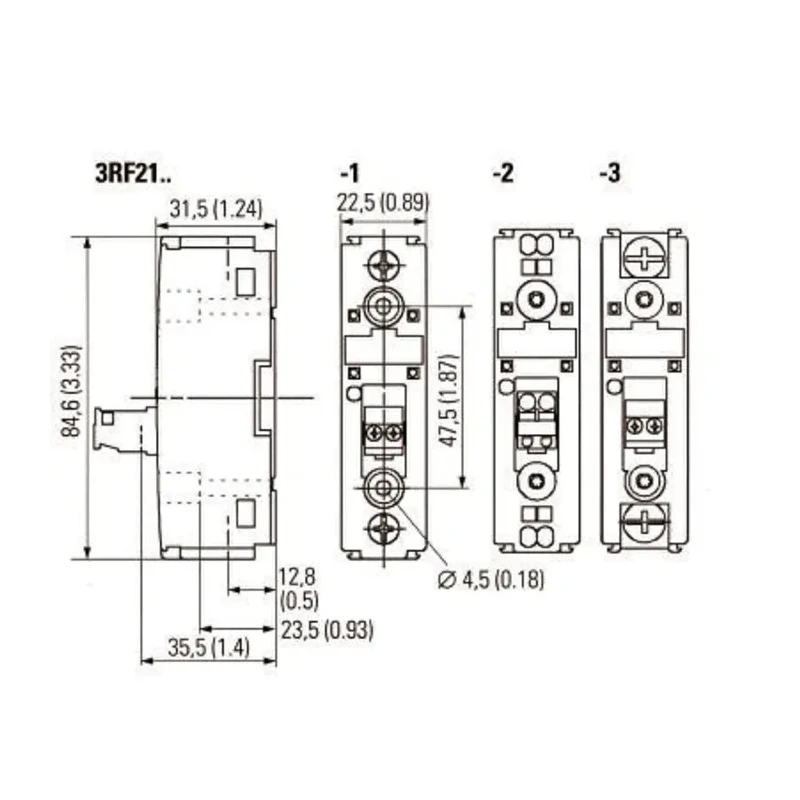

The compact size with 22.5mm width, 22.5mm length, and 85mm height makes it ideal for tightly packed control systems. The product complies with international standards including CSA, EAC, and UR, ensuring safety and operational reliability.

This relay series is well suited for use in manufacturing automation, process control, HVAC systems, and other industrial electrical control setups requiring durable and efficient solid state relays.

Features DIN rail mounting for easy installation and integration. Operates with a 24V DC control voltage and features zero-cross switching functionality. Equipped with screw terminals ensuring fast and secure connections.

Constructed with efficient thyristor output delivering reliable switching performance. Supports a wide ambient operating temperature range from -25°C to 60°C. Designed with an IP20 rating protecting against solid objects but not water.

Compact dimensions of 22.5mm width, 22.5mm length, and 85mm height for space constrained applications. Complies with CSA, EAC, and UR standards for safety and quality assurance. Low off-state leakage current of 10mA helps reduce power consumption during standby.

Ideal for industrial applications requiring robust relay solutions with high load current. Explore the range of Siemens Solid State Relays on EnvMart for reliable industrial electrical control components.
