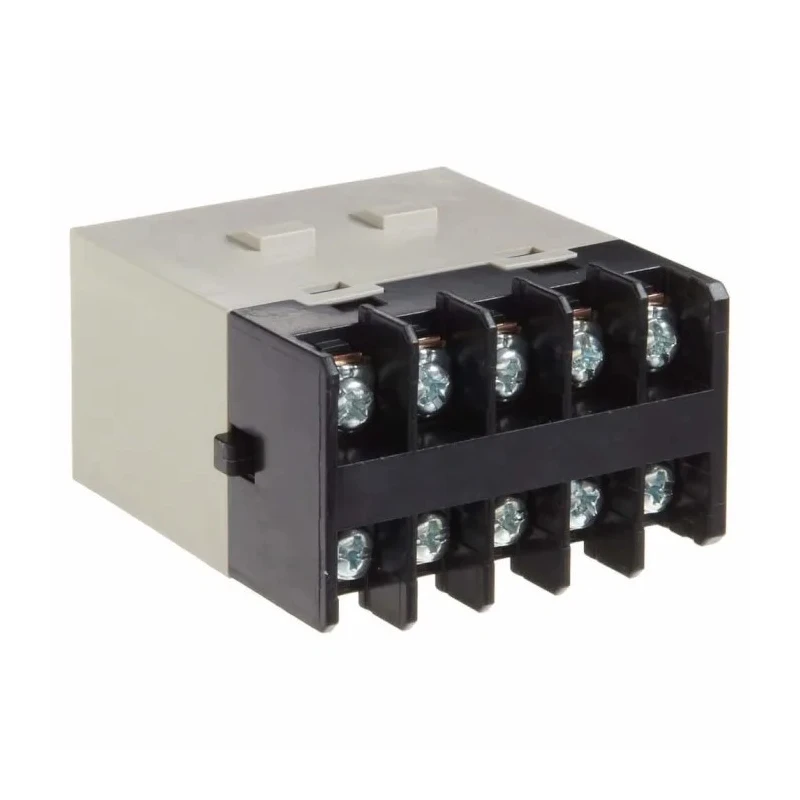

Omron Panel Power Relay 24V DC Coil, 25A Switching Current, DPDT Contact Configuration G7J-2A2B-BW-1-DC24

Omron G7J-2A2B-BW-1-DC24 panel power relay is engineered for industrial and commercial applications requiring reliable heavy-duty switching capabilities. Featuring a 24V DC coil voltage with minimal power consumption of 2W, this relay ensures efficient operation and minimal heat generation.

The double-pole double-throw (DPDT) contact configuration provides high versatility in circuit control, suitable for both AC and DC voltage switching up to 125V. The contacts are made from durable silver alloy, offering excellent conductivity and a low contact resistance of 100mΩ for minimal signal loss.

With an operating temperature range from -25°C to +60°C, the relay performs reliably in challenging environments. Mechanical durability is ensured with a lifespan of approximately 1 million operations. Additionally, the relay construction incorporates flame-resistant materials to enhance operational safety.

The relay is designed for panel mounting and features convenient screw terminal connections for straightforward installation and maintenance. It withstands momentary voltage drops with minimal contact chattering, maintaining consistent performance.

Certified by UL and CSA, the relay meets demanding safety and quality standards required in industrial controls. Typical use cases include compressor control in HVAC systems, switching motors and power tools, managing lighting and motors in office equipment such as printers, and controlling power in food processing machinery.

This relay features a double-pole double-throw (DPDT) contact configuration. Operates with a 24V DC coil voltage and 25A switching current. Supports switching voltages up to 125V AC and DC. Contact material is silver alloy with low resistance.

Designed for panel mounting with screw terminal connections. Operates over a temperature range of -25°C to 60°C. Has a mechanical lifespan of 1 million operations. Utilizes flame-resistant materials for safety. Holds UL and CSA approvals for industrial use.

Ideal for compressor control, motor switching, office equipment, and food processing applications.

For industrial, electrical, automation, HVAC, and manufacturing applications, the Omron G7J series panel power relay provides reliable and robust switching performance. Browse more Power Relays and related electrical components at EnvMart.
