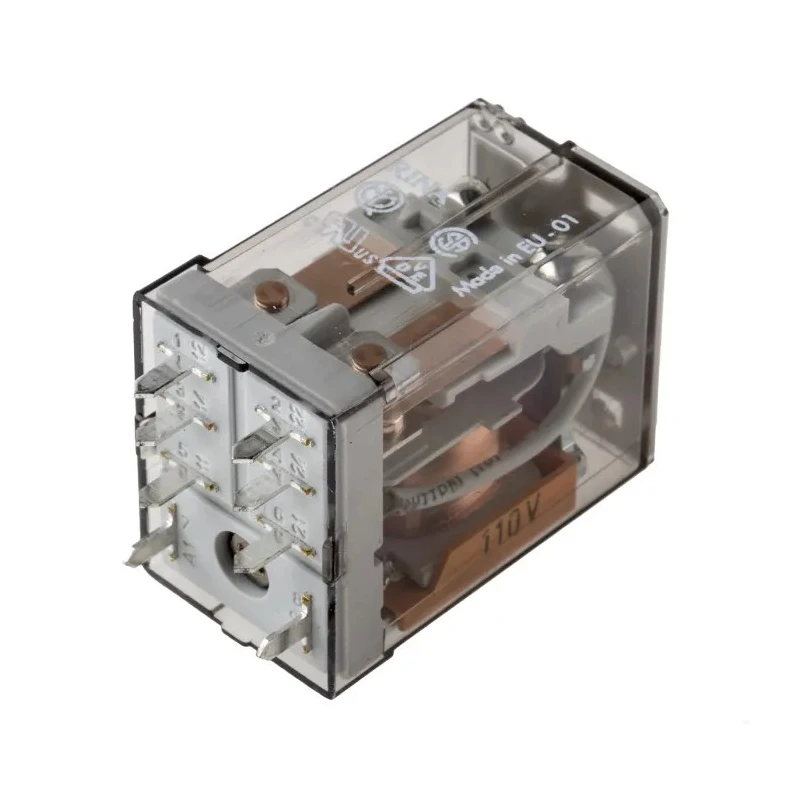

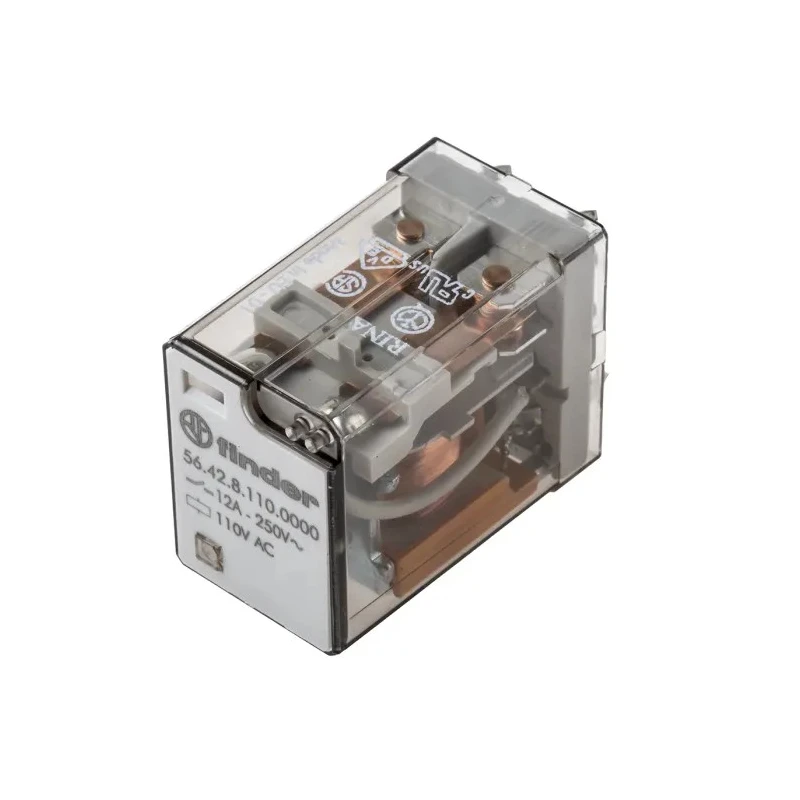

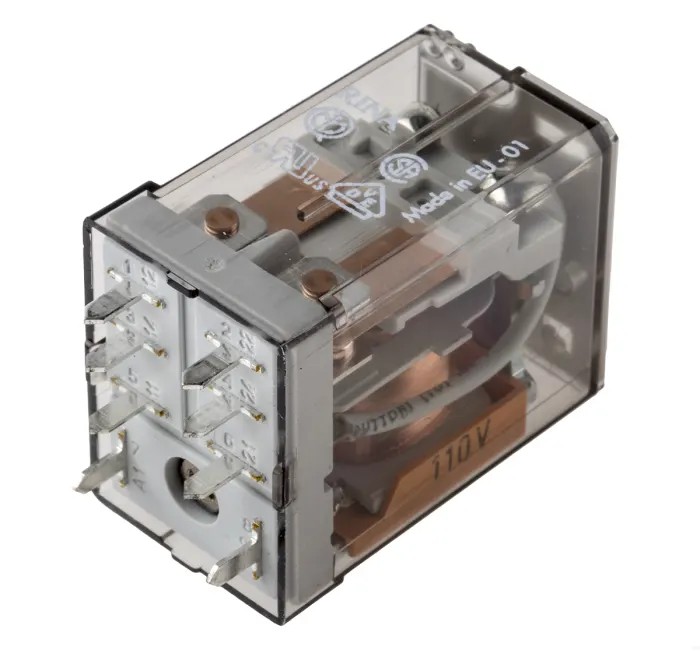

Finder PCB Power Relay, 110V AC Coil, 12A Switching Current, DPDT, Silver Alloy Contacts 56.42.8.110.0000

Finder 56.42.8.110.0000 PCB Power Relay is a high-quality relay designed for demanding electrical and automation applications. It features a 110V AC coil voltage and supports switching currents up to 12A, making it suitable for controlling a wide range of electrical circuits in industrial, manufacturing, and HVAC systems.

The relay uses a DPDT contact configuration, allowing double-pole double-throw switching for multiple circuit control. Its PCB mounting type with solder terminals enables secure and reliable installation on printed circuit boards. The contacts are made from silver alloy, which enhances electrical conductivity and ensures long service life even under heavy switching loads.

Operating temperature range from -40°C to 70°C guarantees stable performance in harsh environments. The relay coil has a resistance of 3.9kΩ and consumes only 1.5W, allowing energy-efficient operation in continuous use.

This relay can handle switching voltages up to 400V AC and switching power of 3kVA, making it ideal for power control in automation, industrial machinery, and power management systems. It complies with important safety and quality standards such as VDE, UL, EAC, CSA, and CCC.

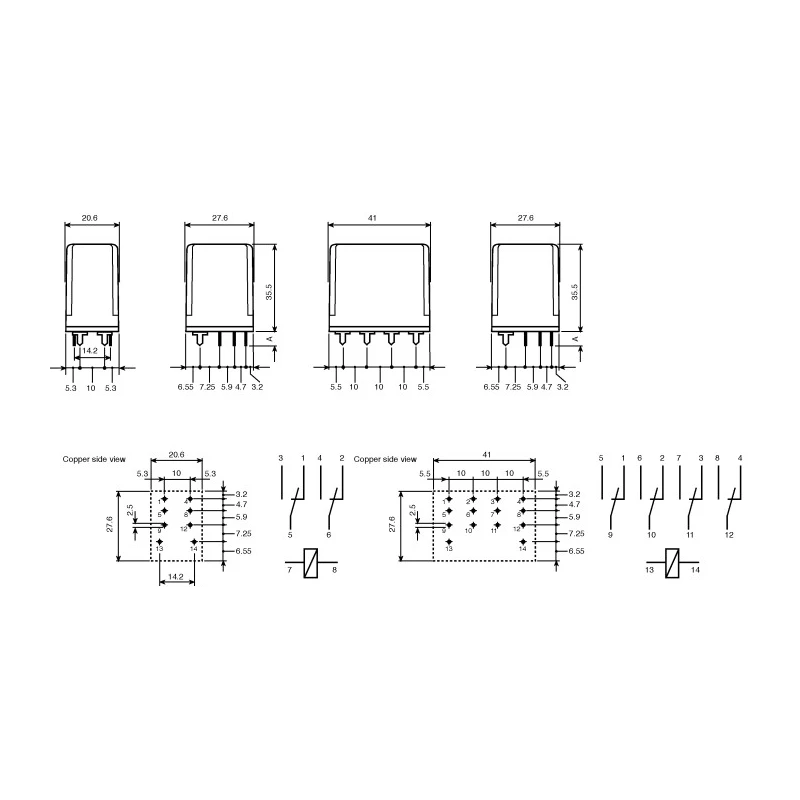

Additional technical features include an isolation voltage of 2500V between coil and contacts, which provide enhanced electrical safety, and a contact resistance of no more than 50mΩ for minimal voltage drop during operation. The compact dimensions (approximate height 36.8mm, width 27.7mm, length 20.7mm) facilitate space-saving designs without compromising functionality.

This relay is manufactured in Italy and is supplied in a protective box, ready for immediate use in electronic assemblies and industrial control applications. Ideal for electrical engineers, automation specialists, and system integrators seeking reliable relay components for PCB mounting in power switching applications.

Explore more relays and power switching devices in the Electronics & Electricals category on EnvMart for comprehensive industrial solutions. Features DPDT (Double Pole Double Throw) contact configuration for versatile switching.

Designed for PCB mounting with solder terminal type for stable installation. Silver alloy contact material ensures reliable conductivity and durability. Operates within a temperature range of -40°C to 70°C for robust performance.

Coil resistance is 3.9kΩ with low coil power consumption of 1.5W. Capable of switching up to 400V AC voltage and 3kVA power rating. Compact dimensions ensure easy integration into control panels and devices. Meets multiple international standards including VDE, UL, EAC, CSA, and CCC approvals.

Isolation between coil and contacts rated at 2500V to ensure safe operation.
