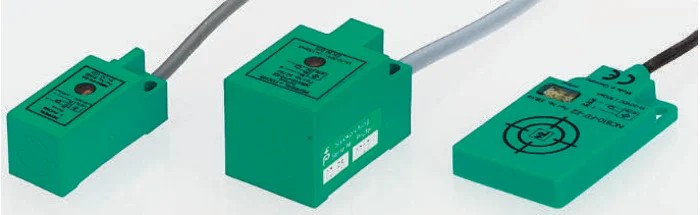

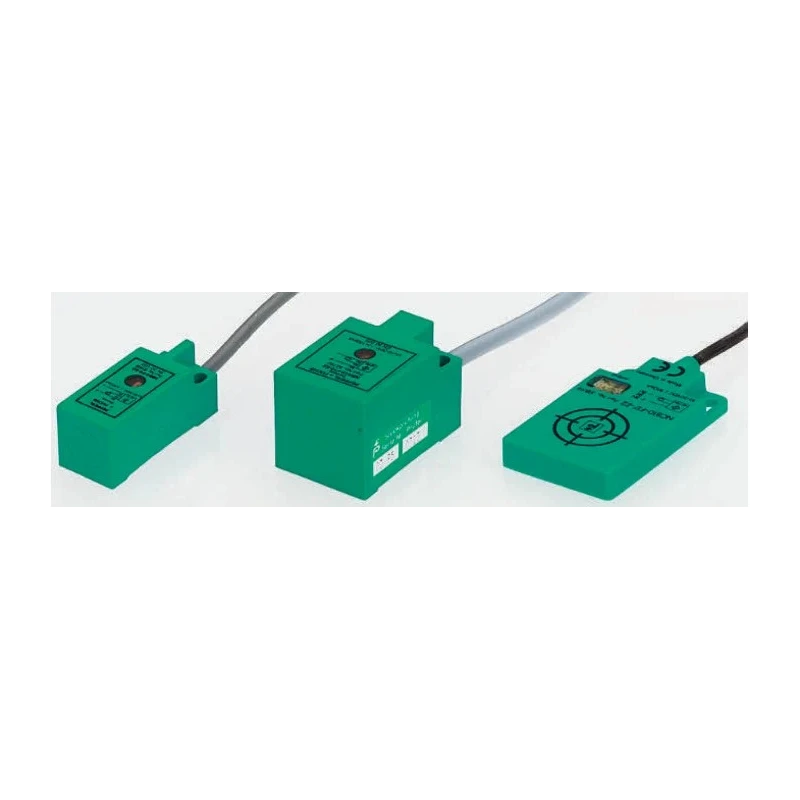

Pepperl + Fuchs Block Inductive Proximity Sensor PNP 30 V DC 150 mA 10 mm Detection NBN10-F10-E2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 38.5mm |
| Model | NBN10-F10-E2 |
| Depth | 25.5mm |
| IP Rating | IP67 |
| Width | 25mm |
| Mount Type | Non-Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 150mA |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 10mm |
Key Features
- Compact block style sensor with robust Polybutylene Terephthalate housing.
- Non-flush mount type suitable for embedding applications.
- Pre-cabled with 2 m of 3-core PVC cable for ease of installation.
- IP67 rated for protection against dust and water ingress.
- Operating temperature range from -25°C to 70°C ensures reliability in industrial environments.
- Short circuit and reverse polarity protection for enhanced durability.
- Unshielded design with 500 Hz maximum switching frequency for high-speed detection.
- Complies with EN 60947-5-2 standard for electrical safety and performance.
Product Description
Pepperl + Fuchs NBN10-F10-E2 is a block style Inductive Proximity Sensor featuring a PNP output with a maximum switching current of 150 mA and operating voltage up to 30 V DC. It offers a detection range of 10 mm and operates reliably within a temperature range of -25°C to 70°C. The sensor's Polybutylene Terephthalate (PBT) housing provides robustness and durability in industrial automation applications.
This non-flush mount sensor is designed for easy integration with its pre-cabled 2-meter 3-core PVC cable, suitable for various automation and control industry setups. With an ingress protection rating of IP67, the sensor is sealed against dust and water, making it ideal for harsh industrial environments.
The device incorporates short circuit pulsing and reverse polarity protection, enhancing its operational reliability and lifespan. It supports a maximum switching frequency of 500 Hz, allowing for quick and accurate proximity detection in manufacturing, assembly, and process control systems.

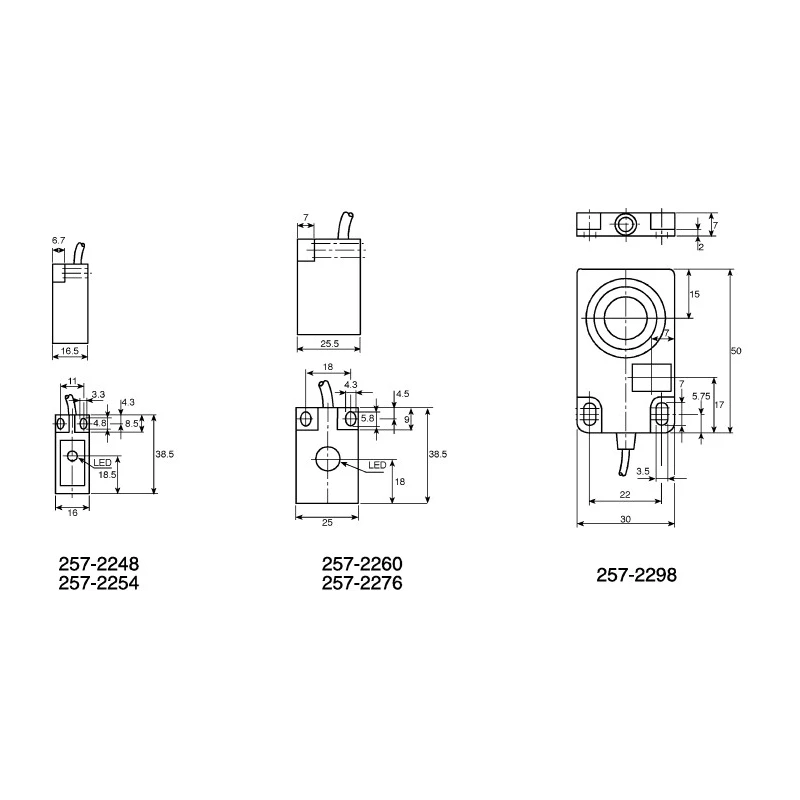

The NBN10-F10-E2 conforms to the EN 60947-5-2 standard ensuring compliance with industry safety and performance requirements. Its compact dimensions (38.5 mm length × 25 mm width × 25.5 mm depth) make it ideal for installations with limited space.
The unshielded design enables the detection of metallic targets without interference from surrounding materials. It is widely used in industrial automation, manufacturing, robotic sensing, and machinery monitoring.
Compact block style with PBT housing material. Non-flush mounting for flexible installation options. PNP output type with 150 mA maximum switching current. 10 mm detection distance for precise proximity sensing. IP67 rated for dust and water protection.
Operating temperature from -25°C to 70°C for varied working conditions. Short circuit and reverse polarity protection enhance sensor durability. Conforms to EN 60947-5-2 industrial standards.
This Pepperl + Fuchs sensor is suitable for demanding industrial environments in sectors such as automation, robotics, manufacturing lines, and conveyor systems requiring reliable and accurate proximity detection. Explore our extensive range of industrial sensors and automation components at EnvMart for seamless integration in your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 10 mm.
It operates reliably within a temperature range of -25°C to 70°C.
This model provides a PNP output type.
The maximum switching current is 150 mA.
It has an IP67 rating, providing protection against dust and water ingress.
The sensor is housed in Polybutylene Terephthalate (PBT).
The maximum supply voltage for this model is 30 V DC.
It supports a maximum switching frequency of 500 Hz.
No, this model is a non-flush mount type, suitable for embedding applications.
It complies with the EN 60947-5-2 standard for electrical safety and performance.
The dimensions are 38.5 mm in length, 25 mm in width, and 25.5 mm in depth.
It comes pre-cabled with a 2 m long 3-core PVC cable for ease of installation.
