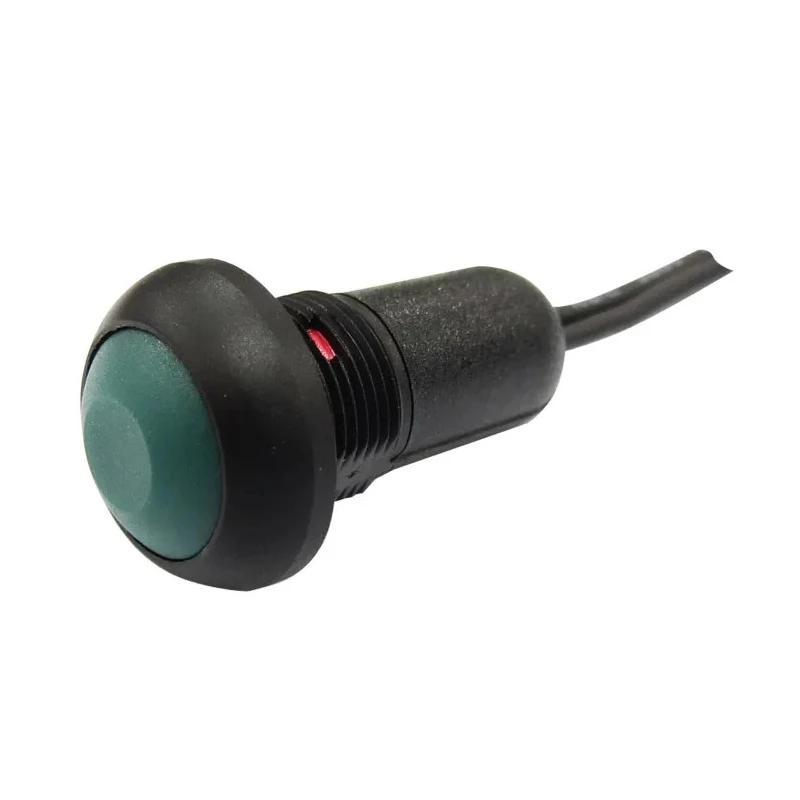

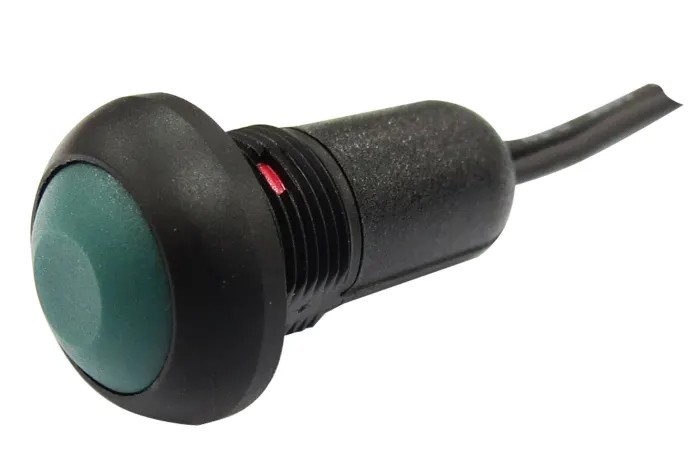

RS PRO SPST Momentary Push Button Switch Panel Mount Flat Actuator Black LED IP67 13.6 mm Cutout 209-9055

RS PRO 209-9055 is a sub-miniature SPST momentary push button switch designed for robust and reliable panel mounting applications industrially and commercially. It features a 13.6 mm panel cutout size, flat actuator style, and black LED illumination for clear visibility and ergonomic operation.

This push button switch operates in an Off-(MOM) momentary mode, suitable for controlling single circuits with a single throw. It is rated for contact voltages of 36 V dc and 50 V ac, supporting moderate industrial voltage requirements.

The switch is constructed using polyamide 6/6 material with gold over silver contacts and epoxy sealing to ensure durability and protection against environmental factors. The device has a high IP67 ingress protection rating, allowing it to withstand dust ingress and immersion in water, making it suitable for harsh industrial settings.

With an operating temperature range from -35°C to 85°C and solder terminal type for secure connectivity, it is engineered for long-term reliability, boasting a mechanical life of one million cycles. The series offers versatile mounting options including threaded or snap-in installation techniques.

Applications for RS PRO 209-9055 include test equipment panels, telecommunications hardware, networking devices, and various handheld appliances requiring compact yet dependable push button controls. Its compliance with UL, RoHS, and lead-free standards ensures quality and environmental safety.

The switch operates momentarily in Off-(MOM) mode providing precise control. High ingress protection with IP67 rating for use in demanding environments. Gold over silver contact material enhances electrical performance and longevity.

Robust polyamide 6/6 construction ensures durability under mechanical stress. Flat, black actuator enhances ease of use and aesthetic blending into panels. Designed for panel mounting with 13.6 mm cutout, suitable for various industrial panels.

Solder terminals provide reliable electrical connections optimized for automated assembly. Operational temperature range from -35°C to 85°C supports diverse climate conditions. Rated for DC 36 V and AC 50 V with a contact current of 125 mA.

Ideal for telecommunications, test equipment, networking, and handheld applications.

This RS PRO push button switch combines functional design and reliable performance meeting industrial standards. It offers a dependable interface control for modern electronic and electrical systems accessible through EnvMart’s category for Push Button Switches.
