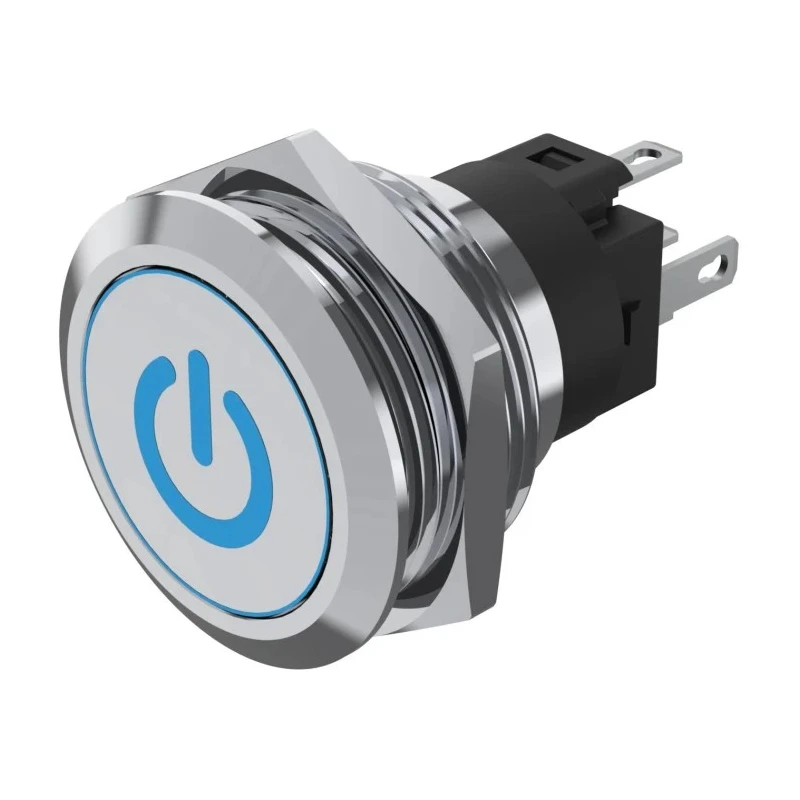

EAO Illuminated Push Button Switch, Momentary, Panel Mount, Silver Actuator, 22.3 mm Cutout, SPDT, Blue 82-6151.1A24.B002

EAO 82-6151.1A24.B002 Illuminated Push Button Switch is a panel-mounted device with a 22.3 mm cutout, providing momentary push-in operation with SPDT contact configuration. Featuring a silver actuator and blue LED illumination, this switch ensures clear visual feedback for operators.

The robust construction uses stainless steel 304 material to provide vandal resistance with an IK10 impact rating and front protection rated to IP67. It is rated to withstand harsh environments with an operating temperature range from -30°C to 70°C and ingress protection compliant with IP65 and IP67 standards.

This switch supports 240 V AC and DC circuits with a contact current rating of 3A, making it versatile for a wide range of industrial and commercial applications.

Common use cases include exposed public infrastructure such as ticketing and vending machines, industrial machinery controls, elevators, building access security controls, audio and video equipment, medical devices, and food processing equipment.

Its gold contact options and optional laser markings enhance reliability and customization. The switch provides excellent tactile feedback, ensuring operator confidence and safety.

The switch features a silver push-in actuator with blue LED illumination for clear status indication. IP65 and IP67 ratings ensure excellent protection against dust and water ingress. Designed for 240 V AC and DC applications with a 3A contact current rating.

Robust stainless steel 304 construction provides durability and IK10 vandal resistance. Suitable for industrial, public access, and building security systems with long service life exceeding one million cycles.

This product is manufactured in Switzerland and provides exceptional quality and reliability consistent with EAO standards. Explore EAO Push Button Switches and related industrial switchgear on EnvMart for more options.
