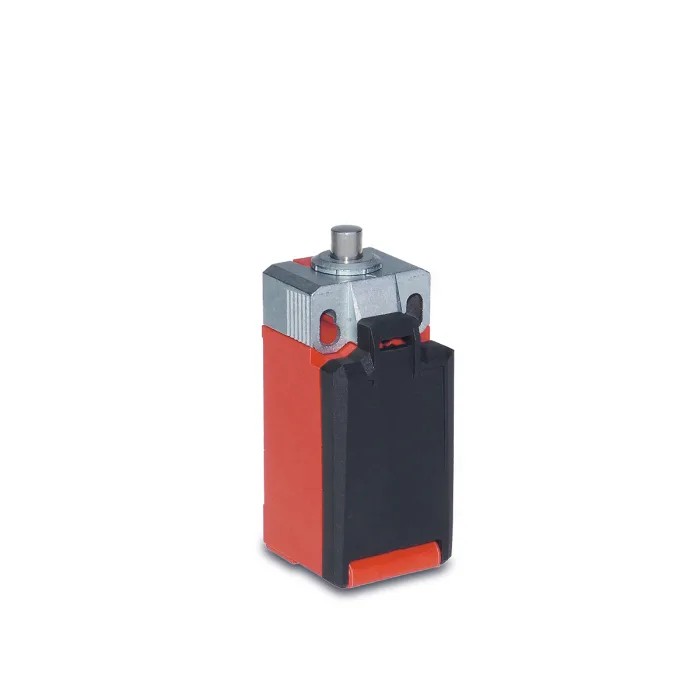

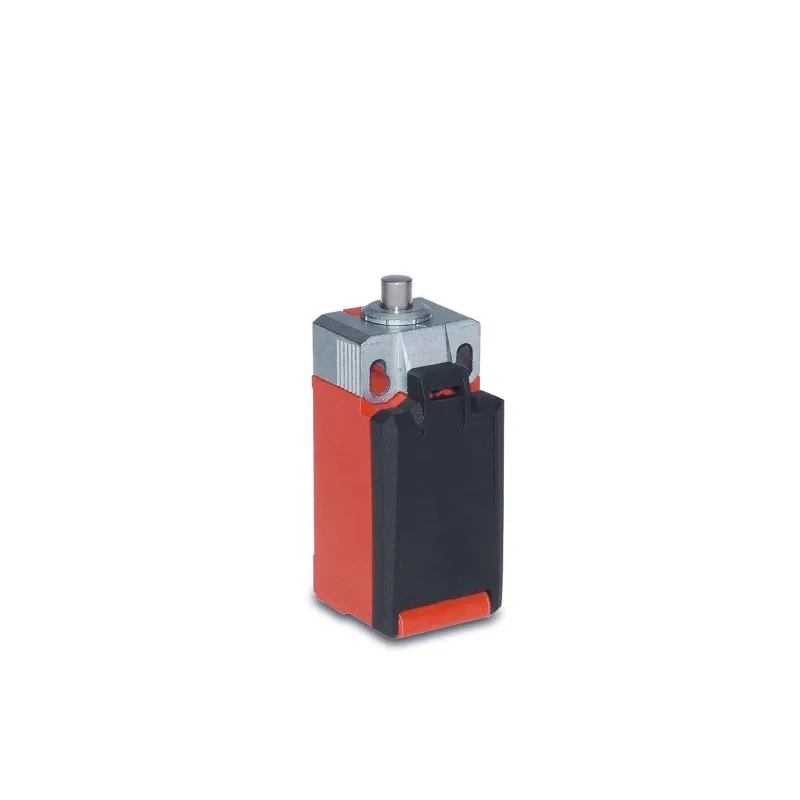

Bernstein AG IN65 Series Plunger Limit Switch DPST IP67 IP66 Fibreglass Reinforced Thermoplastic Housing 240V AC IN65

Bernstein AG IN65 Series Plunger Limit Switch DPST, rated at 240V AC, is engineered for precise position monitoring and safety applications in industrial automation settings. This robust limit switch combines fibreglass reinforced thermoplastic housing with metal actuator locking and a mounting clip to ensure durability and mechanical strength.

The device provides double pole single throw (DPST) switching capability, supporting switching currents of 5A and voltages of 240V AC as well as 24V DC. Its slow action contacts enhance operational reliability during switching cycles, which can reach up to 30 million, supporting extensive industrial use.

Designed for demanding environments, the IN65 series is rated IP67 and IP66 for dust and water ingress protection, making it suitable for harsh conditions and outdoor installations. The operational temperature range from -30°C to 75°C further broadens its application scope.

The modular design allows for great flexibility with adjustable actuator elements that can be repositioned in eight 45-degree increments, and various actuators available to customize for specific installation requirements. Mounting orientation uses screw fixtures and the conduit entry size is M20.

This limit switch is ideal for safety facilities and position monitoring tasks in manufacturing, industrial automation, HVAC systems, and other commercial applications requiring reliable switch performance. Its combination of sturdy housing material, high mechanical life, and adjustable operation features make it a versatile solution for demanding industrial environments.

The switch features a plunger actuator type designed for precise position monitoring. Constructed with fibreglass reinforced thermoplastic housing for enhanced durability. Equipped with DPST contact configuration for double pole single throw switching.

Rated for switching currents of 5A and switching voltages up to 240V AC and 24V DC. Operates reliably within a temperature range of -30°C to 75°C, suitable for various environments. IP67 and IP66 ingress protection ensures resistance to dust and water ingress.

Has a mechanical life of up to 30 million switching cycles, ensuring long-term reliability. Features slow action contacts with screw terminal type for secure wiring. Includes adjustable actuator elements allowing 8 positions at 45° increments for flexibility.

Mounting is facilitated by screws with a conduit entry size of M20. Explore other high-quality Limit Switches and industrial sensors at EnvMart for optimized automation and safety solutions.
