Eaton RMQ Titan M22 Series Turn to Release Emergency Stop Push Button Front Mount 22mm 78639646 M22-PVT+M22-A+M22-XAK1

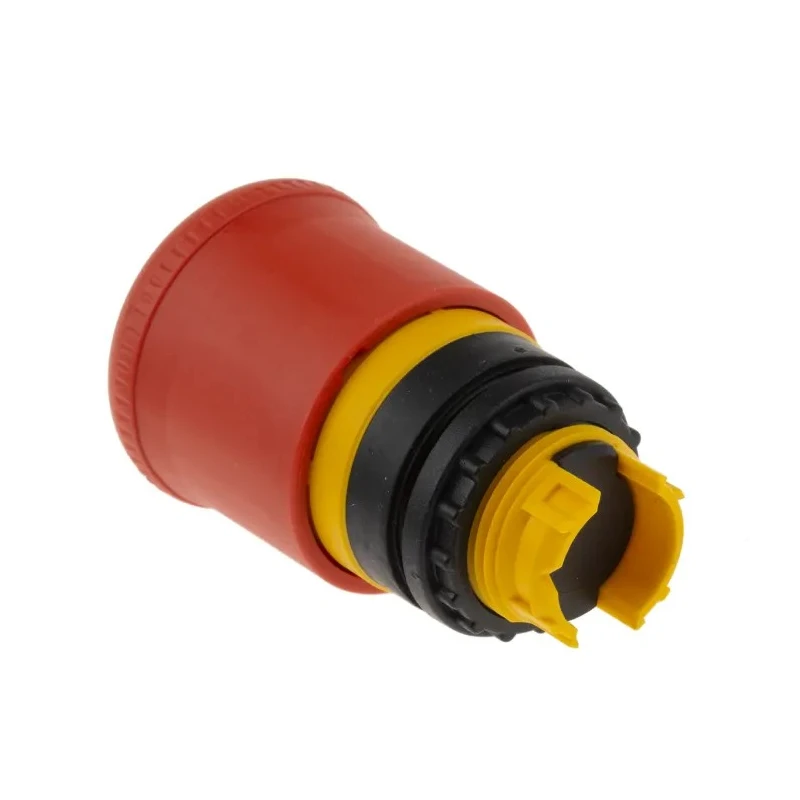

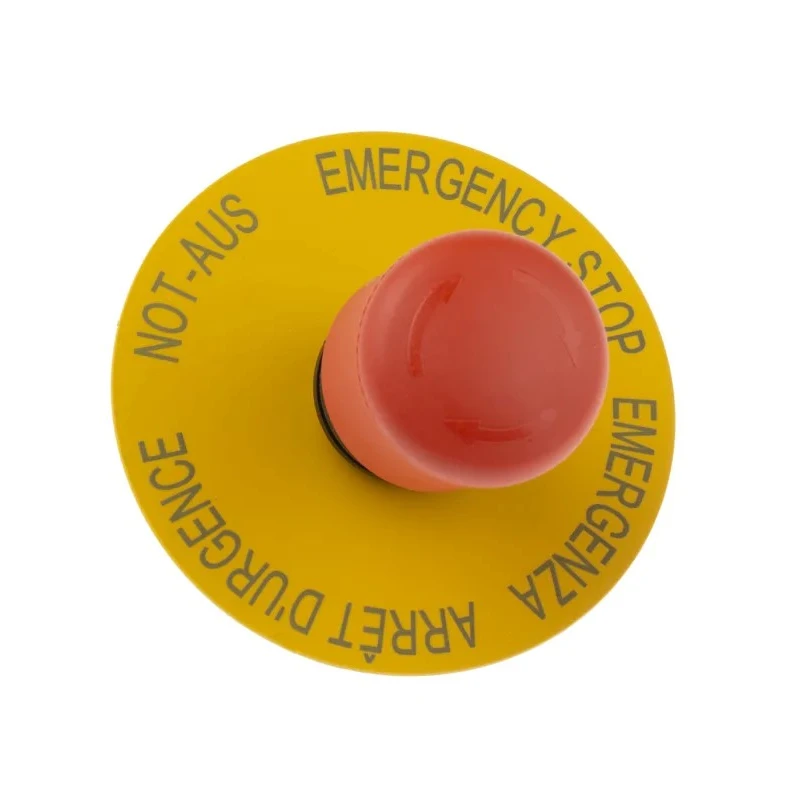

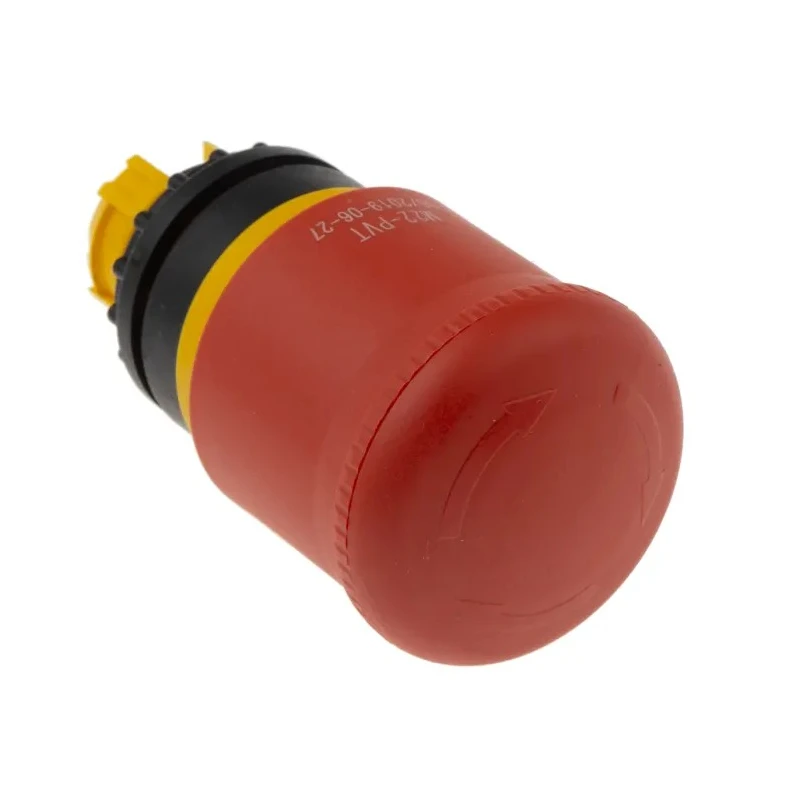

Eaton 78639646 M22-PVT+M22-A+M22-XAK1 is a high-quality RMQ Titan M22 Series emergency stop push button designed for front mounting in industrial and commercial control panels. It features a 22 mm cutout diameter ensuring broad compatibility with standard panels used in automation, manufacturing, HVAC, and safety-critical machinery applications. The unit is constructed with durable plastic housing and a mushroom-shaped push button in eye-catching red and yellow colors to provide rapid identification in emergencies.

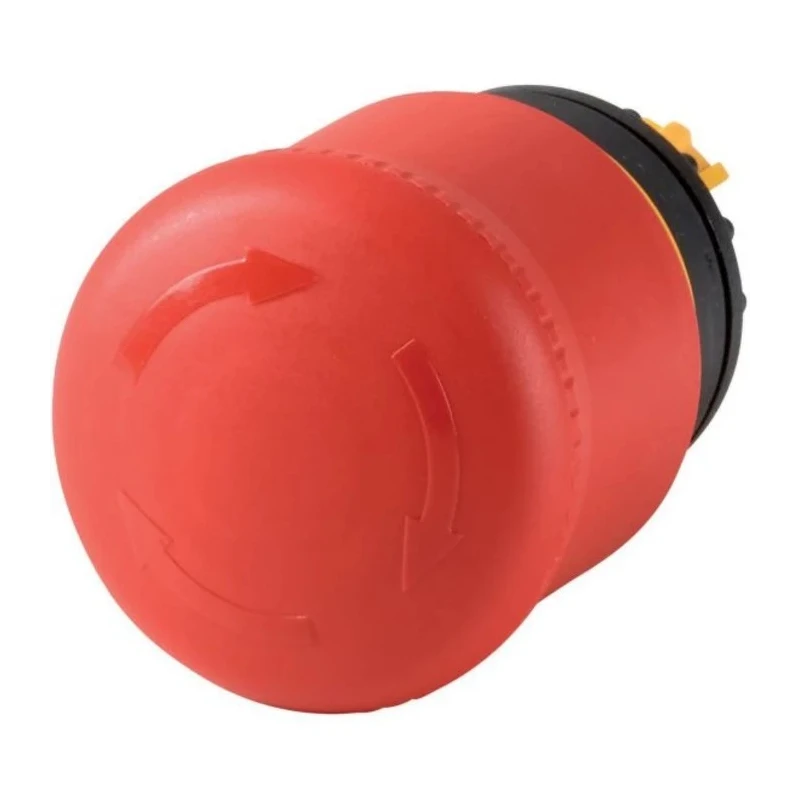

This emergency stop switch employs a turn to release mechanism, providing an added safety measure that ensures the machine remains off until it is safe to restart. The push button is not illuminated and connects via blade terminals for reliable electrical contact. Additionally, its compact 38 mm head diameter and 35 mm width facilitate easy installation in tight spaces or existing switch panels.

The device is rated IP69K and IP67, offering comprehensive protection against dust ingress and high-pressure, high-temperature water jets, making it suitable for harsh industrial and outdoor conditions. It meets stringent international standards including IEC/EN 60947, UL 508, VDE 0660, IEC/EN 60947-5, and CSA certifications, assuring compliance and reliability in diverse operating environments.

Designed and manufactured in Germany, this Emergency Stop Push Button is built to withstand shocks and vibrations, preventing accidental activation or disconnection in demanding heavy-duty or mechanical settings. Its broad operating temperature range of -25°C to +70°C further extends its suitability across a wide range of climatic conditions.

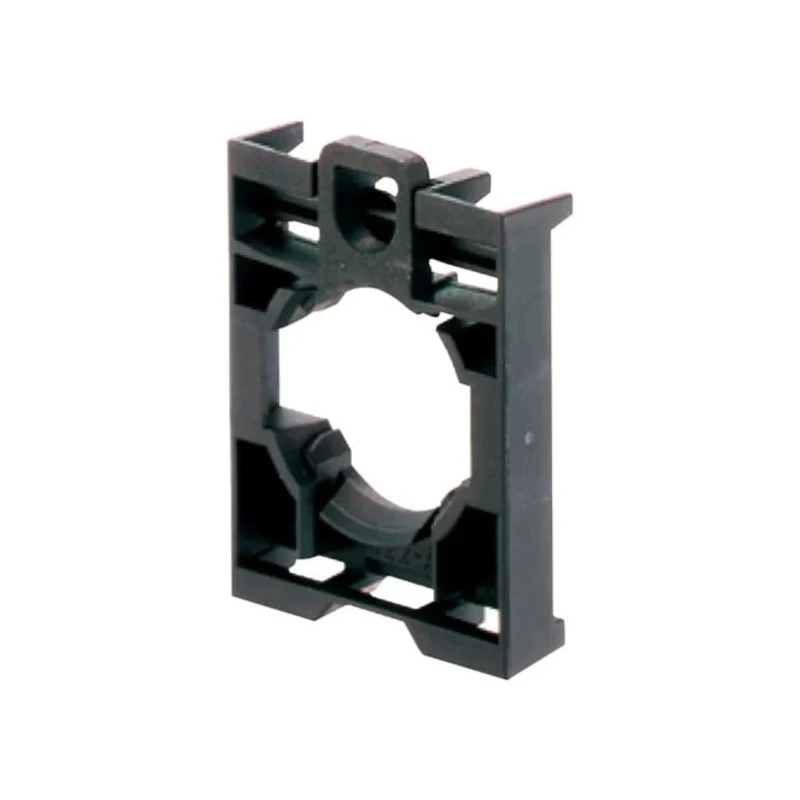

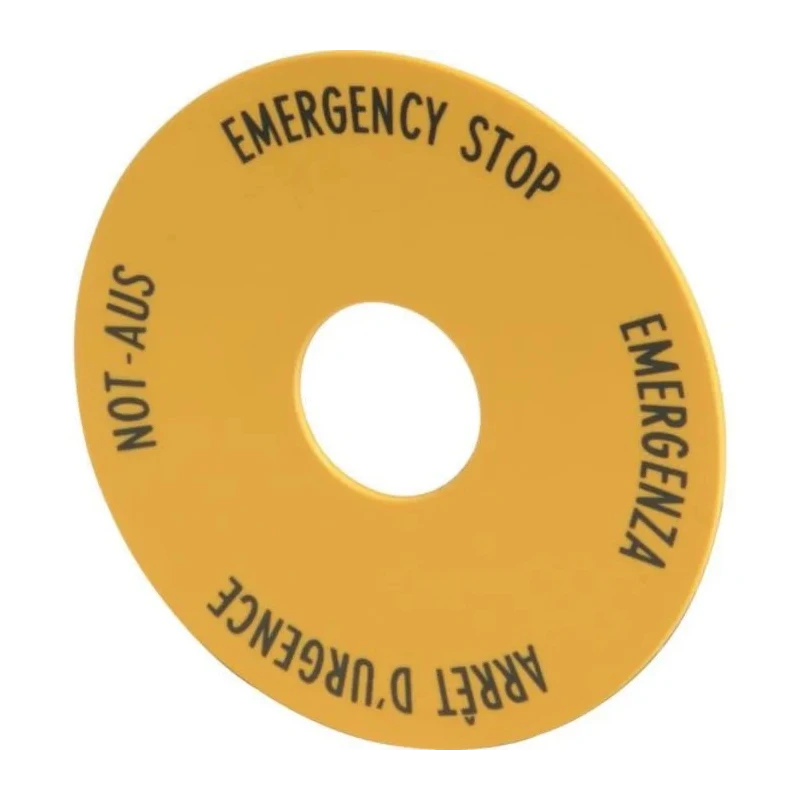

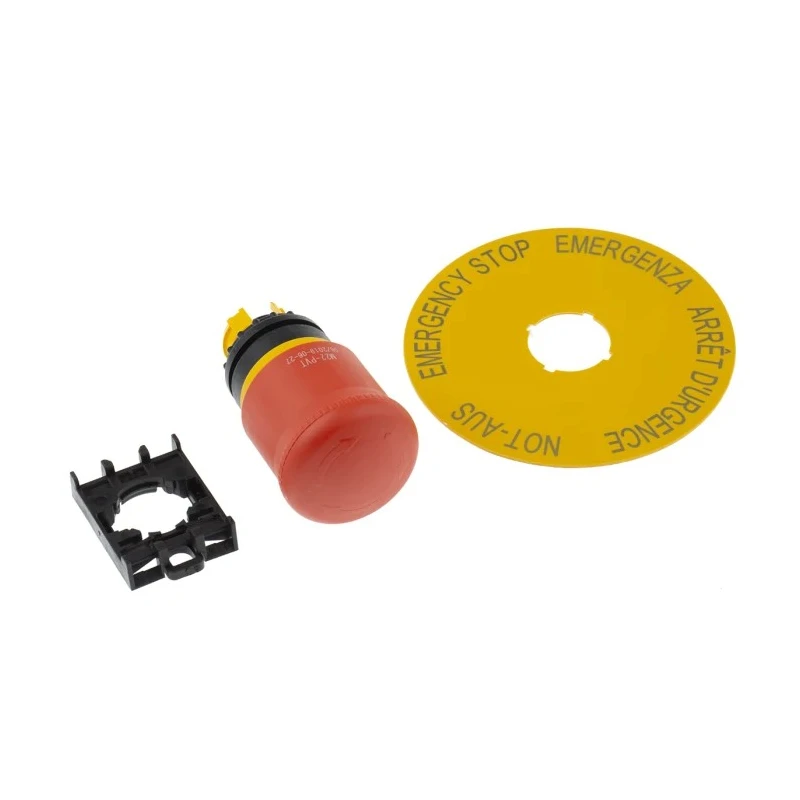

This product is ideal for industrial automation, machinery safety, electrical control panels, medical equipment, and other applications requiring quick and reliable emergency power cut-off. The package includes the full RMQ Titan unit comprising the collar and mounting bracket, eliminating the need for sourcing additional components.

Exclusive turn-to-release function ensures secure system reset. Robust IP69K rating protects against dust and powerful water jets. Blade terminal design facilitates secure and straightforward wiring. Mushroom-shaped push button enhances ergonomic emergency response.

Color coding with red and yellow improves visibility and safety. Comprehensive international standards certifications ensure quality compliance. Durable plastic housing and push button material suitable for tough environments.

Compact size for seamless panel integration. Browse the Eaton range and related safety switches in EnvMart’s Electrical & Automation category to find compatible components and accessories.
