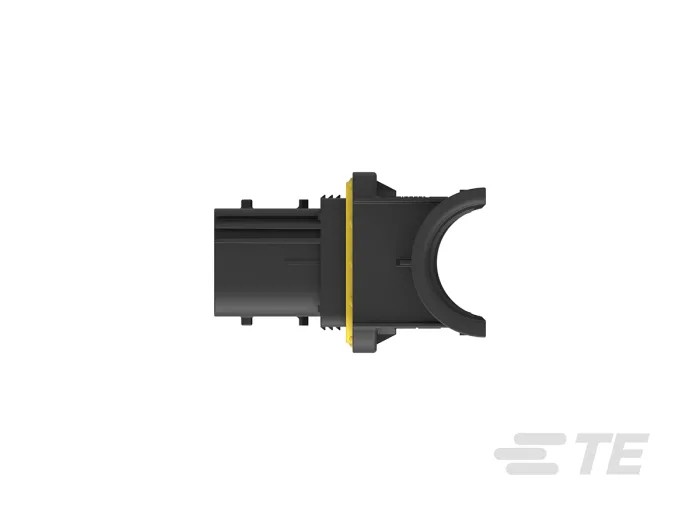

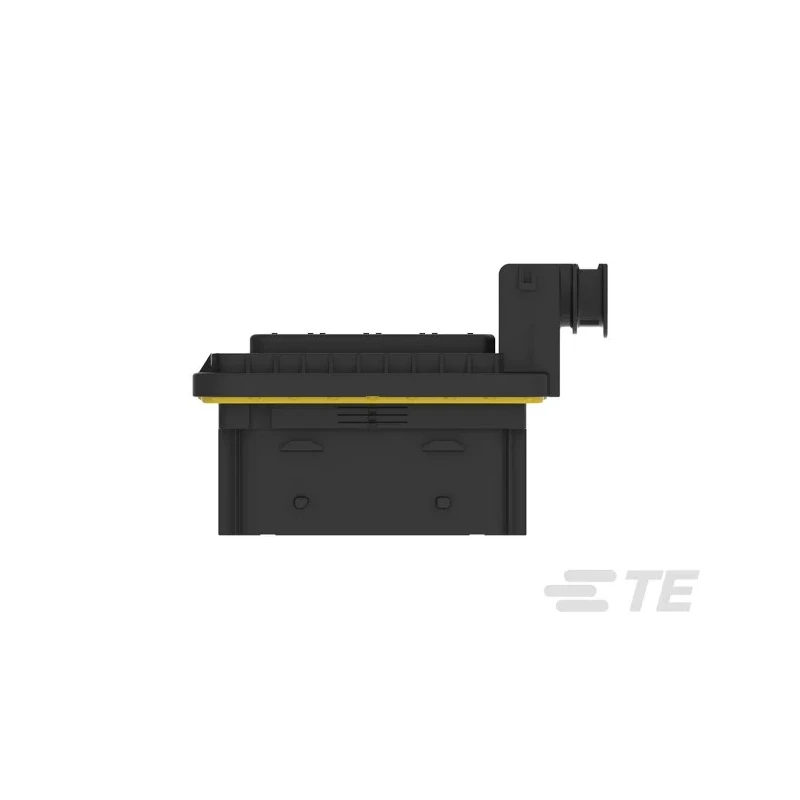

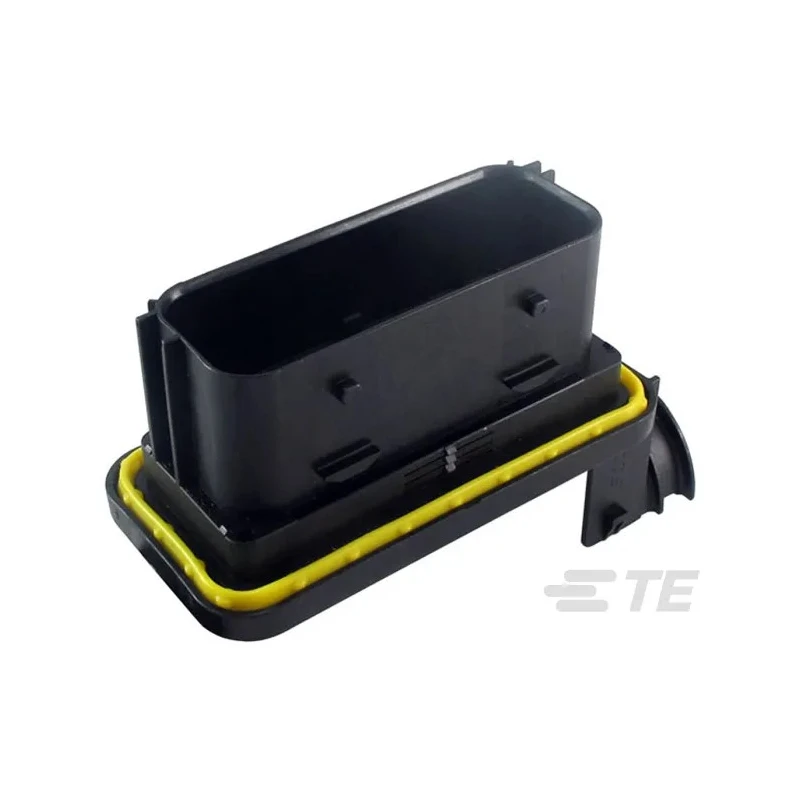

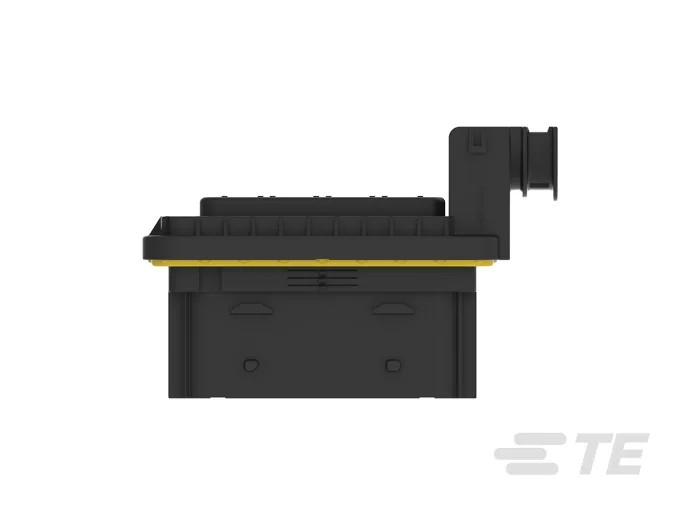

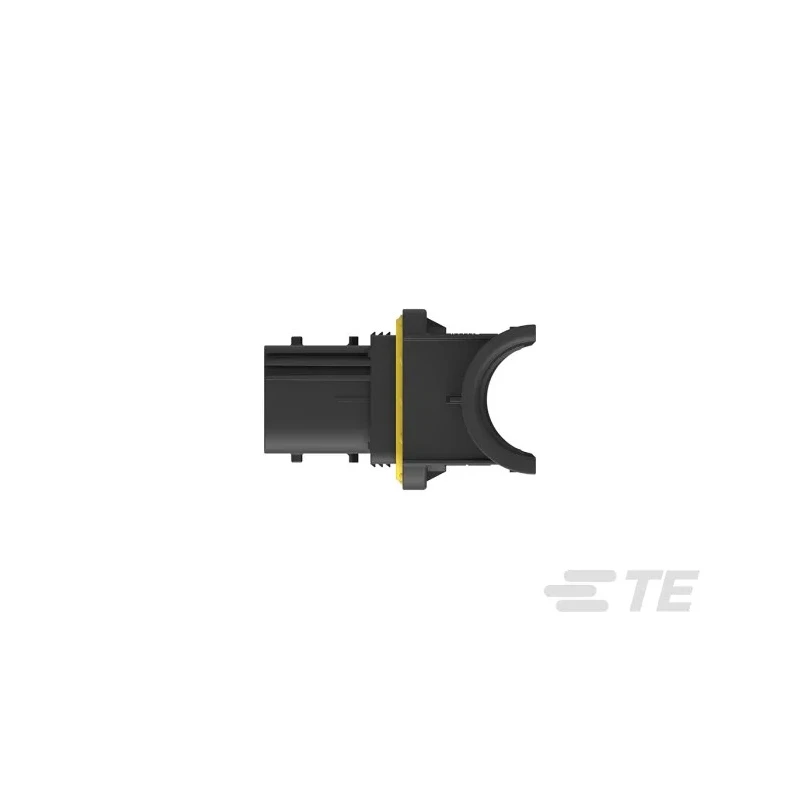

TE Connectivity AMPSEAL Automotive Connector Female Black Panel Mount 28 Way 2138846-1

TE Connectivity 2138846-1 AMPSEAL Automotive Connector Female Black Panel Mount 28 Way is specifically engineered for demanding automotive electrical applications requiring secure, sealed, and high-current connections. The connector features 28 contacts organized into 4 rows, combining 24 size 16 and 4 size 12 terminals. This hybrid pin arrangement offers design flexibility by accommodating multiple terminal sizes within the same housing.

Constructed with a high-quality black PBT housing, the connector delivers robust mechanical durability and resistance against chemicals and environmental factors. Its wide operational temperature range from -55°C to 125°C ensures reliable performance across extreme automotive conditions.

The connector is designed with a panel mount configuration, enabling tool-less installation and removal via a drop-and-slide mounting clip, saving time during assembly or maintenance. Lever slide mechanisms facilitate smooth mating and unmating, reducing connection wear and improving reliability.

Sealing is a critical feature of this AMPSEAL series connector, providing protection to wiring, between connector interfaces, and at the panel mount itself, thus preventing ingress of dust and moisture that can cause failures in automotive environments.

Color-coded mounting clips and mechanical keying prevent incorrect connection alignments and assist in quick application identification. This connector supports up to 25 amperes per contact, suitable for various automotive signal and power transmission needs.

28 contacts in 4 rows with hybrid terminal sizes for flexible circuit design. Durable black PBT housing ensures longevity and resistance. Wide operational temperature range from -55°C to 125°C for harsh environments. Panel mount with tool-less drop-and-slide clip simplifies installation.

Lever slide mechanism provides smooth mating/unmating action. Sealed system enhances protection against environmental contaminants. Mechanical and color-coded keying prevents mismating. Compact design with dimensions: 111.25 mm width, 48.45 mm height, 72.75 mm depth.

This connector is ideal for use in automotive, industrial, and harsh-environment electrical systems, including applications where bulkhead or pass-through wire-to-wire connections are required. Its robust design complies with ISO 14001 and ISO/TS 16949:2002 standards, ensuring high quality and environmental responsibility.
