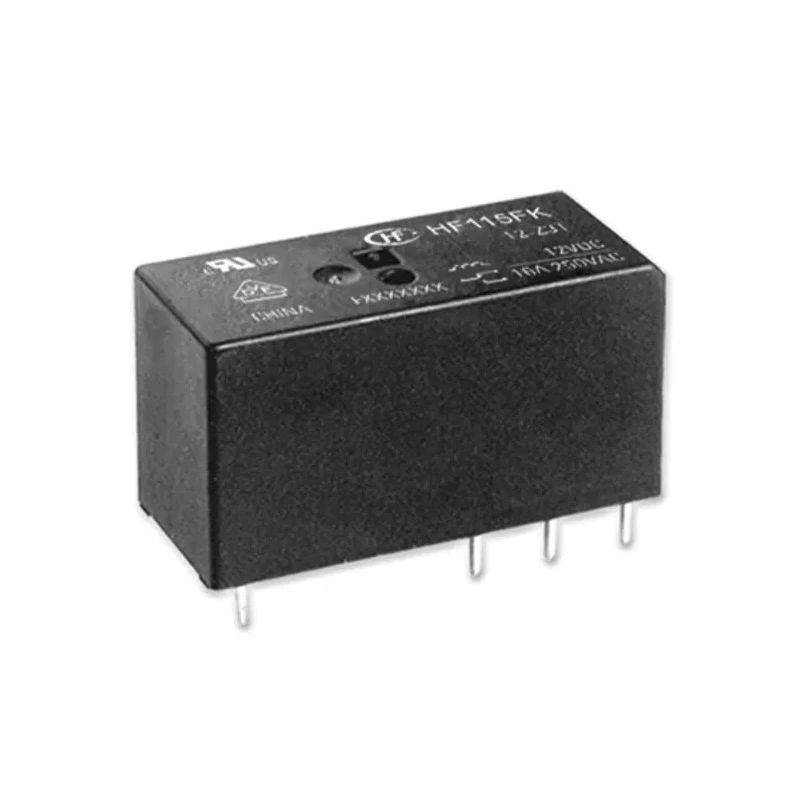

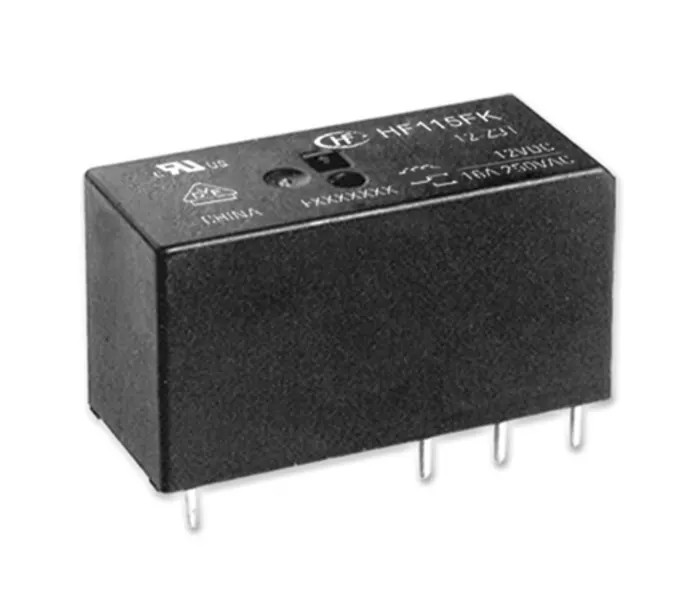

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 16A Switching Current SPST HF115FK/12-H3T(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115FK/12-H3T(610) |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115FK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- This power relay features a 12V DC coil voltage for efficient actuation.
- Capable of switching currents up to 16 Amperes for high performance.
- Designed with SPST contact configuration suitable for PCB mounting.
- Silver alloy contacts ensure durable and low resistance connection.
- Operating temperature range from -40°C to 85°C for versatile environments.
- Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width.
- Coil resistance of 360 Ohms and coil power consumption of 400mW.
- Complies with RoHS environmental standards for safe usage.
Product Description
Hongfa Europe GMBH HF115FK/12-H3T(610) PCB Power Relay is a non-latching electromagnetic relay designed for PCB mounting applications. It operates with a 12V DC coil voltage and handles switching currents up to 16 Amperes, making it suitable for medium power industrial and electronic control systems.
This relay features a single pole single throw (SPST) contact configuration with silver alloy contacts, offering excellent conductivity and reduced contact resistance, approximately 100 milliohms. The relay supports switching AC voltages up to 400V AC and switching power up to 4kVA.
The product is engineered for robust industrial use with an operating temperature range from -40°C to 85°C. Its coil resistance is 360 Ohms with a power consumption of 400mW, designed to be flux proofed and environmentally friendly complying with RoHS regulations.
Physical dimensions measure 29mm in length, 15.7mm in height, and 12.7mm in width, making it compact for integration in circuit boards. The relay provides an isolation voltage of 5KV AC between coil and contacts to ensure electrical safety. With a rated durability up to 10 million cycles, this relay is reliable for continuous operation in automotive, industrial automation, HVAC, and manufacturing controls.
This relay is optimized for control applications requiring SPST configuration on PCB mountings. Its silver alloy contacts provide excellent corrosion resistance and long service life. Designed to handle high switching power and current load safely.
Compliant with environmental regulations ensuring safer application deployment. Compact and reliable component for various industrial and electronic systems. Explore more Power Relay solutions and related products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC, which allows for efficient actuation.
It can handle a maximum switching current of 16 Amperes, making it suitable for medium power applications.
This relay features a single pole single throw (SPST) contact configuration, which is suitable for various control applications.
The dimensions of this relay are 29mm in length, 15.7mm in height, and 12.7mm in width, making it compact for PCB mounting.
The operating temperature range for this relay is from -40°C to 85°C, allowing it to function in diverse environments.
The contact material used in this relay is silver alloy, which provides excellent conductivity and low contact resistance.
The coil resistance of this relay is 360 Ohms, with a coil power consumption of 400mW.
The isolation voltage between the coil and contacts is 5KV AC, ensuring electrical safety during operation.
This relay complies with RoHS environmental standards, ensuring safe usage in various applications.
This relay is rated for a durability of up to 10 million cycles, making it suitable for continuous operation.
This relay is designed for PCB mounting, utilizing PCB pin terminals for connection.
This model can switch AC voltages up to 400V AC, making it versatile for different applications.
