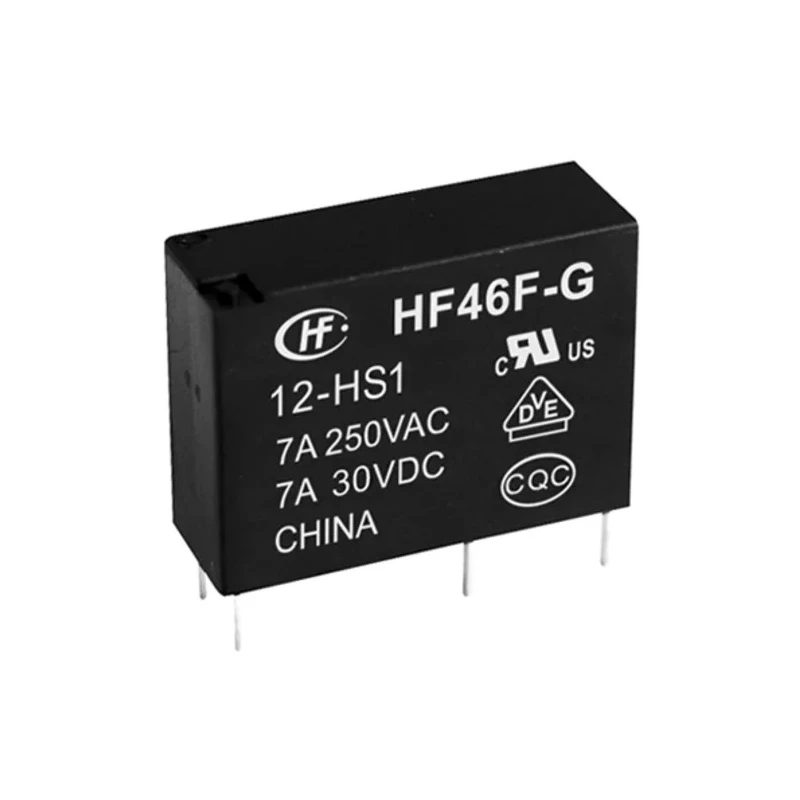

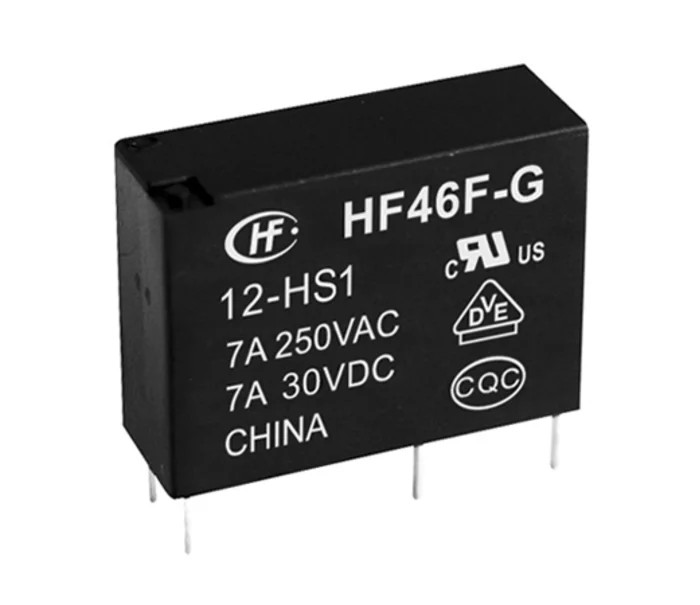

Hongfa Europe GMBH PCB Power Relay 24V dc Coil 10A Switching Current SPST HF46F-G/24-HS1F(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.3mm |
| Length | 20.5mm |
| Model | HF46F-G/24-HS1F(610) |
| Width | 7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF46F-G |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V |
| Coil Power | 200mW |
Key Features
- This power relay is designed for PCB mounting with a compact profile measuring 20.5mm length, 7mm width, and 15.3mm height.
- It operates within a wide temperature range from -40°C to 85°C suitable for demanding industrial environments.
- The silver alloy contacts provide reliable switching with a maximum switching power of 2.8kVA.
- The coil resistance is 2.9kΩ and coil power consumption is 200mW, ensuring low power operation.
- Isolation voltage between coil and contact reaches 10KV ensuring safety and performance stability.
- Environmental compliance with RoHS standards makes it an eco-friendly choice.
- Ideal for applications in automotive engines, household appliances, industrial machinery, medical devices, and telecommunication equipment.
Product Description
Hongfa Europe GMBH HF46F-G/24-HS1F(610) is a subminiature, non-latching PCB power relay designed for robust industrial and commercial uses. It features a 24V dc coil and a single pole single throw (SPST) contact configuration capable of switching currents up to 10A, making it suitable for controlling moderate loads.
This relay supports a wide operational temperature range from -40°C to 85°C, allowing reliable performance in harsh operating environments. Its compact dimensions (20.5mm length, 7mm width, 15.3mm height) enable space-efficient PCB mounting which is ideal for compact electronic assemblies.
The device utilizes silver alloy contacts providing low contact resistance of 100mΩ to ensure efficient power switching with low wear. Maximum switching power capability is 2.8kVA with switching DC voltage up to 30V and AC voltage up to 277V.
With a coil resistance of 2.9kΩ and coil power consumption of only 200mW, the relay offers energy-efficient operation. The relay construction is plastic sealed, ensuring durability and environmental protection.
It is compliant with RoHS standards and includes VDE 0631 reinforced insulation certification, ensuring environmental friendliness and safety.
Common industrial applications for this power relay include automotive engine control systems, household appliances, industrial machinery, medical equipment, and telecommunication devices.
This relay supports high power switching with low coil power consumption. Wide temperature operating range from -40°C to 85°C. 10KV isolation between coil and contacts for enhanced safety. Compact subminiature design suitable for PCB mounting.
Silver alloy contacts ensure low resistance and high durability. RoHS compliant for environmental safety. Suitable for various industrial and commercial applications. Explore the Electronics & Electricals category at EnvMart to find more Power Relays, connectors, and related components from reliable brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay can handle a maximum switching current of 10A.
The dimensions of this model are 20.5mm in length, 7mm in width, and 15.3mm in height.
The relay operates with a coil voltage of 24V DC.
It operates within a temperature range from -40°C to 85°C.
This model features a single pole single throw (SPST) contact configuration.
The coil resistance of this relay is 2.9kΩ.
The maximum switching power capability is 2.8kVA.
The contacts are made of silver alloy, providing low contact resistance.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
The isolation voltage between the coil and contacts reaches 10kV.
The coil power consumption is 200mW, ensuring low power operation.
It is suitable for applications in automotive engines, household appliances, industrial machinery, medical devices, and telecommunication equipment.
