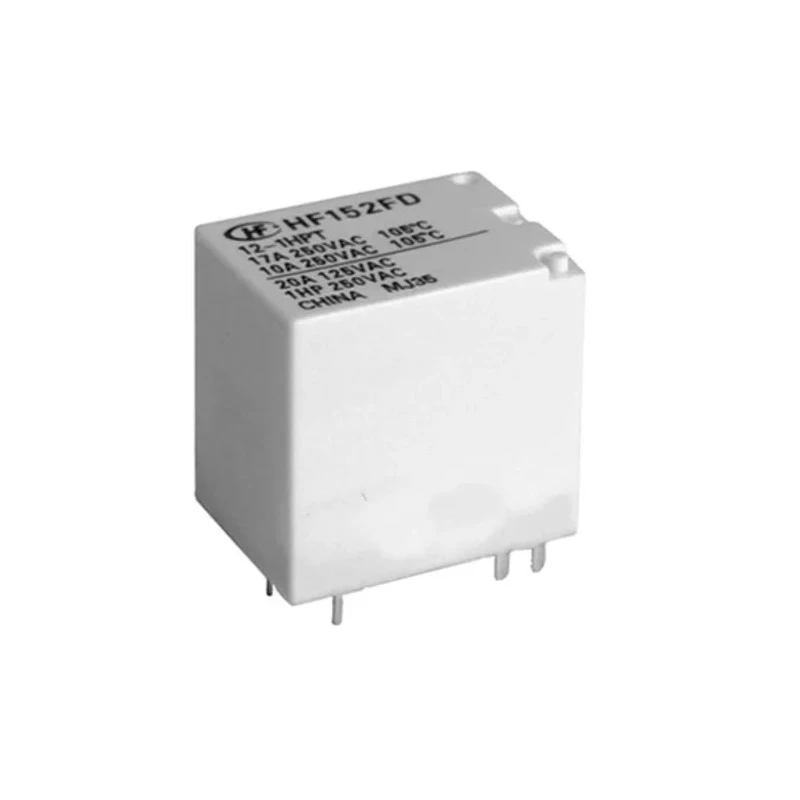

Hongfa Europe GMBH PCB Power Relay 5V DC Coil 17A Switching Current SPDT HF152FD/5-1ZTF(335)

Hongfa Europe GMBH HF152FD/5-1ZTF(335) PCB Power Relay is a high-quality single-pole double-throw (SPDT) relay specifically engineered for PCB mounting with a 5V DC coil voltage and capable of switching currents up to 17A. This relay provides reliable performance in demanding industrial, automation, and electronics applications where compact size and efficiency are critical.

Featuring a silver alloy contact construction, this relay ensures excellent electrical endurance and low contact resistance of 100 milliohms, contributing to long-lasting, stable switching operation. The relay operates safely within an ambient temperature range of -40°C to 105°C, guaranteeing consistent functionality across diverse environmental conditions.

Its compact footprint with dimensions of 21.2 mm length, 16 mm width, and 20.6 mm height makes it an ideal choice for space-saving PCB designs. The coil resistance of 70 ohms and a maximum coil power consumption of 360 mW allow for energy-efficient activation, reducing overall power draw in control circuits.

The relay is rated for switching power of up to 4.7 kVA and can withstand switching AC voltages up to 400V. This makes it suitable for controlling various industrial machinery, household appliances, telecommunication equipment, and automotive controls. The design meets RoHS environmental compliance standards, ensuring an eco-friendly choice for manufacturers.

Additional features include its high mechanical endurance rated for approximately 10 million switching cycles, and robustness against vibration and abrasion, enhancing operational reliability and lifespan. The isolation voltage between coil and contacts is 2.5 kV, providing safety in high-voltage environments.

Globally recognized for quality, this relay originates from China and serves as a trusted component in multiple sectors requiring precise and dependable switching capabilities. The relay features SPDT contact configuration ensuring versatile switching applications.

PCB mount type with PCB pin terminals allows easy integration into electronic boards. Operating temperature ranges from -40°C to 105°C for reliable performance in varying environments. Silver alloy contact material provides high electrical endurance and low contact resistance.

Compact dimensions measuring 21.2mm length, 16mm width, and 20.6mm height optimize board space. The coil resistance of 70 Ohms and coil power consumption of 360mW ensures low power usage. Switching power rated up to 4.7 kVA and switching AC voltage max 400V AC supports robust electrical loads.

Environmental friendly product compliant with RoHS standards. High mechanical endurance with approximately 10 million cycles and resistance to vibration and abrasion. Ideal for use in industrial machinery, automotive systems, household appliances, and telecommunications.
