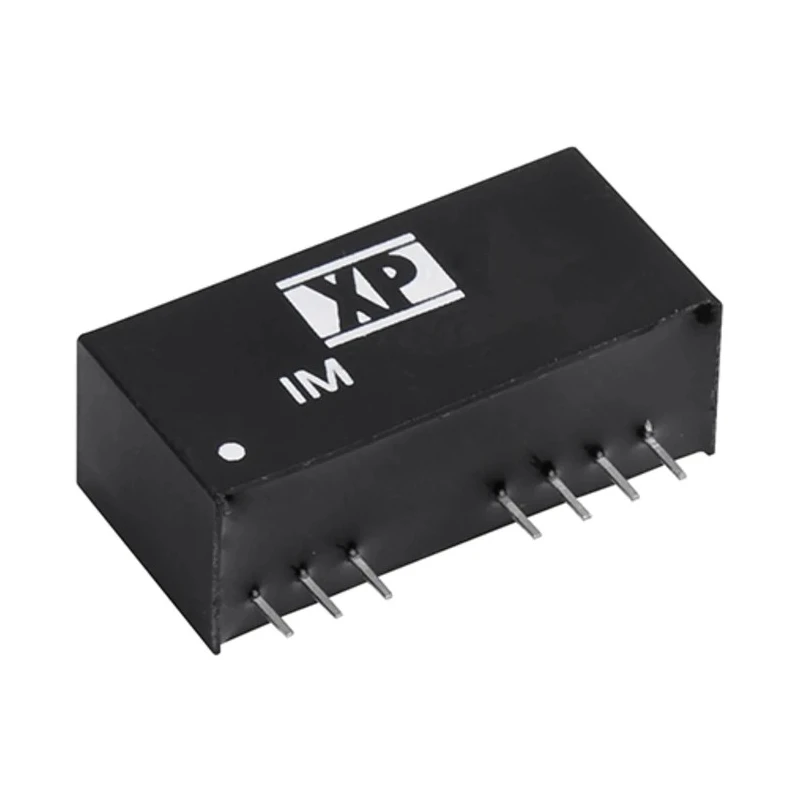

XP Power IM DC/DC Converter 3.3V DC 500mA 36V DC Input 9V Input 2W Through Hole SIP Package IM2403SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 75% |
| Length | 26mm |
| Model | IM2403SA |
| Depth | 12.5mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IM |
| Maximum Operating Temperature | +100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1200000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Supports input voltage range from 9 V to 36 V DC for versatile applications.
- Features through hole mounting in a SIP package for easy PCB integration.
- Provides 1500 VDC isolation ensuring safe and stable operation.
- High efficiency up to 75% reduces energy loss and heat generation.
- Operates reliably in temperatures from -40 °C to +100 °C.
- Compact dimensions of 26 mm length, 9.2 mm width, and 12.5 mm depth aid space-saving designs.
- Built-in continuous short circuit protection enhances device safety.
- Designed with an MTBF of 1,200,000 hours for prolonged operational reliability.
Product Description
The XP Power IM2403SA DC/DC Converter is a high-quality isolated power module delivering 3.3 V DC output at 500 mA with a maximum power rating of 2 W. This converter supports a wide input voltage range of 9 V to 36 V DC, making it suitable for a variety of electronic equipment and embedded systems.
Engineered for durability, the IM series offers continuous short circuit protection and remote on/off control, optimized for industrial and electronic component power supply applications. The SIP (Single Inline Package) through hole mount type allows straightforward assembly on printed circuit boards, facilitating efficient integration.
With an isolation voltage of 1500 VDC and an operating temperature range from -40 °C to +100 °C, this converter is robust for challenging environments. The design achieves up to 75% efficiency, reducing power loss and thermal stress, thereby extending the lifespan of connected devices.
The compact size with dimensions 26 mm length, 9.2 mm width, and 12.5 mm depth allows it to fit in space-constrained applications. The IM2403SA features 7 pins and a 4:1 input voltage ratio.
This product is manufactured in Taiwan, Province Of China, and is classified as new condition for professional and industrial use cases such as power supplies, control systems, and instrumentation equipment.
Supports input voltage range from 9 V to 36 V DC for versatile applications. Features through hole mounting in a SIP package for easy PCB integration. Provides 1500 VDC isolation ensuring safe and stable operation. High efficiency up to 75% reduces energy loss and heat generation.
Operates reliably in temperatures from -40 °C to +100 °C. Compact dimensions of 26 mm length, 9.2 mm width, and 12.5 mm depth aid space-saving designs. Built-in continuous short circuit protection enhances device safety.
Designed with an MTBF of 1,200,000 hours for prolonged operational reliability. Ideal for industrial, electronic component, and power supply applications. Explore this product and the full range of DC/DC Converters in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 3.3 V DC and a maximum output current of 500 mA.
It supports an input voltage range from 9 V to 36 V DC.
The converter achieves an efficiency of up to 75%, which helps reduce energy loss and heat generation.
The compact dimensions are 26 mm in length, 9.2 mm in width, and 12.5 mm in depth.
It provides an isolation voltage of 1500 VDC, ensuring safe and stable operation.
It operates reliably in temperatures ranging from -40 °C to +100 °C.
This model is designed with 7 pins.
The IM2403SA features through hole mounting in a SIP package for easy PCB integration.
The maximum output power is rated at 2 W.
It includes built-in continuous short circuit protection to enhance device safety.
The IM2403SA has a designed MTBF of 1,200,000 hours for prolonged operational reliability.
It is suitable for power supplies, control systems, and instrumentation equipment in industrial and electronic component applications.
