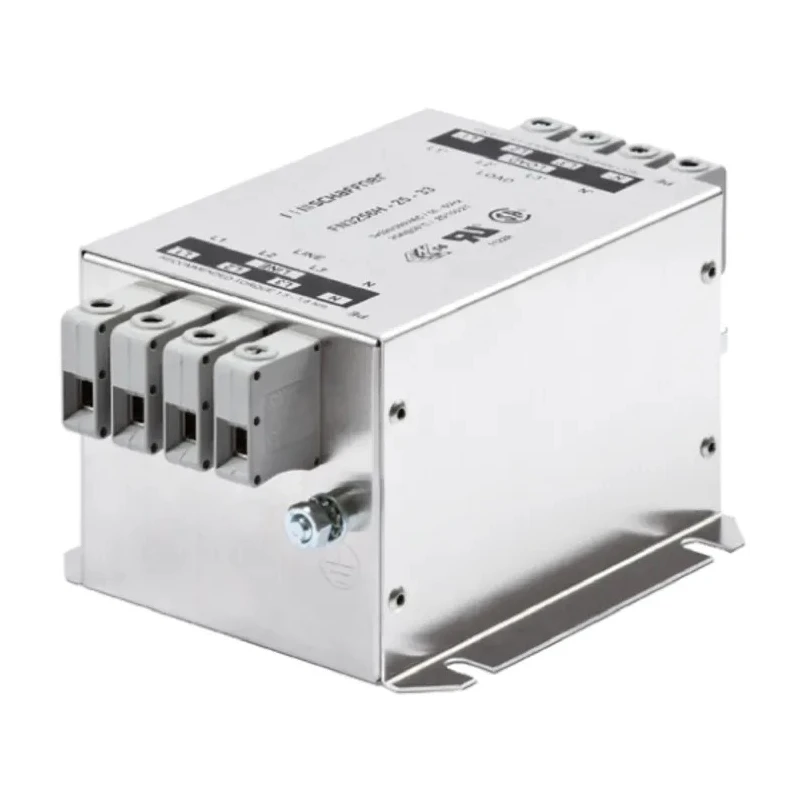

Schaffner Chassis Mount EMI Filter, Terminal Block, 3 Phase, 8 A, 480V AC, 60Hz FN3256
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 70mm |
| Length | 110mm |
| Model | FN3256 |
| Depth | 110mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3256 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1500kΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 8A |
| Number of Phases | 3 |
| Leakage Current | 1mA |
| Maximum Voltage | 480V ac |
| Termination Style | Terminal Block |
| Power Loss | 2.7W |
Key Features
- Compact and space-saving design ideal for installation in cabinets.
- Provides effective EMI filtering with low leakage current of 1mA.
- Features solid, touch-safe terminal block terminations.
- Operates reliably between temperatures -25°C to 100°C.
- Power loss is minimized at 2.7W for energy-efficient operation.
- Resistance rated at 1500kΩ ensuring stable performance.
- Depth and length of 110mm and height of 70mm fit tight installation spaces.
- Designed for 3 phase and neutral line filtering applications.
Product Description
Schaffner FN3256 chassis mount EMI filter, model FN3256, is a high-performance 3-phase EMI filter rated for 8 A maximum current and 480V AC operating voltage at 60Hz frequency. This filter is designed for mounting on chassis with touch-safe terminal blocks for secure wiring connections. It efficiently suppresses electromagnetic interference (EMI) in industrial electrical systems.
The FN3256 series features a compact, space-saving design with dimensions 110mm length, 110mm depth, and 70mm height, enabling installation within tight cabinet spaces. The filter supports low leakage current of 1mA and has a power loss of only 2.7W, ensuring energy-efficient operation and minimal heat generation.
Operating temperature range is from -25°C to 100°C, making the filter suitable for demanding industrial environments. The product's resistance is rated at 1500kΩ, supporting stable and reliable electrical performance.
Schaffner FN3256 EMI filters are widely used with variable speed drives, motor drives, frequency inverters, and servo motor systems to reduce interference and improve power quality in industrial automation and power electronics applications. Installation is quick and straightforward, allowing for easy mounting and maintenance.
Manufactured in Thailand, this product supports industrial, construction, HVAC, manufacturing, and automation system applications. Compact, space-saving design optimized for cabinet installation. Low leakage current of 1mA to comply with safety standards.
Solid, touch-safe Terminal Blocks provide reliable connections. Wide operating temperature range (-25°C to 100°C) for harsh environments. Efficient EMI attenuation for 3-phase power systems. Minimal power loss (2.7W) enhances energy efficiency.
Dimensions of 110mm x 110mm x 70mm for flexible installation. Ideal for variable speed drives and motor drive applications. Select from EnvMart's comprehensive range of EMI filters including Schaffner models for optimized power quality and interference reduction solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN3256 EMI filter has a maximum current rating of 8 A.
This model operates at a maximum voltage of 480V AC.
It operates reliably within a temperature range of -25°C to 100°C.
The FN3256 has a power loss of only 2.7W, ensuring energy-efficient operation.
This model is designed for chassis mounting, allowing for secure installation.
The leakage current for the FN3256 is rated at 1mA, which complies with safety standards.
The dimensions of this model are 110mm in length, 110mm in depth, and 70mm in height.
It features solid, touch-safe terminal block terminations for secure wiring connections.
This model is suitable for applications involving variable speed drives, motor drives, frequency inverters, and servo motor systems.
The resistance of this EMI filter is rated at 1500kΩ, supporting stable performance.
The FN3256 EMI filter is manufactured in Thailand.
This EMI filter supports 3 phases, making it suitable for 3-phase power systems.
