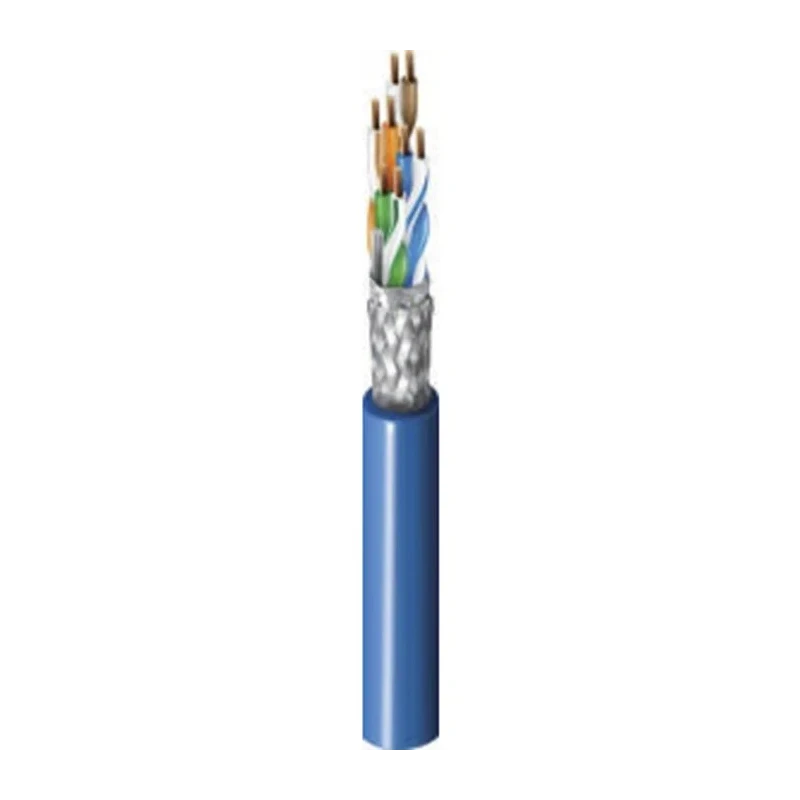

Belden Cat6a Shielded Screened Ethernet Cable Low Smoke Zero Halogen Jacket 72V Voltage, 500 m Length 2202ELW
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 72V |
| Brand | Belden |
| Model | Cat6a |
| Cable Length | 500m |
| Series | 2202ELW |
| Outside diameter | 7.5mm |
| Maximum Operating Temperature | 60°C |
| Number Of Cores | 8 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Low Smoke Zero Halogen |
| Shield Type | Shielded |
| Jacket Colour | Blue |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Screened/Unscreened | Screened |
| Conductor Type | Solid |
| LAN Category | Cat6a |
| Terminated/Unterminated | Unterminated |
| Article | 1756555 Referral:631687 |
Key Features
- Supports 10-gigabit networks with Cat6a LAN category specification.
- Features a 72V voltage rating enabling simultaneous data and power transmission.
- Constructed with solid copper conductors and 8 cores for high transmission quality.
- Jacket material is low smoke zero halogen, offering flame retardancy and reduced toxic fumes.
- Wide operating temperature range from -30°C to 60°C for harsh environments.
- Foam insulation, foil tape shielding, and metal braiding minimize crosstalk and electrical noise.
- Suitable for backbone networks, audio-visual communications, and security systems.
- Unterminated cable length of 500 meters facilitates long distance network runs.
Product Description
Belden 2202ELW Cat6a Ethernet Cable is engineered for industrial and commercial networking applications requiring high-speed, secure data transmission over extended distances. This cable features a shielded, screened twisted pair construction that ensures minimal signal interference and robust noise protection.
The cable's 72V voltage rating allows it to carry both data and power, simplifying installation and reducing the need for separate power lines. Its low smoke zero halogen (LSZH) jacket enhances fire safety by limiting smoke and toxic fumes during combustion, making it ideal for indoor installations where fire safety is critical.
The 8 solid copper cores are insulated with foam and foil tape shielding, supplemented by metal braiding for grounding noise. This design is compliant with prominent industrial standards including ANSI/TIA/EIA 568-B.2-1 and ISO/IEC 11801, ensuring compatibility and performance across modern networking infrastructures.
The cable is suitable for backbone networks, audio-visual communications, and security systems, with a broad temperature operating range of -30°C to +60°C to withstand harsh environments. The 500-meter length supports long network runs, such as core cabling in commercial buildings and industrial facilities.
Supports 10-gigabit networks with Cat6a LAN category specification. 72V voltage rating enables combined data and power transmission. Solid copper conductors with foam insulation and foil tape shielding. Metal braiding grounds noise for enhanced signal integrity.
Low Smoke Zero Halogen blue jacket provides flame retardancy and reduces toxic emissions. Wide operating temperature range from -30°C to 60°C. Complies with ANSI/TIA/EIA 568-B.2-1, EN 50173-1, IEC 60332, and ISO/IEC 11801 standards.
Unterminated cable length of 500 meters. Outside diameter of 7.5 mm for easy installation.
This cable is designed for use in industrial, commercial, and institutional environments including network backbones, audio-visual setups, and security installations where reliable, high-speed data transmission is essential. The LSZH jacket improves safety compliance in occupied spaces.
EnvMart offers this Belden Cat6a Ethernet Cable as a dependable solution for high-performance networking needs. Explore related networking cables and accessories in our Electronics & Electricals Wires & Cables Ethernet Cable catalog section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this Ethernet cable is 72V, allowing it to transmit both data and power simultaneously.
This model has an unterminated cable length of 500 meters, suitable for long distance network runs.
It features solid copper conductors, which are designed to provide high transmission quality.
The cable operates within a temperature range of -30°C to +60°C, making it suitable for harsh environments.
The jacket is made from Low Smoke Zero Halogen (LSZH) material, which enhances fire safety by reducing smoke and toxic fumes during combustion.
This cable contains 8 cores, which contribute to its ability to support high-speed data transmission.
It complies with ANSI/TIA/EIA 568-B.2-1, EN 50173-1, IEC 60332, and ISO/IEC 11801 standards, ensuring compatibility and performance across modern networking infrastructures.
The cable features shielded and screened twisted pair construction, which minimizes signal interference and provides robust noise protection.
The outside diameter of this Ethernet cable is 7.5 mm, facilitating easy installation.
It is suitable for backbone networks, audio-visual communications, and security systems, where reliable, high-speed data transmission is essential.
The insulation consists of foam and foil tape shielding, supplemented by metal braiding for grounding noise, enhancing signal integrity.
The Belden Cat6a Ethernet cable is manufactured in Hungary.
