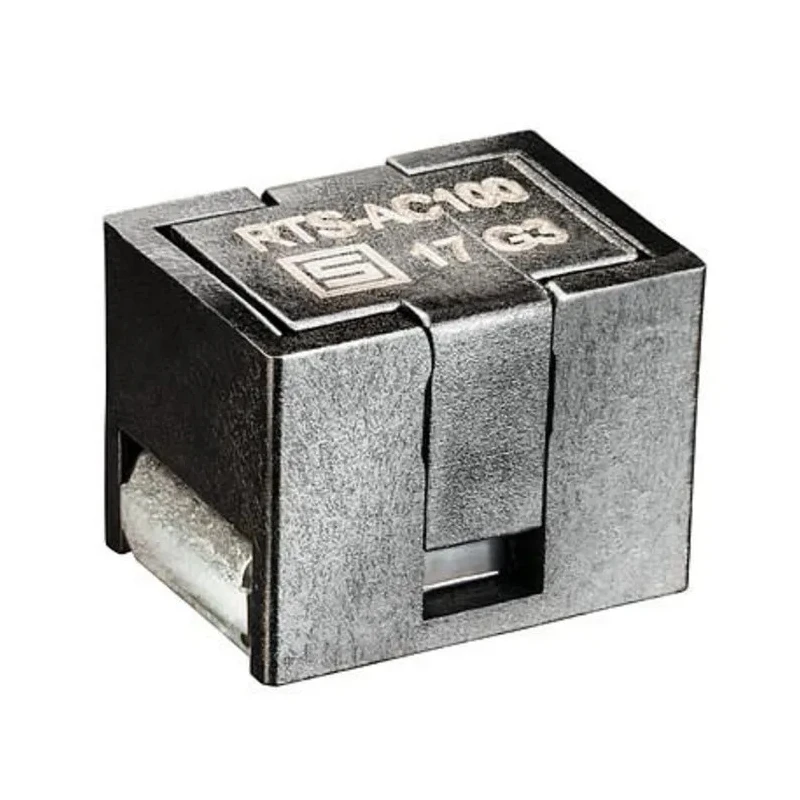

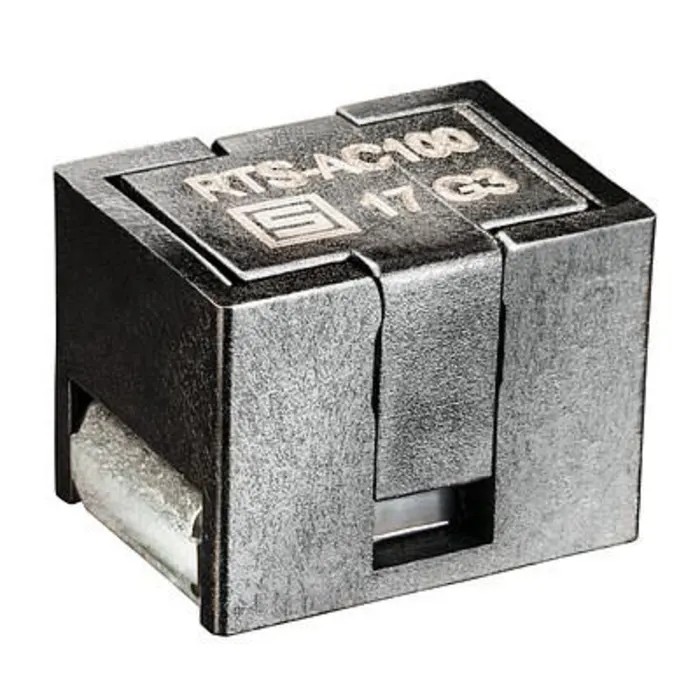

Schurter Thermal Circuit Breaker Surface Mount 100mA Current Rating 3-104-513
Specifications
| Country of Origin | Switzerland |
|---|---|
| Range | RTS |
| Brand | Schurter |
| Height | 8.8mm |
| Depth | 6.6mm |
| Width | 6.5mm |
| Mount Type | Surface |
| Current Rating | 100mA |
| Series | RTS |
| Industrial | Battery Protection, Power supplies, Lighting ballasts, H-Bridge circuits, Motor drivers |
| Terminal type | Tab |
| Breaking Capacity | 400A |
| Standards/Approvals | RoHS, REACH, IECUL 60950 |
| Rated DC Voltage | 60V dc |
| Tripping Mechanism | Thermal |
| Break Time | Medium |
| Automotive | Cooling fan applications, ABS power steering, PTC heaters, HVAC, Glow plugs, Diesel fuel heaters |
Key Features
- This thermal circuit breaker is surface mounted for easy installation.
- Provides reliable thermal tripping mechanism to safeguard electrical circuits.
- Breaking capacity rated at 400A for robust protection.
- Rated for DC voltage up to 60V DC.
- Complies with RoHS, REACH, and IECUL 60950 standards.
- Perfect for automotive and industrial applications requiring high current protection.
- Manufactured in Switzerland ensuring quality and reliability.
Product Description
Schurter 3-104-513 thermal circuit breaker is a compact surface mount device featuring a thermal tripping mechanism. It is designed to provide overcurrent protection for electronic circuits, particularly for use with power semiconductors like MOSFETs, IGBTs, Triacs, and SCRs.
This breaker has a current rating of 100mA and a breaking capacity of 400A, suitable for demanding applications. Its compact form factor includes a width of 6.5mm, height of 8.8mm, and depth of 6.6mm, allowing integration into space-constrained designs.
The 3-104-513 model is rated for DC voltages up to 60V and features a thermal tripping mechanism that provides medium break time protection to prevent damage from thermal overloads.
The product complies with key safety and environmental standards including RoHS, REACH, and IECUL 60950, ensuring it meets international quality and environmental requirements.
Applications span automotive systems such as cooling fans, ABS power steering, PTC heaters, HVAC units, glow plugs, and diesel fuel heaters. Industrial uses include battery protection, power supplies, lighting ballasts, H-bridge circuits, and motor drivers.
Manufactured in Switzerland, the breaker ensures high-quality standards and durability for industrial and automotive electronic protection needs. Surface mount thermal circuit breaker for overcurrent protection. 100mA current rating with 400A breaking capacity.
Compact size with dimensions 6.5mm x 8.8mm x 6.6mm. Rated DC voltage up to 60V with medium break time. Compliant with RoHS, REACH, IECUL 60950 standards. Suitable for automotive and industrial protection applications. Swiss made with patented design for thermal runaway protection.
Explore more products in the Thermal Circuit Breaker category at EnvMart for advanced circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 100mA, making it suitable for low current applications.
It features a breaking capacity of 400A, providing robust protection for electrical circuits.
The breaker is rated for DC voltages up to 60V, allowing it to be used in various applications.
This unit has dimensions of 6.5mm in width, 8.8mm in height, and 6.6mm in depth, making it compact for integration into designs.
It is designed for surface mounting, facilitating easy installation in various setups.
It features a thermal tripping mechanism, which provides medium break time protection against thermal overloads.
It complies with RoHS, REACH, and IECUL 60950 standards, ensuring it meets international safety and environmental requirements.
Applications include automotive systems like cooling fans and HVAC units, as well as industrial uses such as battery protection and motor drivers.
It features a tab terminal type, which is common for easy connections in circuit designs.
This product is manufactured in Switzerland, ensuring adherence to high-quality standards.
This model belongs to the RTS series, which is designed for reliable thermal protection in electronic circuits.
