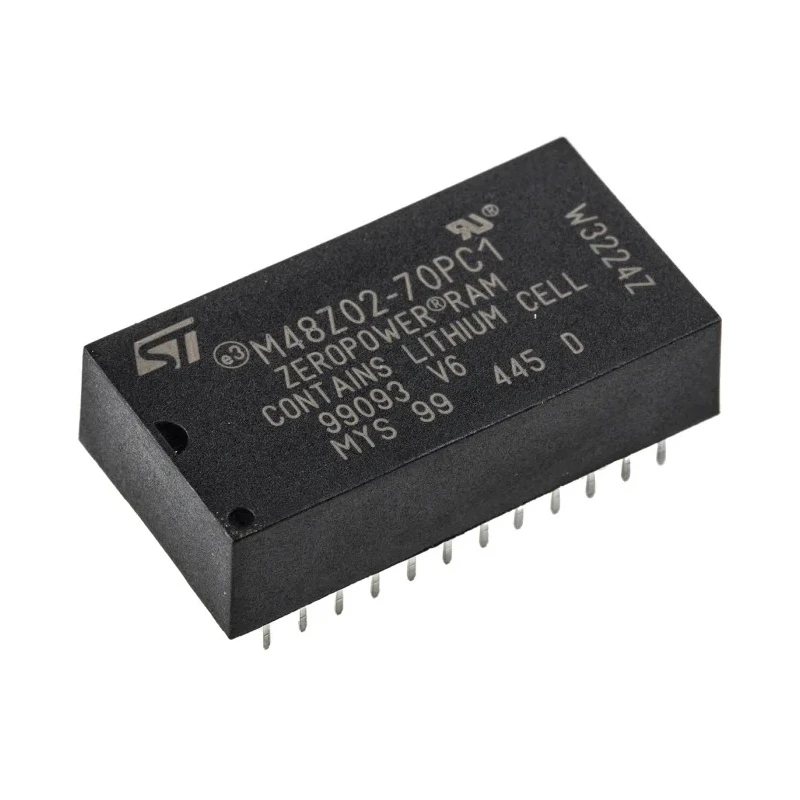

STMicroelectronics 16 kB 70 ns NVRAM 24-Pin PCDIP M48Z02-70PC1

STMicroelectronics M48Z02-70PC1 is a 16 kB non-volatile RAM (NVRAM) device featuring a 70 ns maximum random access time with a 24-pin PCDIP through hole mounting package. It integrates ZEROPOWER® technology combining low-power SRAM with power-fail control and a long-life lithium battery to retain data integrity without external power.

This NVRAM supports a parallel interface type with an 8-bit data bus width, organised as 2K by 8 bits memory size. It operates within an industrial temperature range from 0°C to 70°C and a supply voltage range between 4.75 V and 5.5 V, drawing 80 mA supply current under typical conditions.

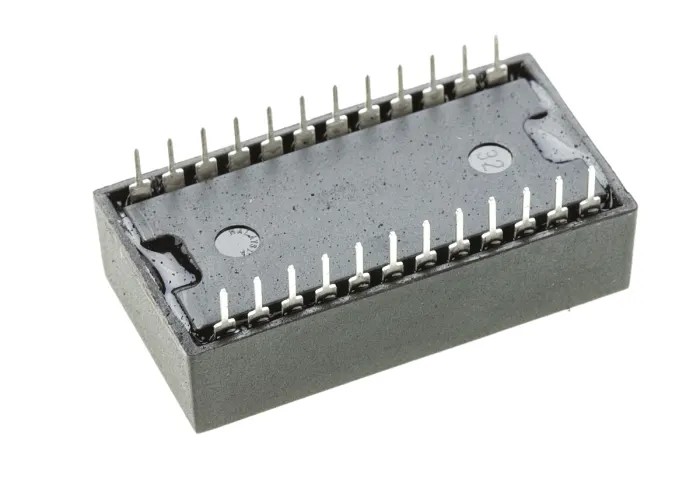

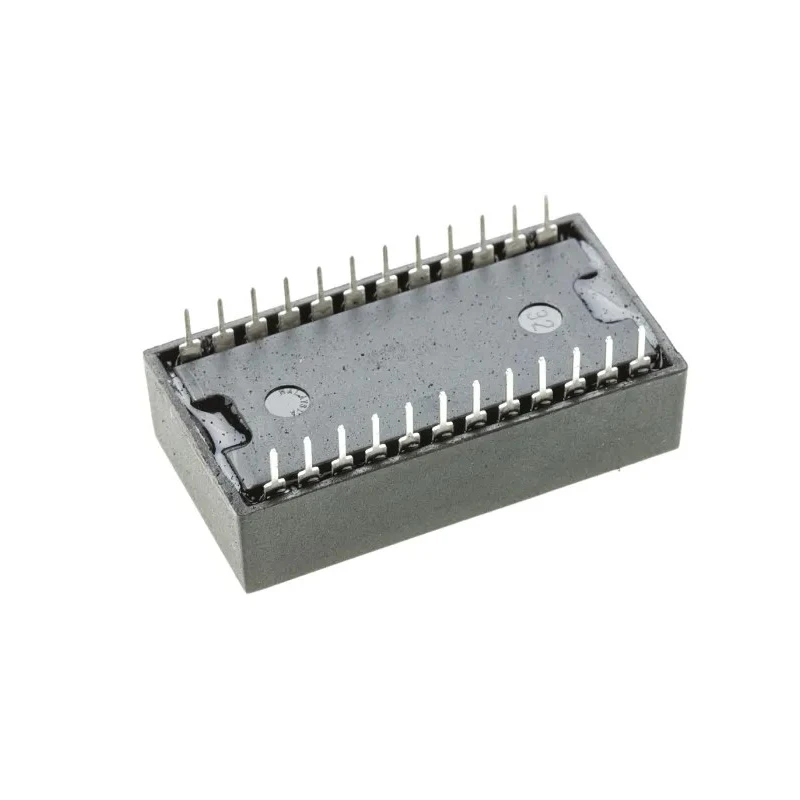

The physical package dimensions are 34.8 mm in length, 18.34 mm in width, and 8.89 mm in height, facilitating standard through hole PCB mounting. Its 24 pins provide ample connection interface compatible with parallel memory circuits.

This product is ideal for industrial semiconductor, electronics, and embedded memory applications requiring reliable static RAM with non-volatile characteristics. It serves critical roles in industrial automation, telecommunications, and embedded systems requiring data retention during power loss.

Memory size of 16 kB organised as 2K x 8 bit provides efficient data storage. Maximum random access time of 70 ns ensures fast data retrieval. Operates within temperature range of 0°C to 70°C, suitable for various environments.

Through hole mounted device with 24 pins in a PCDIP package. Low supply current of 80 mA with supply voltage between 4.75 V to 5.5 V. Data bus width of 8 bits supports parallel data communication. Package dimensions: length 34.8 mm, width 18.34 mm, height 8.89 mm.

Designed without automotive standard compliance. Explore comprehensive options and solutions in the Semiconductors category, including Memory Chips, at EnvMart for advanced electronics projects.
