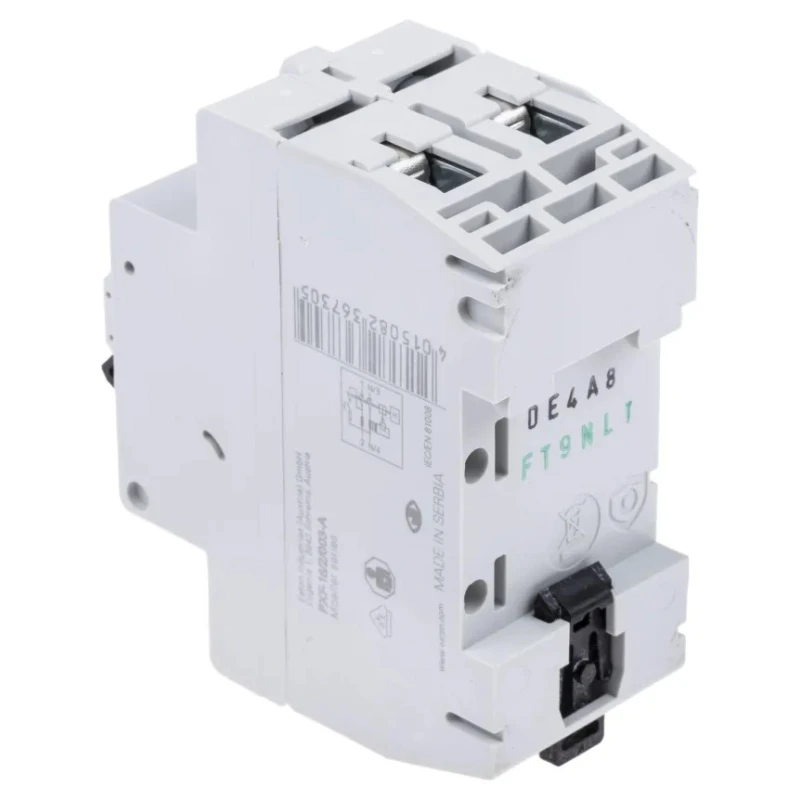

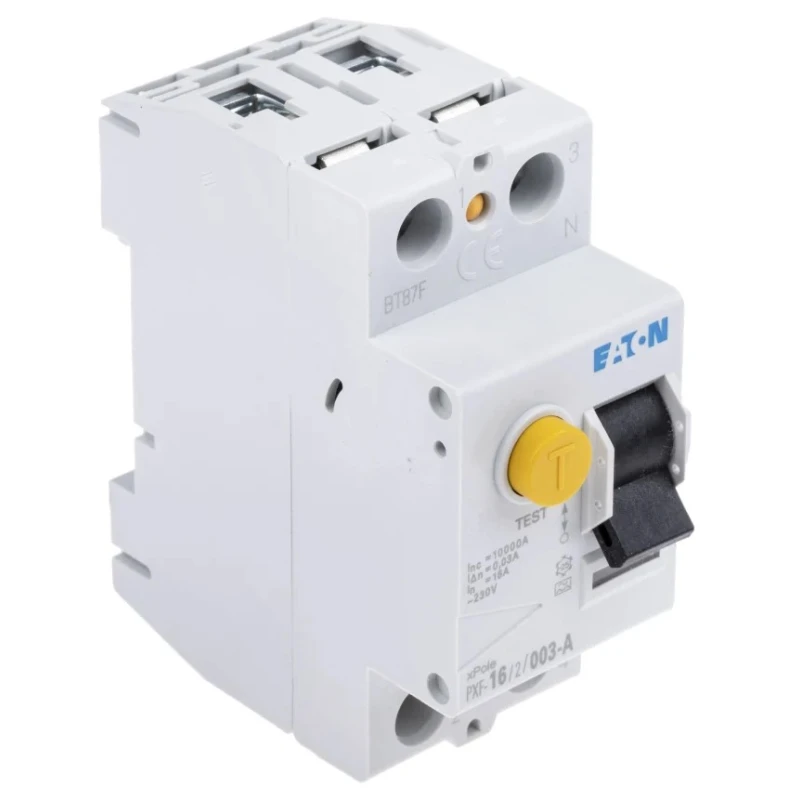

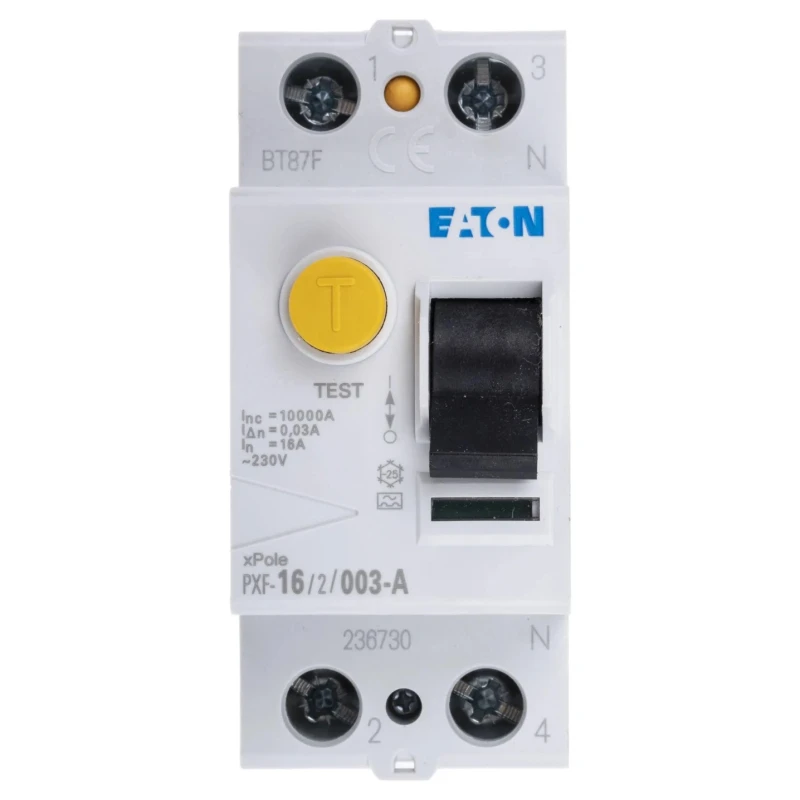

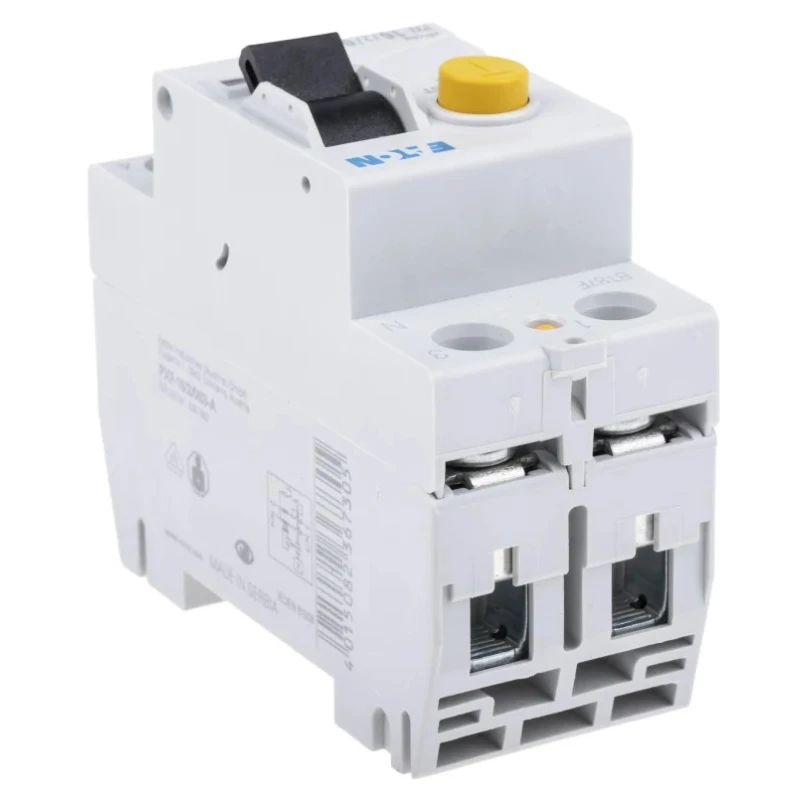

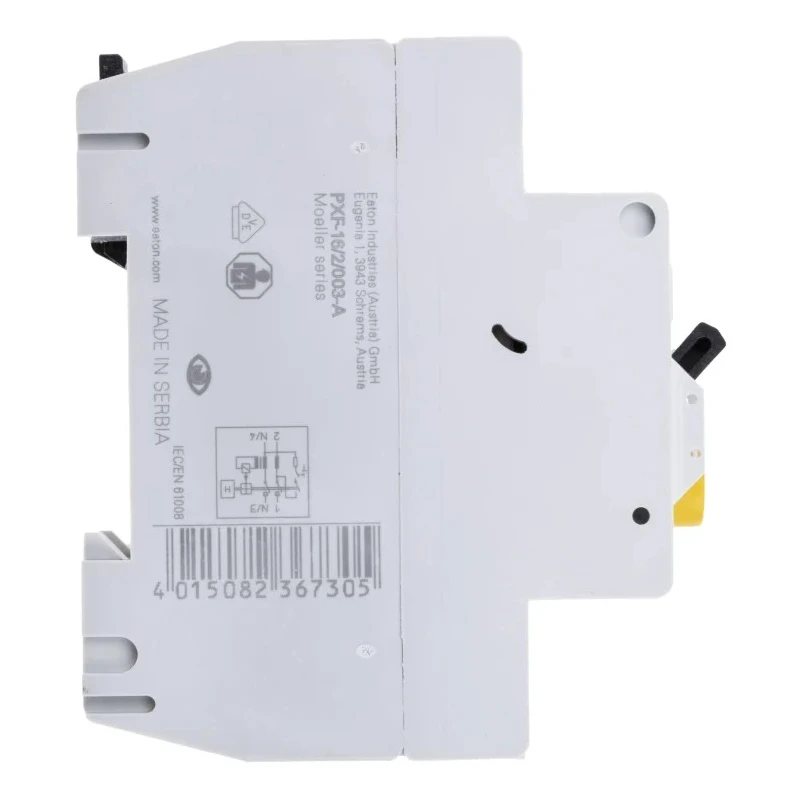

Eaton Residual Current Circuit Breaker 16A 1-Pole 30mA Type A 500A Breaking Capacity 230V AC 236730 PXF-16/2/003-A
Specifications
| Country of Origin | Serbia |
|---|---|
| Range | PXF |
| Brand | Eaton |
| Height | 80mm |
| Model | 236730 PXF-16/2/003-A |
| Depth | 45mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | PXF-A |
| Terminal type | Quick Connect |
| Breaking Capacity | 500A |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 61008, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type A |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | Type A |
Key Features
- Current rating of 16A supports residential and commercial applications.
- 1-pole design with Type A tripping characteristic supports AC and pulsating DC power supplies.
- Breaking capacity of 500A ensures high fault current interruption.
- Compact dimensions of 80mm height, 45mm width, and 45mm depth for space-saving installation.
- Mounts easily on DIN rail with quick connect terminals for fast installation.
- Lever reset actuator enables simple and quick circuit restoration.
- Complies with IEC/EN 61008 standards and RoHS directive for safety and environmental compliance.
- IP20 rating provides touch protection against tools and fingers over 12mm.
Product Description
Eaton 236730 PXF-16/2/003-A Residual Current Circuit Breaker is a high-quality device designed for fault current detection and circuit protection in residential and commercial electrical installations. Rated at 16 amperes with a 1-pole configuration, this breaker features a trip sensitivity of 30 milliamperes and a tripping characteristic of Type A, allowing it to detect both AC and pulsating DC residual currents.
The unit has a compact form factor with dimensions of 80mm in height and 45mm in both width and depth, making it suitable for DIN rail mounting with convenient quick connect terminals. The lever reset actuator provides easy manual reset after tripping, enhancing usability during maintenance or fault recovery.
This circuit breaker boasts a high breaking capacity of 500 amperes to securely interrupt dangerous fault currents instantly, minimizing risk and damage. Its IP20 touch-proof rating ensures protection against accidental contact with live components during operation and installation.
Designed to adhere strictly to IEC/EN 61008 standards and compliant with the RoHS environmental directive, the device maintains high safety, reliability, and environmental responsibility.
Ideal for use in residential and commercial buildings, Eaton's PXF-A Series ensures prompt and reliable earth leakage protection for electrical circuits, preventing electric shock hazards and enhancing overall system safety.
Current rating of 16A suits many residential and commercial applications. Type A tripping characteristic works with AC and pulsating DC power supplies. Breaking capacity of 500A for effective fault clearing. Compact 80 x 45 x 45 mm size for easy DIN rail mounting.
Quick connect terminals enable fast installation. Lever reset actuator for simplified reset operations. IP20 touch protection rating ensures safety from accidental contact. Compliance with IEC/EN 61008 and RoHS standards guarantees quality and safety.
Choose Eaton Residual Current Circuit Breaker for dependable earth leakage detection and enhanced electrical safety in your installations. Explore more options and related products in the Circuit Breakers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, making it suitable for various residential and commercial applications.
It has a breaking capacity of 500A, which allows for effective interruption of high fault currents.
This unit features a Type A tripping characteristic, enabling it to detect both AC and pulsating DC residual currents.
The compact dimensions are 80mm in height, 45mm in width, and 45mm in depth, allowing for space-saving installation.
It mounts easily on a DIN rail and features quick connect terminals for fast installation.
The trip sensitivity is set at 30mA, providing effective earth leakage protection.
The rated AC voltage for this circuit breaker is 230V AC.
It employs a lever reset actuator, which simplifies the process of restoring the circuit after a trip.
It complies with IEC/EN 61008 standards and the RoHS directive for safety and environmental compliance.
The IP20 rating provides touch protection against accidental contact with live components.
This circuit breaker is part of the PXF-A series from Eaton.
