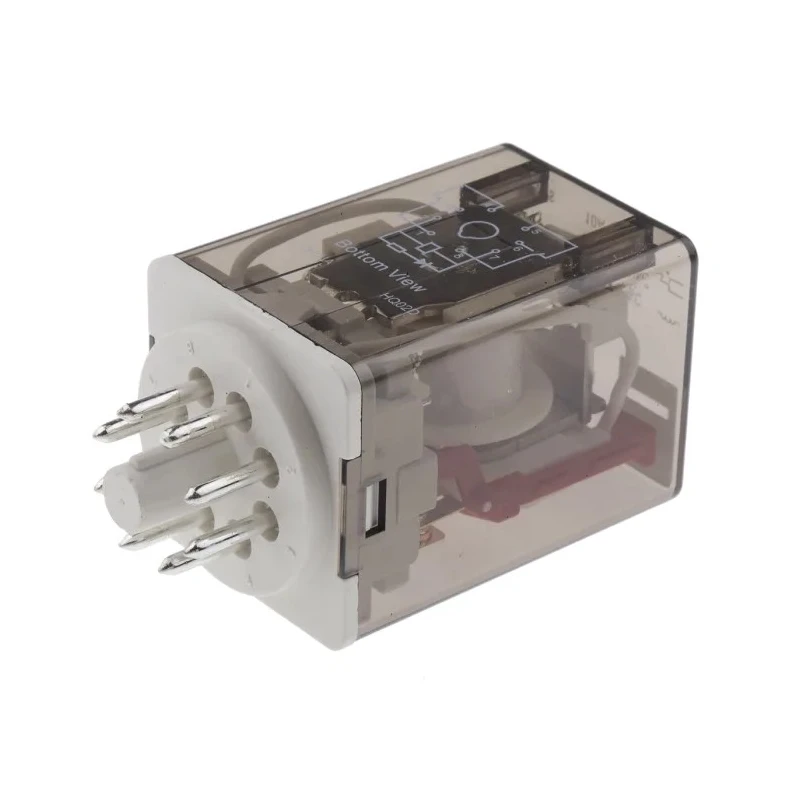

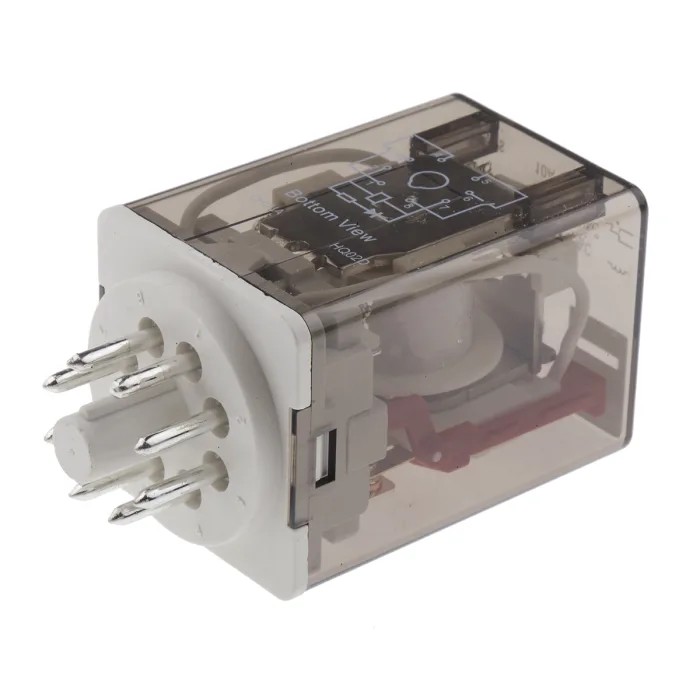

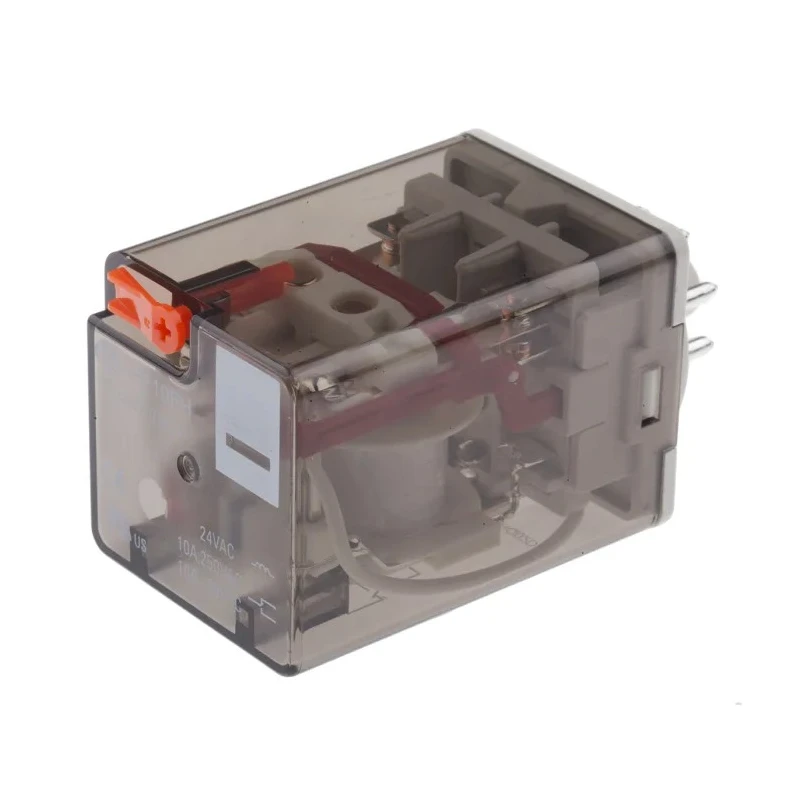

Hongfa Europe GMBH Power Relay DPDT 24V AC Coil, 10A Switching Current, 300W Switching Power HF10FH024A2ZDT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 55.3mm |
| Length | 35.5mm |
| Model | HF10FH024A2ZDT |
| Width | 35.5mm |
| Contact Material | Silver Alloy |
| Series | HF10FH |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, cULus |
| Coil Resistance | 70Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 2.7W |
| Switching Power | 300W |
Key Features
- The relay supports a maximum switching power of 300W, suitable for various industrial applications.
- Designed with a plug-in terminal type for easy installation and maintenance.
- Operates reliably within a temperature range from -40°C to 55°C.
- Compact dimensions of 55.3mm height, 35.5mm width, and 35.5mm length enable space-efficient mounting.
- Constructed with silver alloy contacts ensuring low contact resistance of 100mΩ for efficient conductance.
- Coil resistance is rated at 70Ω with a coil power consumption of 2.7W.
- Certified and compliant with CE and cULus standards for safety and quality assurance.
- Suitable for demanding electrical and automation projects requiring robust power relays.
Product Description
Hongfa Europe GMBH HF10FH024A2ZDT power relay is a dependable DPDT (Double Pole Double Throw) device engineered for robust electrical switching operations with a coil voltage rating of 24V AC and a switching current capacity of 10A. This relay supports a switching power of 300W, making it ideal for industrial automation, electrical control systems, signal conditioning, and other demanding electrical applications.
The relay features a plug-in terminal type which facilitates easy installation and replacement, enhancing system maintainability. It is designed to operate effectively across a temperature range from a minimum of -40°C to a maximum of 55°C, ensuring reliable performance under diverse environmental conditions.
Dimensionally compact with a height of 55.3mm, width of 35.5mm, and length of 35.5mm, it fits well into standard mounting assemblies. Contacts are made from premium silver alloy, offering minimal contact resistance of 100 milliohms to maintain efficient electrical conductivity and minimize losses.
The coil resistance of 70 ohms and coil power consumption of 2.7 watts underline its energy efficiency and suitability for continuous operation. The relay complies with CE and cULus certifications, assuring users of its adherence to international safety and quality standards.
This HF10FH series miniature high power relay from Hongfa Europe GMBH is tailored for industrial, laboratory, construction, and commercial electrical systems requiring robust and durable power switching components.
The relay supports a maximum switching power of 300W, suitable for various industrial applications. Designed with a plug-in terminal type for easy installation and maintenance. Operates reliably within a temperature range from -40°C to 55°C.
Compact dimensions of 55.3mm height, 35.5mm width, and 35.5mm length enable space-efficient mounting. Constructed with silver alloy contacts ensuring low contact resistance of 100mΩ for efficient conductance. Coil resistance is rated at 70Ω with a coil power consumption of 2.7W.
Certified and compliant with CE and cULus standards for safety and quality assurance. Suitable for demanding electrical and automation projects requiring robust power relays. Explore more Power Relay solutions and automation components on EnvMart for your industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching power of this power relay is 300W, making it suitable for various industrial applications.
The coil voltage rating for this model is 24V AC.
This relay has a switching current capacity of 10A.
It operates reliably within a temperature range from -40°C to 55°C.
The dimensions of this power relay are 55.3mm in height, 35.5mm in width, and 35.5mm in length.
This model features a plug-in terminal type, facilitating easy installation and maintenance.
The contacts are constructed from silver alloy, ensuring low contact resistance of 100mΩ.
The coil resistance is rated at 70Ω.
It is certified and compliant with CE and cULus standards for safety and quality assurance.
The coil power consumption for this model is 2.7W.
The contact configuration of this relay is DPDT (Double Pole Double Throw).
The maximum switching AC voltage for this relay is 250V.
