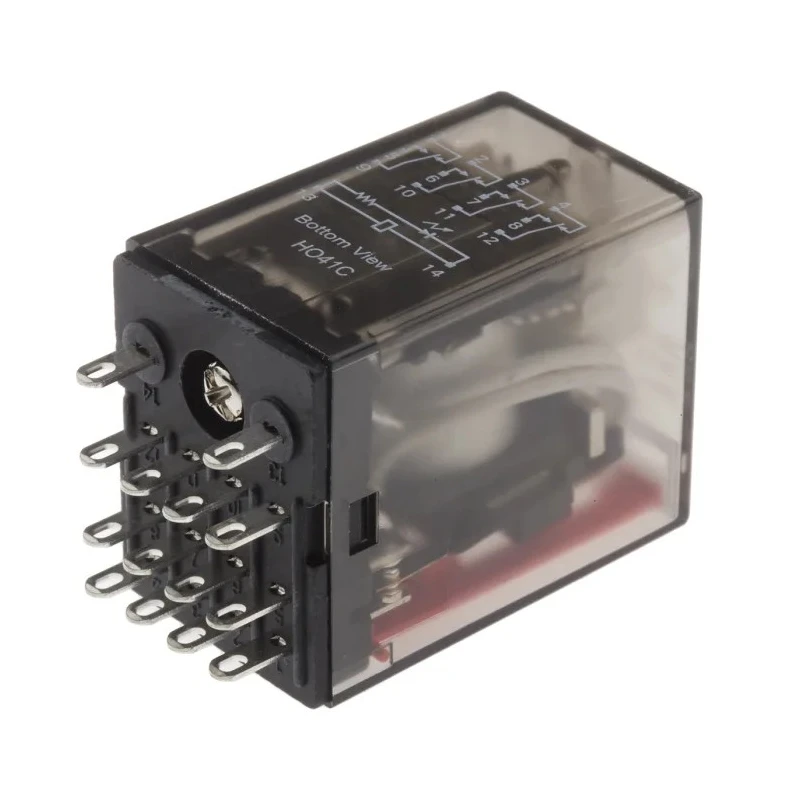

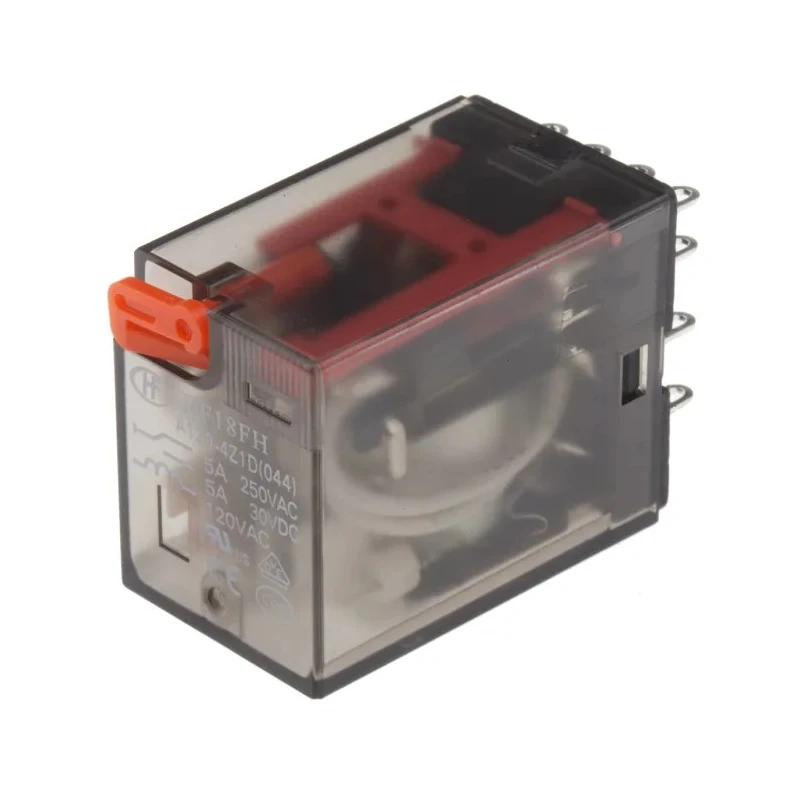

Hongfa Europe GMBH Power Relay, 4PDT Contact Configuration, 120V AC Coil Voltage, 5A Switching Current HF18FHA1204Z1D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 36mm |
| Length | 28mm |
| Model | HF18FHA1204Z1D |
| Width | 21.5mm |
| Mount Type | Chassis |
| Contact Material | Silver Alloy |
| Series | HF18FH |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, cULus |
| Coil Resistance | 4.6kΩ |
| Coil Voltage | 120V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 1.8W |
| Switching Power | 150W |
Key Features
- Designed for chassis mount applications with plug-in terminal type.
- Operates within a temperature range of -40°C to 70°C.
- Switching capabilities include 30V DC and 250V AC at 150W power.
- Features silver alloy contact material with low 100mΩ contact resistance.
- Built for industrial reliability with standards CQC and cULus compliance.
- Coil resistance of 4.6kΩ and coil power consumption of 1.8W.
Product Description
Hongfa Europe GMBH HF18FHA1204Z1D power relay is a high-quality chassis mount relay designed for industrial and automation applications requiring reliable switching performance. It features a 4PDT contact configuration suitable for complex circuit control tasks.
The relay coils operate at 120V AC voltage with a power consumption of 1.8W, ensuring efficient operation. Its switching current rating of 5A allows safe handling of moderate electrical loads with switching power up to 150W.
Operating temperatures range from -40°C to 70°C, making it suitable for harsh environments and industrial setups. The relay features silver alloy contacts with a contact resistance of 100mΩ, ensuring minimal signal loss and optimal conductivity.
Physical dimensions are compact, with a height of 36mm, length of 28mm, and width of 21.5mm, enabling flexible installation in control panels. The plug-in terminal design facilitates easy replacement and maintenance.
Certified under CQC and cULus standards, this relay meets international safety and quality norms, suitable for electronics, automation, electrical control panels, and manufacturing equipment.
Designed for chassis mount applications with plug-in terminal type. Operates within a temperature range of -40°C to 70°C. Switching capabilities include 30V DC and 250V AC at 150W power. Features silver alloy contact material with low 100mΩ contact resistance.
Built for industrial reliability with standards CQC and cULus compliance. Compact dimensions: 36mm height, 28mm length, and 21.5mm width. Coil resistance of 4.6kΩ and coil power consumption of 1.8W.
This Power Relay is ideal for industrial automation, manufacturing machinery, HVAC control systems, and other electrical control applications requiring precise and dependable switching. Browse EnvMart for a wide selection of relays and electrical components for industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 120V AC.
This model has a maximum switching power of 150W.
It features a 4PDT contact configuration, suitable for complex circuit control tasks.
The operating temperature range for this relay is from -40°C to 70°C.
The switching current rating of this relay is 5A.
The relay has a height of 36mm, a length of 28mm, and a width of 21.5mm.
This relay uses a plug-in terminal type for easy replacement and maintenance.
The contacts are made of silver alloy, which ensures minimal signal loss.
It is certified under CQC and cULus standards, meeting international safety and quality norms.
The coil resistance of this model is 4.6kΩ.
The contact resistance is 100mΩ, ensuring optimal conductivity.
This relay is suitable for industrial automation, manufacturing machinery, and HVAC control systems.
